TSI Instruments 9565-P, 9565-X-NB, 9565-X, 9565-P-NB Operation And Service Manual

VELOCICALC®

AIR VELOCITY METER

MODEL 9565 SERIES

OPERATION AND SERVICE MANUAL

P/N 6004851, REVISION F

JUNE 2018

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Copyright

TSI Incorporated / 2011-2018 / All rights reserved.

Address

TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA

Fax No.

[phone]

Limitation Of Warranty And Liability (effective February 2015)

Seller warrants the goods, excluding software, sold hereunder, under normal use and
service as described in the operator's manual, to be free from defects in workmanship
and material for 24 months, or if less, the length of time specified in the operator's
manual, from the date of shipment to the customer. This warranty period is inclusive of
any statutory warranty. This limited warranty is subject to the following exclusions and
exceptions:

a. Hot-wire or hot-film sensors used with research anemometers, and certain other

components when indicated in specifications, are warranted for 90 days from the date
of shipment;

b. Carbon monoxide (CO) Electro-chemical sensors are warranted for 12 months from

the date of shipment.

c. Pumps are warranted for hours of operation as set forth in product or operator’s

manuals;

d. Parts repaired or replaced as a result of repair services are warranted to be free from

defects in workmanship and material, under normal use, for 90 days from the date of
shipment;

e. Seller does not provide any warranty on finished goods manufactured by others or on

any fuses, batteries or other consumable materials. Only the original manufacturer's
warranty applies;

f. This warranty does not cover calibration requirements, and seller warrants only that

the instrument or product is properly calibrated at the time of its manufacture.
Instruments returned for calibration are not covered by this warranty;

g. This warranty is VOID if the instrument is opened by anyone other than a factory

authorized service center with the one exception where requirements set forth in the
manual allow an operator to replace consumables or perform recommended
cleaning;

h. This warranty is VOID if the product has been misused, neglected, subjected to

accidental or intentional damage, or is not properly installed, maintained, or cleaned
according to the requirements of the manual. Unless specifically authorized in a
separate writing by Seller, Seller makes no warranty with respect to, and shall have no
liability in connection with, goods which are incorporated into other products or
equipment, or which are modified by any person other than Seller.

The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS
stated herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR

PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE. WITH RESPECT TO
SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST INFRINGEMENT,
SAID WARRANTY IS LIMITED TO CLAIMS OF DIRECT INFRINGEMENT AND
EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS.
BUYER’S EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE
PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S
OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS.

TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER
OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,

i

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS
BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR
OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE
REFUND OF THE PURCHASE PRICE, OR, AT THE OPTION OF SELLER, THE
REPAIR OR REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE,
SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO
DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO
EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS
INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR
INSTALLATION, DISMANTLING OR REINSTALLATION COSTS OR CHARGES. No
Action, regardless of form, may be brought against Seller more than 12 months after a
cause of action has accrued. The goods returned under warranty to Seller's factory
shall be at Buyer's risk of loss, and will be returned, if at all, at Seller's risk of loss.

Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY
AND LIABILITY, which contains the complete and exclusive limited warranty of Seller.
This LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or
its terms waived, except by writing signed by an Officer of Seller.

Service Policy

Knowing that inoperative or defective instruments are as detrimental to TSI as they are
to our customers, our service policy is designed to give prompt attention to any
problems. If any malfunction is discovered, please contact your nearest sales office or
representative, or call Customer Service department at [phone] (USA) or (1)
651-490-2811 (International).

ii

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

CONTENTS

CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION ............. 1

Bluetooth® Safety and Compliance................................................. 1

CHAPTER 2 SETTING-UP ................................................................. 5

Supplying Power to the Model 9565 Series .................................... 5

Installing the Batteries ............................................................... 5

DIP Switch Settings ................................................................... 5

Using the AC Adapter ................................................................ 6

Connecting Ventilation or IAQ Probes ............................................ 7

Using the Telescoping Thermoanemometer Probes ...................... 7

Extending the Probe .................................................................. 7

Retracting the Probe .................................................................. 7

Using the Pressure Ports (9565-P) ................................................. 8

Connecting the Static Pressure Probe ...................................... 8

Connecting an Optional Pitot Probe or Airflow (straight

pitot) Probe ............................................................................ 9

Thermocouple Ports ..................................................................... 10

Connecting the Thermocouples .............................................. 10

Connecting the Optional Bluetooth Portable Printer Device

(Models 9565-P and 9565-X only) ............................................. 11

Connecting to a Computer ............................................................ 11

CHAPTER 3 OPERATION ............................................................... 13

Keypad Functions ......................................................................... 13

Common Terms ............................................................................ 14

Menus ........................................................................................... 15

ZERO PRESSURE ............................................................................. 15

DISPLAY SETUP ............................................................................... 16

SETTINGS ....................................................................................... 17

FLOW SET UP .................................................................................. 17

VOC SETUP ..................................................................................... 19

ACTUAL/STANDARD SETUP .............................................................. 20

DATA LOGGING ............................................................................... 21

Measurements ......................................................................... 21

Log Mode/Log Settings ............................................................ 21

Choose Test ............................................................................ 27

Name Test ............................................................................... 27

View Data ................................................................................ 28

View Stats ................................................................................ 28

View Samples .......................................................................... 29

Print Test ................................................................................. 30

Delete Data .............................................................................. 31

% Memory................................................................................ 32

iii

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ZERO CO ......................................................................................... 33

APPLICATIONS ................................................................................. 34

CALIBRATION .................................................................................. 35

BLUETOOTH FUNCTIONS (Models 9565-P and 9565-X only) ..................... 35

Discover Devices ..................................................................... 35

Discoverability .......................................................................... 36

PINcode ................................................................................... 36

# AutoConnects ....................................................................... 36

Printing Data Using the Portable Printer (Models 9565-P and

9565-X only) ............................................................................... 36

TrakPro™ Data Analysis Software ............................................... 37

LogDat2™ Downloading Software ................................................ 37

CHAPTER 4 MAINTENANCE .......................................................... 39

Recalibration ................................................................................. 39

Cases ............................................................................................ 39

Storage .......................................................................................... 39

CHAPTER 5 TROUBLESHOOTING ................................................ 41

APPENDIX A SPECIFICATIONS ..................................................... 43

APPENDIX B OPTIONAL PLUG-IN PROBES ................................ 47

iv

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Model

Description

9565-P

Multi-Function Ventilation Meter with Differential
Pressure Sensor

9565-P-NB

Multi-Function Ventilation Meter with Differential
Pressure Sensor, No Bluetooth

9565-X

Multi-Function Ventilation Meter, No Differential
Pressure Sensor

9565-X-NB

Multi-Function Ventilation Meter, No Differential
Pressure Sensor, No Bluetooth

Chapter 1

Unpacking and Parts Identification

Carefully unpack the instrument and accessories from the shipping
container. Check the individual parts against the list of components
below. If anything is missing or damaged, notify TSI immediately.

1. Carrying case

2. Instrument

3. Static pressure tip (9565-P and 9565-P-NB models only)

4. Rubber tubing (9565-P and 9565-P-NB models only)

5. USB cable

6. TrakPro CD-ROM with data analysis software

7. LogDat2 CD-ROM with downloading software

8. AC adapter

This manual supports the following models:

Bluetooth® Safety and Compliance

This product uses Classic Bluetooth® v2.0 to communicate with
software applications.

Hereby, TSI Inc. declares that this Classic Bluetooth® test and
measurement instrument is in compliance with Directive 2014/53/EC.

Transmit Power Rating is +4 dBm, MAX @ 2.4 – 2.5 GHz.

1

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2

NOT E

This device may not cause interference; this device must accept
any interference, including interference that may cause undesired
operation of the device.

l’appareil ne doit pas produire de brouillage; l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

NOT E

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules
(FCC ID: PI4411B). These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for
help.

NOT E

This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.

Find Quality Products Online at: [e-mail]

Chapter 1

www.GlobalTestSupply.com

3

W A R N I N G

Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

C a u t i o n

Make certain that power is turned off before changing
the DIP switch settings.

Switch

Function

Settings

1

NiMH

OFF: Alkaline Batteries
ON: NiMH Rechargeable Batteries

Chapter 2

Setting-up

Supplying Power to the Model 9565 Series

The Model 9565 VelociCalc® Air Velocity Meter can be powered in
one of two ways: four size AA batteries or the AC adapter.

Installing the Batteries

Insert four AA batteries as indicated by the diagram located on
the inside of the battery compartment. The Model 9565 is
designed to operate with either alkaline or NiMH rechargeable
batteries. Battery life will be shorter if NiMH batteries are used. If
NiMH batteries are used the DIP switch will need to be changed.
Refer to the next section, DIP Switch Settings. Carbon-zinc
batteries are not recommended because of the danger of battery
acid leakage.

DIP Switch Settings

To access the DIP switch, remove the batteries from the battery
compartment. On the inside of the battery compartment, there is
a window with a single DIP switch (see figure below). The table
below shows the functions for the switch.

VelociCalc is a registered trademark of TSI Incorporated.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DO NOT attempt to charge alkaline batteries.

AC Adapter input

Using the AC Adapter

The AC adapter can be used to power the instrument or to
charge the NiMH batteries when the DIP switch in the battery
compartment is set to NiMH. If the DIP switch is set to
Alkaline, and the AC power adapter is connected, then the
batteries will be bypassed and the meter will be powered by
the AC adapter. Be sure to provide the correct voltage and
frequency, which is marked on the back of the AC adapter.

6 Chapter 2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

N O T E

For temperature and humidity measurements, make sure that at
least 3 inches (7.5 cm) of the probe is in the flow to allow the
temperature and humidity sensors to be in the air stream.

“D” Shaped
mini-DIN connector

Connecting Ventilation or IAQ Probes

The ventilation and IAQ probes have a “D” shape overmolding on the
mini-DIN connector which must align with the connector at the base of
the 9565 series meter. This will ensure the probe is properly
connected and remains so during use. Once connected and turned
on, refer to the DISPLAY SETUP for displaying the desired
measurements.

Using the Telescoping Thermoanemometer Probes

The telescoping probe contains the velocity, temperature, and
humidity sensors. When using the probe, make sure the sensor
window is fully exposed and the orientation dimple is facing upstream.

Extending the Probe

To extend the probe, hold the handle in one hand while pulling on

the probe tip with the other hand. Do not hold the cable while

extending the probe as this prevents the probe from extending.

Retracting the Probe

To retract the probe, hold the handle in one hand while gently
pulling the probe cable until the smallest antenna section is
retracted.

Setting-up 7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DO NOT use the instrument or probes near hazardous
voltage sources since serious injury could result.

Negative (-) Pressure Port

Positive (+) Pressure Port

Using the Pressure Ports (9565-P)

The 9565-P includes pressure ports that can be used to measure
static and differential pressures in ductwork. For more information,
see Application Note TSI-107.

Connecting the Static Pressure Probe

The Static Pressure probe included with the 9565-P is connected
to the + port on the 9565-P using the included tubing. The Static
Pressure probe is used to measure the duct static pressure and
features a magnet which holds the probe to the ductwork.

8 Chapter 2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

N O T E

The pitot velocity needs a valid temperature to perform the
standard or actual velocity correction. This is accomplished
in the “Actual/Std Setup” menu. If no probe capable of
measuring temperature (plug in probe or thermocouple) is
connected, the“Temp Source” must be set to “Entered”. The
duct air temperature must then be manually inputted by the
user using the “Entered Temp” setting. If the “Temp Source”
is set to Probe or Thermocouple 1 or 2, and no probe is
connected, dashes (------) will appear on the display.

For more information on entering the temperature manually,
refer to the Actual/Standard Setup section of this manual.

Connecting an Optional Pitot Probe or Airflow (straight
pitot) Probe

When connected to a pitot probe, air velocity or air volume can be
measured. A pitot probe can be connected to the “+” and “-”
pressure ports on the Model 9565-P using two pieces of tubing of
equal length. The total pressure port of the pitot probe connects
to the “+” port on the meter, and the static pressure port of the
pitot probe connects to the “-” port on the meter.

For information on how to perform a duct traverse, refer to

Application Note TSI-106.

Setting-up 9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DO NOT use the instrument or probes near hazardous
voltage sources since serious injury could result.

Thermocouples from an alternate TSI supplier must have
the metal sheath electrically isolated from the wires
inside. Failure to meet this requirement may result in
false readings, electrical shock, or fire hazard.

DO NOT use the instrument or probes near hazardous
voltage sources since serious injury could result.

K-alloy Thermocouple

TC1

TC2

Thermocouple Ports

The 9565 series includes two thermocouple ports at the base of the
meter. Any K-Alloy thermocouple with mini-connector can be
attached. See Display Setup for setting the thermocouple
temperature readings to be displayed as TC1, TC2, or TC1-TC2.

Connecting the Thermocouples

The K-Alloy thermocouple with mini-connector has one terminal
wider than the other. The wider terminal will be inserted into the
bottom of the TC1 or TC2 connector port.

10 Chapter 2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

C a u t i o n

This symbol is used to indicate that the data port of the
Model 9565 is not intended for connection to a public
telecommunications network. Connect the USB data
port only to another USB port on a safety certified
computing device.

Protection provided by the instrument could be impaired
if used in a manner other than specified in this user
manual.

USB Communications Port

Connecting the Optional Bluetooth® Portable Printer Device
(Models 9565-P and 9565-X only)

To connect the Bluetooth printer to the Model 9565, power on the unit
and the printer. Then press the MENU soft key. From the Menu use
the  and  keys to highlight Bluetooth Functions and press the
key. Highlight Discover Devices and press the key. If other TSI
Bluetooth-printers are in the area, turn them off before searching. The
Model 9565 will then search for and list all available Bluetooth
devices.

For more information on establishing Bluetooth connections, refer to
TSI Applications Note TSI-150.

Connecting to a Computer

Use the Computer Interface USB Cable provided with the Model 9565
to connect the instrument to a computer for downloading stored data.

Bluetooth is a registered trademark of Bluetooth SIG.

Setting-up 11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ON/OFF ( ) Key

Press the ON/OFF key to turn the Model 9565 on
and off. During the power up sequence the display
will show the following: Model Number, Serial
Number, and Software Revision. To turn the

instrument off, press and hold the ON/OFF Key for 3

seconds. The instrument will count down (OFF2,
OFF1, OFF). If AC Adapter is attached, the Battery
and ON/OFF Key is bypassed. If the ON/OFF Key is
pressed while the AC adapter is attached, the
instrument instructs you to “Unplug the instrument
to turn off unit”. To turn the instrument on again,
attach the AC adapter or press the ON/OFF Key.

Arrow () Keys

Press to scroll through choices while setting a
parameter. Pressing the  keys simultaneously
will lock the keypad to prevent unauthorized
adjustments to the instruments. To unlock the
keypad, press the  keys simultaneously.

Enter ( ) Key

Press to accept a menu selection, value or
condition. Press to Start or Stop datalogging when
in Continuous Key mode.

Chapter 3

Operation

Keypad Functions

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

13

Arrow (or ) and
Menu Soft Keys

Press arrow keys to change choices while setting a
parameter. Press the Menu soft key to select the
Menu selections, which are Pressure Zero, Display
Setup, Settings, Flow Setup, VOC Setup,
Actual/Std Setup, Data Logging, Zero CO,
Applications, Calibration, and Bluetooth Functions.

Sample

Consists of all of the measurement parameters
stored at the same time.

Test ID

A group of samples. The statistics (average,
minimum, maximum, and count) are calculated for
each test ID. The maximum number of test IDs
is 100.

Time Constant

The time constant is an averaging period. It is used
to dampen the display. If you are experiencing
fluctuating flows, a longer time constant will slow
down those fluctuations. The display will update
every second, but the displayed reading will be the
average over the last time constant period. For
example, if the time constant is 10 seconds, the
display will update every second, but the displayed
reading will be the average from the last 10
seconds. This is also referred to as a “moving
average”.

Log Interval

The logging interval is the period over which the
instrument will average the logged sample. For
example, if the logging interval is set to 30 minutes,
each sample will be the average over the previous
30 minutes.

Test Length

This is the time over which the data will be logged
in the “Continuous-Time” mode of data logging.

Common Terms

This manual has several terms used in various places. The following
is a brief explanation of the meanings of those terms.

Find Quality Products Online at: [e-mail]

14 Chapter 3

www.GlobalTestSupply.com

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications

Calibration

Bluetooth Functions

Menus

The menu structure is organized to allow easy navigation and
instrument setup utilizing the arrow keys and button. To exit a
menu or menu item, press the ESC key.

 To access the Menu items, press the Menu soft key.

 To select a parameter, use the Arrow keys to highlight the

selection and press the button.

ZERO PRESSURE

Turn the instrument on for a minimum of five minutes to let it warm up
before zeroing the pressure sensor. To zero the pressure reading,
leave the positive and negative ports open to atmosphere and select
the Zero Press. The pressure sensor should be zeroed after initial
warm-up and checked periodically. The instrument will indicate if the
pressure zero was successful.

Find Quality Products Online at: [e-mail]

Operation 15

www.GlobalTestSupply.com

N O T E

Pitot Velocity and AFProbe Velocity cannot both be ON at the
same time, nor can one be set to PRIMARY and the other to ON.
Only one can be ON at any given time.

MENU
Zero Press

Display Setup

Settings
Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration

Bluetooth Functions

DISPLAY SETUP
Velocity *ON
Flow OFF
Pitot Velocity OFF
Pressure ON
Temperature ON
Baro Press OFF

ON PRIMARY OFF

DISPLAY SETUP

Display Setup menu is where you will setup the desired parameters to

be displayed on the instrument screen. With a parameter highlighted
you can then use the ON soft key to have it show up on the instrument
screen or select the OFF soft key to turn off the parameter. Use
PRIMARY soft key to have a parameter show up on the instrument
screen in a larger display. A total of 5 parameters can be shown on
the display, 1 primary (large font) and 4 secondary. Parameters
shown in the Display Setup screen are dependent on the type of
probe currently connected.

 When set to PRIMARY, measurement will be the large font on the

display.

 When set to ON, measurement will be displayed as a secondary

parameter (up to 4 can be displayed).

 When set to OFF, measurement will not be displayed.

Find Quality Products Online at: [e-mail]

16 Chapter 3

www.GlobalTestSupply.com

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions

SETTINGS

Language English

Beeper Disable
Select Units
Time Constant 1 Second

Contrast 5
Set Time 09:14 AM

Set Date 10/31/08
Time Format 12 hr
Date Format MM/DD/YY

Number Format XX,XXX.YY
Backlight Auto
Auto Off Enable

---- ----

MENU
Zero Press
Display Setup

Settings

Flow Setup

VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications
Calibration
Bluetooth Functions

FLOW SETUP
Flow Type Round Duct
Enter Settings

FLOW TYPE

Round duct

Rect duct
Duct area
Press/Kfa ct
Horn

Air cone

ENTER SETTINGS

12.0 in dia

SETTINGS

Settings menu is where you can set the general settings. These

include Language, Beeper, Select Units, Time Constant, Contrast,
Set Time, Set Date, Time Format, Date Format, Number Format,
Backlight and Auto Off. Use the or  keys to select an option, and
the  or  soft keys to change the settings for each option. Press the

key to accept settings.

FLOW SET UP

In Flow Setup mode, there are six types: Round Duct, Rectangle Duct,
Duct Area, Pressure/Kfactor, Horn and Air Cone. Use the  or  soft
keys to scroll through the types and then press the key to accept
the desired type. To change the value, highlight the Enter Settings
option and press the key.

Find Quality Products Online at: [e-mail]

Operation 17

www.GlobalTestSupply.com

N O T E

For flow measurements with round, rectangular, or duct area,
velocity must be set as a secondary measurement in order for flow
readings to appear when using the pitot or AF probe.

Round duct, Rect duct and Duct area are used to perform a duct
traverse using a pitot probe or thermoanemometer probe. For more
information on how to perform a duct traverse, refer to Application

Note TSI-106.

Press/Kfact allows for calculating flow rate from diffusers or flow
stations with pressure taps using the instruments pressure ports and
Kfactors. The Kfactors are obtained from the diffuser or flow station
manufacturer. For more information, refer to Application Note TSI-114.

Up to 5 rectangular ducts, 5 round ducts, 5 duct areas and 5 Kfactors
can be pre-programmed for quick use on a jobsite:

When Flow is set as the Primary measurement in the Display Setup
menu, the dimensions or Kfactor will also be displayed:

18 Chapter 3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

When measuring Flow as the Primary measurement, the parameters
can be quickly changed by pressing the  or  key while on the
main measurement screen:

Make adjustments with the  or  arrow keys and press to
accept, or enter the Select Duct or Select Kfactor menu to choose a
different pre-programmed flow value or dimension.

The Horn numbers are the models of the horns. For example, 100
refers to a horn model number AM 100. Only horns with Model
numbers as follows can be used with this function: AM 100, AM 300,
AM 600 and AM 1200. If a horn model number is chosen, the
instrument will return to measuring mode and use a preprogrammed
curve to calculate flow rate from velocity when using a
thermoanemometer probe.

The Air cone selection applies to the Model 995 Rotating Vane
Anemometer and the Air Cone kit p/n 801749 which are used to take
flow measurements on small outlets.

VOC SETUP

This menu item applies to TSI probes that measure Volatile Organic
Compounds (VOC). Refer to the manual included with VOC probe
Models 984, 985, 986, and 987 for information on usage and setup.

Operation 19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup

Actual/Std Setup

Data Logging
Zero CO
Applications

Calibration

Bluetooth Functions

ACTUAL/STD SETUP
Setting Standard
Temp source Entered

SETTING

Standard
Actual

TEMP SOURCE

Entered Temp 70 F

Probe
Thermocouple 1

Thermocouple 2

ACTUAL/STANDARD SETUP

Choose Actual/Standard measurements and parameters in the Act/Std
Setup menu. The Model 9565 measures the actual barometric
pressure using an internal sensor. The temperature source can be
entered manually or taken from a probe that measures temperature
(plug in probe or thermocouple). The Entered Temp range is from -40
to 1832°F (-40 to 1000°C).

For more information on Actual and Standard conditions, refer to

Application Note TSI-109.

20 Chapter 3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

N O T E

Pitot Velocity and AFProbe Velocity cannot both be ON at the same
time, nor can one be set to PRIMARY and the other to ON. Only
one can be ON at any given time.

MENU

Zero Press
Display Setup
Settings

Flow Setup
VOC Setup

Actual/Std Setup

Data Logging

Zero CO

Applications
Calibration
Bluetooth Functions

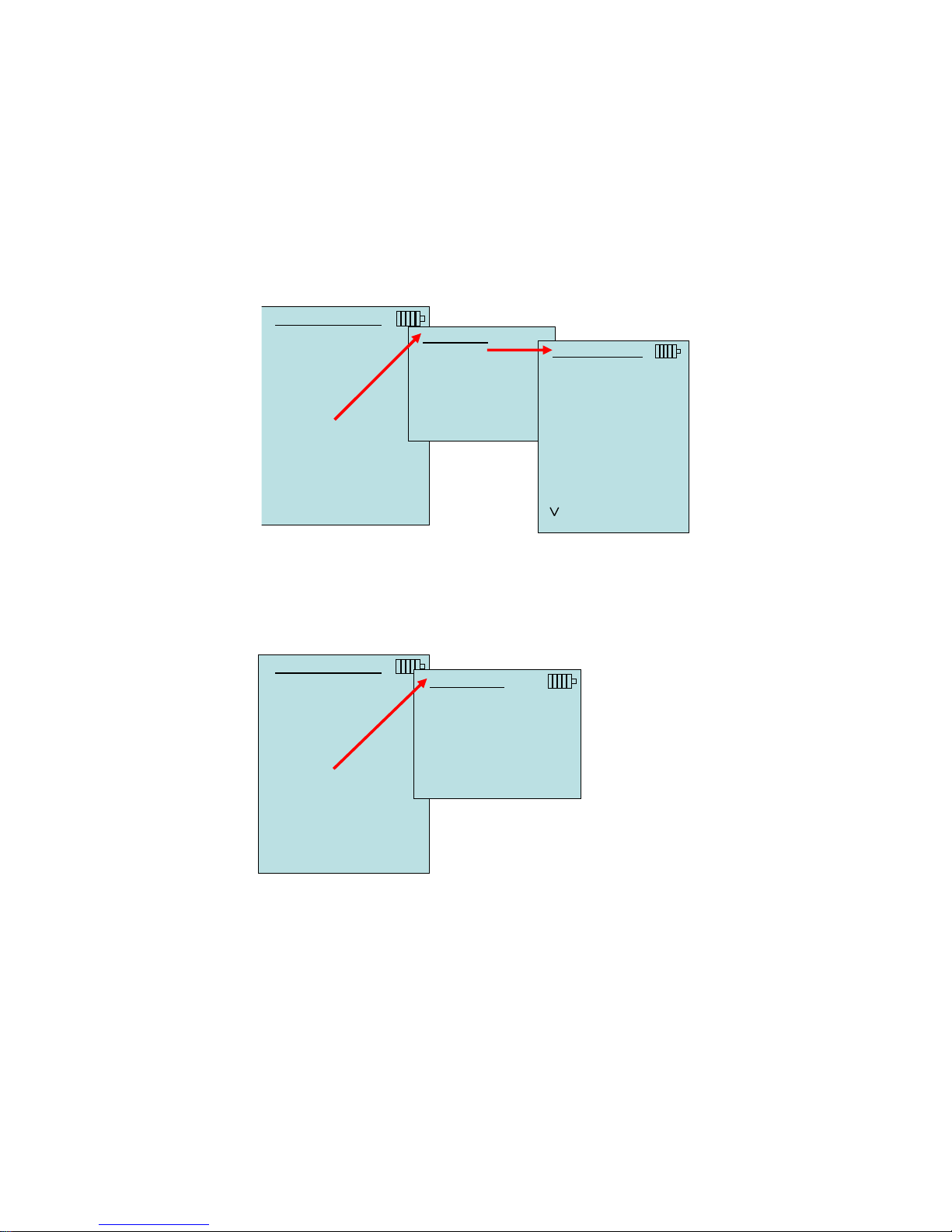

DATA LOGGING

Measurements

Log Mode Cont.-time
Log Settings

Choose Test Test 001
Name Test
View Data

Delete Data
% Memory

MEASUREMENTS

Temperature DISPLAY
Velocity DISPLAY
Flow DISPLAY

Heatflow OFF
Pressure DISPLAY
Baro Press ON

ON DISPLAY OFF

DATA LOGGING

Measurements

Measurements to be logged to memory are independent of
measurements on the display, and must therefore be selected
under DATA LOGGING  Measurements.

 When set to ON, measurement will be logged to memory.

 When set to DISPLAY, measurement will be logged to memory

if it is visible on the main running screen.

 When set to OFF, measurement will not be logged to memory.

Log Mode/Log Settings

The 9565 can be programmed to store measurements to memory
in several different logging formats:

 Manual

 Auto-save

 Cont-key

 Cont-time

 Program 1

 Program 2

Operation 21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

N O T E

To adjust the averaging period for a sample when using
Manual logging, change the Time Constant (increase or
decrease in seconds) which is located in the Settings Menu.

DATA LOGGING

Measurements
Log Mode Manual

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG MODE

Manual

Auto-save
Cont.-key

Cont.-time
Program 1
Program 2

DATA LOGGING

Measurements
Log Mode Auto-save

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG MODE

Manual

Auto-save

Cont.-key

Cont.-time
Program 1
Program 2

Manual Logging

Manual mode does not automatically save data, but instead
prompts the user to SAVE a sample or ESC to not save. To start
logging, press the key.

Auto Save Logging

In Auto-save mode, the user samples are automatically logged to
memory at the end of the sampling period. To start logging, press
the key.

Find Quality Products Online at: [e-mail]

22 Chapter 3

www.GlobalTestSupply.com

DATA LOGGING
Measurements
Log Mode Auto-save

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

SAMPLE TIME

00:05

Min:Sec

DATA LOGGING
Measurements

Log Mode Cont.-key

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG MODE

Manual

Auto-save

Cont.-key

Cont.-time
Program 1
Program 2

When set to Auto-save, the Sample Time can be adjusted. Sample
Time is the time period over which the Sample will be averaged.

Cont-key Logging

In Cont-key mode, the user starts logging by pressing the key.
The instrument will continue logging until the key is pressed
again.

Find Quality Products Online at: [e-mail]

Operation 23

www.GlobalTestSupply.com

N O T E

Pressing the  keys simultaneously will lock the keypad
to prevent unauthorized adjustments to the instruments
during unattended logging. A “Lock” symbol will appear on
the display. To unlock the keypad, press the  keys
simultaneously. The “Lock” symbol will disappear.

DATA LOGGING
Measurements
Log Mode Cont.-key

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG SETTINGS

Log Interval 00:01

LOG INTERVAL

00:05

Min:Sec

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG MODE

Manual

Auto-save
Cont.-key

Cont.-time

Program 1
Program 2

When set to Cont. key, the log interval can be adjusted.

Cont-time Logging

In Cont-time mode, the user starts taking readings by pressing the

key. The instrument will continue taking samples until the

time as set in “Test Length” has elapsed.

Find Quality Products Online at: [e-mail]

24 Chapter 3

www.GlobalTestSupply.com

N O T E

Pressing the  keys simultaneously will lock the keypad
to prevent unauthorized adjustments to the instruments
during unattended logging. A “Lock” symbol will appear on
the display. To unlock the keypad, press the  keys
simultaneously. The “Lock” symbol will disappear.

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG SETTINGS

Log Interval 00:01

Test Length 00:00:01

LOG INTERVAL

00:05

Min:Sec

TEST LENGTH

00 : 00 : 05

Day:Hour:Min

When set to Cont.-time, the log interval and test length can be
adjusted.

Operation 25

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

LOG MODE

Manual

Auto-save
Cont.-key

Cont.-time

Program 1
Program 2

Program 1 and Program 2

Program 1 and Program 2 are customized data logging setup
programs. Setting them up is performed using TSI’s TrakPro™
Data Analysis software.

For more information, refer to the TrakPro Data Analysis Software
User’s Guide which can be found on the TrakPro software CD
which is included with the 9565.

Find Quality Products Online at: [e-mail]

TrakPro is a trademark of TSI Incorporated.

26 Chapter 3

www.GlobalTestSupply.com

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

CHOOSE TEST

Test 001 9 Samples
Test 002 7 Samples
Test 003 0 Samples
Test 004 0 Samples
Test 005 0 Samples
Test 006 0 Samples
Test 007 0 Samples
Test 008 0 Samples
Test 009 0 Samples
Test 010 0 Samples

--- ---­NEW DATES

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001

Name Test

View Data

Delete Data
% Memory

Choose Test

Test IDs consist of a group of Samples that are used to determine
statistics (average, minimum, and maximum) of a measurement
application. The 9565 can store 26,500+ samples and 100 test
IDs (one sample can contain fourteen measurement types).
Example: Each duct traverse will have its own Test ID consisting
of several Samples.

Pressing NEW will advance to the next available Test ID. Pressing
DATES will list the date the Test was taken.

Name Test

This option allows for customizing the Test ID name using 8
characters maximum. Use the arrow keys to move the cursor to a
desired location, press to accept. Repeat until the desired
name appears. Press SAVE to store custom ID name.

Operation 27

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

DATA LOGGING
Measurements
Log Mode Auto-save

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

VIEW DATA

Choose Test Test 001

View Stats

View Samples

Print Test

CHOOSE TEST

Test 001 9 Samples
Test 002 7 Samples
Test 003 0 Samples
Test 004 0 Samples
Test 005 0 Samples
Test 006 0 Samples
Test 007 0 Samples
Test 008 0 Samples
Test 009 0 Samples
Test 010 0 Samples

--- ---­DATES

DATA LOGGING
Measurements
Log Mode Auto-save

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data
% Memory

VIEW DATA
Choose Test Test 001

View Stats

View Samples

Print Test

View Data

Choose Test

To view stored data, first select the Test ID that contains the data
to be recalled. This is accomplished in the “Choose Test” menu.

View Stats

Displays statistics (average, minimum, and maximum) of a
selected Test ID and the number of samples, date and time the
samples were taken.

Find Quality Products Online at: [e-mail]

28 Chapter 3

www.GlobalTestSupply.com

TEST 001

Pressure

Avg 1.739 in. H2O

Min 1.665 in. H2O
Max 1.812 in. H2O

# Samples 9

10/31/08 07:01:39 AM

PRINT

TEST 001

Temperature

Avg 78.2 F

Min 78.1 F

Max 78.3 F

# Samples 9

10/31/08 07:01:39 AM

PRINT

TEST 001

%RH

Avg 12.2 %RH

Min 11.1 %RH
Max 12.9 %RH

# Samples 9

10/31/08 07:01:39 AM

PRINT

VIEW DATA
Choose Test Test 001
View Stats

View Samples

Print Test

Use the  and  arrow keys to view statistics of all the
measurement parameters stored in a Test ID.

Example: TEST 001 has 9 samples, each sample consists of a
pressure, temperature, and relative humidity reading. Use the <
or > keys to view statistics of each measurement parameter.

The 9565-P and 9565-X can send this data to the optional Model
8934 wireless printer or PC capable of Bluetooth
communications. To use the PRINT command, Bluetooth
communications must be established between the instrument and
the Model 8934 wireless printer or PC set up with Bluetooth
communications.

View Samples

Operation 29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TEST 001

Velocity
Sample 1 218 ft/min
Sample 2 280 ft/min

Sample 3 316 ft/min
Sample 4 399 ft/min

Sample 5 188 ft/min
Sample 6 306 ft/min
Sample 7 313 ft/min
Sample 8 294 ft/min
Sample 9 309 ft/min

PRINT

TEST 001

Temperature
Sample 1 73.5 F
Sample 2 73.7 F

Sample 3 73.8 F
Sample 4 73.8 F

Sample 5 73.6 F
Sample 6 73.6 F
Sample 7 73.5 F
Sample 8 73.4 F
Sample 9 73.4 F

PRINT

TEST 001

%rh
Sample 1 15.1%rh
Sample 2 14.2%rh

Sample 3 13.8%rh
Sample 4 13.8%rh

Sample 5 13.5%rh
Sample 6 13.6%rh
Sample 7 13.6%rh
Sample 8 13.5%rh
Sample 9 13.5%rh

PRINT

VIEW DATA
Choose Test Test 001
View Stats

View Samples

Print Test

Use the  and  arrow keys to view samples of all the
measurement parameters stored in a Test ID.

The 9565-P and 9565-X can send this data to the optional Model
8934 wireless printer or PC capable of Bluetooth
communications. To use the PRINT command, Bluetooth
communications must be established between the instrument and
the Model 8934 wireless printer or PC set up with Bluetooth
communications.

Print Test

Press to print all statistics and samples for the selected Test
ID.

The 9565-P and 9565-X can send this data to the optional
Model 8934 wireless printer or PC capable of Bluetooth
communications. To use the PRINT command, Bluetooth
communications must be established between the instrument and
the Model 8934 wireless printer or PC set up with Bluetooth
communications.

For more information on establishing Bluetooth connections, refer
to TSI Applications Note TSI-150.

Find Quality Products Online at: [e-mail]

30 Chapter 3

www.GlobalTestSupply.com

DATA LOGGING
Measurements
Log Mode Cont.-time

Log Settings

Choose Test Test 001
Name Test

View Data

Delete Data

% Memory

DELETE DATA
Delete All
Delete Test
Delete Sample

DELETE DATA

Delete All

Delete Test
Delete Sample

DELETE ALL

Are you sure?

YES NO

DELETE DATA

Delete All

Delete Test

Delete Sample

DELETE TEST

Test 001 14 Samples
Test 002 10 Samples
Test 003 12 Samples
Test 004 8 Samples
Test 005 7 Samples
Test 006 15 Samples
Test 007 0 Samples
Test 008 0 Samples
Test 009 0 Samples
Test 010 0 Samples

--- ---- DATES

DELETE TEST

Delete Test 005.

Are you sure?

YES NO

Delete Data

Use this to delete all data, delete test or delete sample.

Delete All will clear stored data in all Test IDs.

Delete Test will clear stored data in an individual Test ID selected

by the user.

Find Quality Products Online at: [e-mail]

Operation 31

www.GlobalTestSupply.com

DELETE DATA
Delete All
Delete Test

Delete Sample

DELETE SAMPLE

Test 001 14 Samples
Test 002 10 Samples
Test 003 12 Samples
Test 004 8 Samples
Test 005 7 Samples
Test 006 15 Samples
Test 007 0 Samples
Test 008 0 Samples
Test 009 0 Samples
Test 010 0 Samples

--- ---- DATES

MEMORY

Test ID 83 %

Sample 92 %

Delete Sample will clear the last sample in an individual Test ID
selected by the user.

% Memory

This option displays the memory available. Delete All, under Delete
Data, will clear memory and reset the memory available to 100%.

32 Chapter 3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

N O T E

The Zero CO function should be performed in an area where no
combustion is taking place which may affect zeroing of the sensor.

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup
Actual/Std Setup
Data Logging

Zero CO

Applications

Calibration

Bluetooth Functions

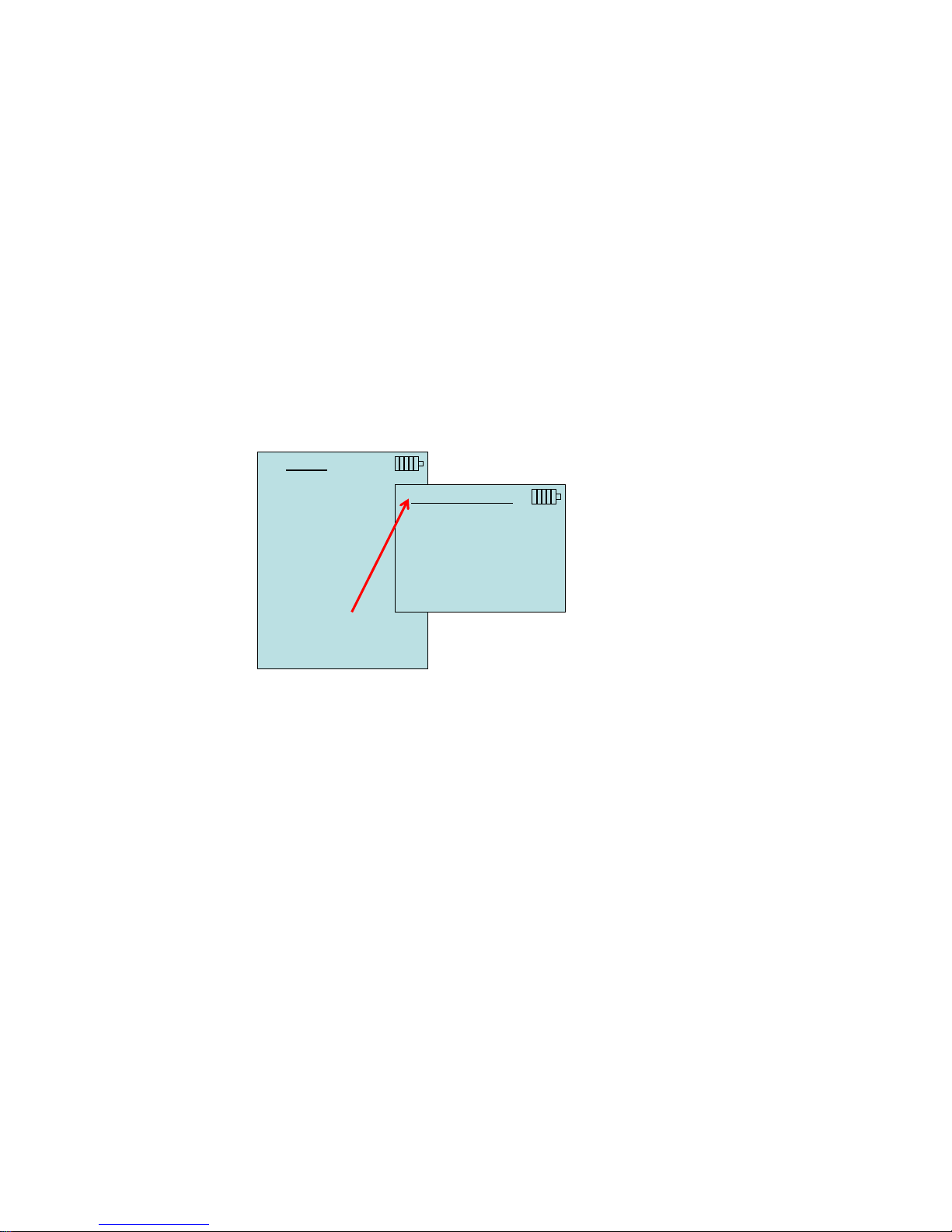

ZERO CO

0.0 ppm

ZERO CO

This menu item applies to TSI probe Model 982 which can measure
carbon monoxide (CO). Turn the instrument on for a minimum of five
minutes to let it warm up before zeroing the CO sensor. Zero CO will
zero the CO sensor readings that may have drifted. Initiating the Zero
CO function will show the sensor CO reading and the time remaining.

Find Quality Products Online at: [e-mail]

Operation 33

www.GlobalTestSupply.com

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO

Applications

Calibration

Bluetooth Functions

APPLICATIONS
Draft Rate
Heatflow
Turbulence
% Outside Air

Leakage Test

APPLICATIONS

This menu option includes specialized measurement protocols used
to perform various tests or investigations. You can choose Draft Rate,
Heat flow, Turbulence, % Outside Air, and Leakage Test in the
Applications menu. For more information on these applications, refer
to the following information:

 Draft Rate: Application Note TSI-142

 Heat Flow: Application Note TSI-124

 Turbulence Intensity: Application Note TSI-141

 Percent Outside Air: Application Note TSI-138

 Leakage Test: PANDA Manual

Find Quality Products Online at: [e-mail]

34 Chapter 3

www.GlobalTestSupply.com

MENU
Zero Press
Display Setup

Settings

Flow Setup
VOC Setup
Actual/Std Setup
Data Logging
Zero CO
Applications

Calibration

Bluetooth Functions

CALIBRATION

Calibrate Temp
Calibrate Vel
Calibrate %RH
Calibrate B.P.
Calibrate CO2
Calibrate CO

Calibrate VOC

Restore Factory Cal

MENU

Zero Press
Display Setup
Settings
Flow Setup
VOC Setup

Actual/Std Setup
Data Logging

Zero CO
Applications
Calibration

Bluetooth Functions

BLUETOOTH FUNCT.

Discover Devices

Discoverability Enable
PINcode 0000
# AutoConnects 1

CALIBRATION

The Calibration Menu lists measurement parameters that can be
adjusted in the field. The appropriate detachable probes must be
attached to the 9565 before field calibration can be undertaken
except for pressure and barometric pressure calibration.

For more information on performing field calibrations, refer to TSI

Applications Note TSI-146.

BLUETOOTH FUNCTIONS (Models 9565-P and 9565-X only)

VelociCalc Models 9565-P and 9565-X contains a Bluetooth
Functions menu which is used to adjust parameters to assist with
wireless connections to other Bluetooth capable devices.

Discover Devices

Start the Bluetooth process of finding other devices from the

Find Quality Products Online at: [e-mail]

VelociCalc Model 9565-P or 9565-X.

Operation 35

www.GlobalTestSupply.com

Disable

The instrument is not discoverable by other
devices.

Temporary

Allows the instrument to be discoverable until
another device pairs with it or until the instrument
power is turned off and back on.

Enable

Makes the instrument discoverable indefinitely.

N O T E

PINcode must be set to 0000 in order to use 8934 printer.

Discoverability

Describes whether another device can discover the VelociCalc
Model 9565-P or 9565-X meter. Options include:

PINcode

The PINcode is a security key to be entered into the computer if
prompted. The factory default PINcode is 0000.

# AutoConnects

Specifies how many times the instrument will attempt to reattach
to a paired device after the power is turned on. For this option,
the instrument Discoverability setting must be enabled. Settings
are 0 to 5 times.

For more information on establishing Bluetooth connections, refer to
TSI Applications Note TSI-150.

Printing Data Using the Portable Printer (Models 9565-P and
9565-X only)

To print logged data, first enter the DATALOGGING menu. Then, use
the CHOOSE TEST item to select the data to be printed. After the test is
selected, use the VIEW STATS and VIEW SAMPLES items to select
statistics or individual data points to view and print. After selecting
VIEW STATS or VIEW SAMPLES, press the PRINT key to print the data.

36 Chapter 3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TrakPro™ Data Analysis Software

The VelociCalc Model 9565 comes with special software called
TrakPro™ Data Analysis Software, which is designed to provide you
with maximum flexibility and power.

To download data from the Model 9565, connect the supplied
computer interface USB cable to the Model 9565 and to a computer
USB port. Any USB port can be used.

LogDat2™ Downloading Software

The VelociCalc Model 9565 also includes downloading software
called LogDat2. LogDat2 software transfers the stored data from the
Model 9565 to a computer as a spreadsheet file. This software is
useful for applications such as duct traverses, fume hood, and filter
face velocity testing.

To download data from the Model 9565, connect the supplied
computer interface USB cable to the Model 9565 and to a computer
USB port. Any USB port can be used.

Operation 37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Chapter 4

Maintenance

The Model 9565 and probe accessories require very little
maintenance to keep it performing well.

The Model 9565 and accessory probes can also be recalibrated in the
field using the CALIBRATION menu. These field adjustments are
intended to make minor changes in calibration to match a user's
calibration standards. The field adjustment is NOT intended as a
complete calibration capability. For complete, multiple-point
calibration and certification, the instrument must be returned to the
factory.

Cases

If the instrument case or storage case needs cleaning, wipe it off with
a soft cloth and isopropyl alcohol or a mild detergent. Never immerse
the Model 9565. If the enclosure of the Model 9565 or the AC adapter
becomes broken, it must be replaced immediately to prevent access
to hazardous voltage.

Storage

Remove the batteries when storing the unit for more than one month
to prevent damage due to battery leakage.

39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Symptom

Possible Causes

Corrective Action

No Display

Unit not turned on

Switch unit on.

Low or dead batteries

Replace batteries or plug
in AC adapter.

Dirty battery contacts

Clean the battery
contacts.

Velocity reading
fluctuates unstable

Fluctuating flow

Reposition probe in less
turbulent flow or use
longer time constant.

No response to
keypad

Keypad locked out

Unlock keypad by
pressing  keys
simultaneously.

Instrument Error
message appears

Memory is full

Download data if desired,
then DELETE ALL memory.

Fault in instrument

Factory service required
on instrument.

Probe Error
message appears

Fault in probe

Factory service required
on probe.

Probe is plugged in,
but the instrument
does not recognize
it

Probe was plugged in
when the instrument was
ON

Turn instrument OFF and
then turn it back ON.

Chapter 5

Troubleshooting

Table 5-1 lists the symptoms, possible causes, and recommended
solutions for common problems encountered with the Model 9565. If
your symptom is not listed, or if none of the solutions solves your
problem, please contact TSI.

Table 5-1: Troubleshooting the Model 9565

W A R N I N G !

Remove the probe from excessive temperature immediately:
excessive heat can damage the sensor. Operating temperature limits
can be found in Appendix A, Specifications. The pressure sensor is
protected from damage up to 7 psi (48 kPa or 360 mmHg). At higher
pressure it can burst!

41

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Appendix A

Specifications

Specifications are subject to change without notice.

Velocity (TA Probe):

Range: 0 to 9999 ft/min (0 to 50 m/s)
Accuracy

Resolution: 1 ft/min (0.01 m/s)

Velocity (Pitot Tube):

Range3: 250 to 15500 ft/min (1.27 to 78.7 m/s)
Accuracy4: ±1.5% at 2000 ft/min (10.16 m/s)
Resolution: 1 ft/min (0.01 m/s)

Duct Size:

Range: 1 to 500 inches in increments of 0.1 in.

Volumetric Flow Rate:

Range: Actual range is a function of actual velocity, pressure,

1&2

: ±3% of reading or ±3 ft/min (±0.015 m/s), whichever

is greater

(2.5 to 1270 cm in increments of 0.1 cm)

duct size, and K factor

Temperature (TA Probe):

Range: 14 to 140°F (-10 to 60°C)
Accuracy5: ±0.5°F (±0.3°C)
Resolution: 0.1°F (0.1°C)

Relative Humidity (TA Probe):

Range: 5 to 95% RH
Accuracy6: ±3% RH
Resolution: 0.1% RH

Wet Bulb Temperature (TA Probe):

Range: 40 to 140°F (5 to 60°C)
Resolution: 0.1°F (0.1°C)

Dew Point (TA Probe):

Range: 5 to 120°F (-15 to 49°C)
Resolution: 0.1°F (0.1°C)

Heat Flow (TA Probe):

Range: Function of velocity, temperature, humidity,

and barometric pressure

Measurements available: Sensible heat flow, latent heat flow, total

heat flow and sensible heat factor

Units measured: BTU/hr, kW

43

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Static / Differential Pressure:

Range7: -15 to +15 in. H2O (-28.0 to +28.0 mm Hg, -3735 to

+3735 Pa)
Accuracy: ±1% of reading ±0.005 in. H2O (±1 Pa, ±0.01 mm Hg)
Resolution: 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)

Barometric Pressure:

Range: 20.36 to 36.648 in. Hg (517.15 to 930.87 mm Hg)
Accuracy: ±2% of reading

Instrument Temperature Range:

Operating (Electronics): 40 to 113°F (5 to 45°C)
Operating (Probe): 14 to 140°F (-10 to 60°C)
Storage: -4 to 140°F (-20 to 60°C)

Instrument Operating Conditions:

Altitude up to 4000 meters
Relative humidity up to 80% RH, non-condensing

Data Storage Capabilities:

Range: 26,500+ samples and 100 test IDs (one sample can

contain fourteen measurement types)

Logging Interval:

Intervals: 1 second to 1 hour

Time Constant:

Intervals: User selectable

Response Time:

Velocity: 200 msec
Temperature: 2 minutes (to 66% of final value)
Pressure: 0.1 msec
Humidity: <1 minute (to 66% of final value)

External Meter Dimensions:

3.8 in.  8.3 in.  2.1 in. (9.7 cm  21.1 cm  5.3 cm)

Meter Probe Dimensions:

Probe length: 40 in. (101.6 cm)
Probe diameter of tip: 0.28 in. (7.0 mm)
Probe diameter of base: 0.51 in. (13.0 mm)

Articulating Probe Dimensions:

Articulating section length: 6.0 in. (15.24 cm)
Diameter of articulating knuckle: 0.38 in. (9.5 mm)

Meter Weight:

Weight with batteries: 0.8 lbs (0.36 kg)

44 Appendix A

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Power Requirements:

Four AA-size batteries (included) or
AC Adapter p/n 801761

Input: 90 to 240 VAC, 50 to 60 Hz
Output: 9 VDC, 2A

1

Temperature compensated over an air temperature range of 40 to 150°F (5 to

65°C).

2

The accuracy statement of ±3.0% of reading or ±3 ft/min (±0.015 m/s), whichever is

greater, begins at 30 ft/min through 9999 ft/min (0.15 m/s through 50 m/s).

3

Pressure velocity measurements are not recommended below 1000 ft/min (5 m/s)

and are best suited to velocities over 2000 ft/min (10.00 m/s). Range can vary
depending on barometric pressure.

4

Accuracy is a function of converting pressure to velocity. Conversion accuracy

improves when actual pressure values increase.

5

Accuracy with instrument case at 77°F (25°C), add uncertainty of 0.05°F/°F

(0.03°C/°C) for change in instrument temperature.

6

Accuracy with probe at 77°F (25°C). Add uncertainty of 0.1% RH/°F (0.2% RH/°C)

for change in probe temperature. Includes 1% hysteresis.

7

Overpressure range = 190 in. H2O (7 psi, 360 mmHg, 48 kPa).

Specifications 45

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Thermoanemometer Probes

Model

Description

960

Air Velocity and Temperature, Straight Probe

962

Air Velocity and Temperature, Articulating Probe

964

Air Velocity, Temperature, and Humidity, Straight Probe

966

Air Velocity, Temperature, and Humidity, Articulating Probe

Rotating Vane Anemometer Probes

Model

Description

995

4 in. (100 mm) Rotating Vane, Air Velocity, and Temperature

Temperature and Relative Humidity Probe

Model

Description

800220

Temperature and humidity probe

Indoor Air Quality (IAQ) Probes

Model

Description

980

Indoor Air Quality Probe, Temperature, Humidity, CO2

982

Indoor Air Quality Probe, Temperature, Humidity, CO2 and CO

Volatile Organic Compounds (VOC) Probes

Model

Description

984

Low Concentration (ppb) VOC and Temperature

985

High Concentration (ppm) VOC and Temperature

986

Low Concentration (ppb) VOC, Temperature, CO2, and Humidity

987

High Concentration (ppm) VOC, Temperature, CO2, and
Humidity

K-alloy Thermocouple Probes

Model

Description

792

Surface Temperature Probe

794

Air Temperature Probe

Appendix B

Optional Plug-in Probes

47

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Pitot Probes

Model

Description

634634000

Pitot Probe 12" (30 cm) - 5/16" (8 mm) diameter

634634001

Pitot Probe 18" (46 cm) - 5/16" (8 mm) diameter

634634002

Pitot Probe 24" (61 cm) - 5/16" (8 mm) diameter

634634003

Pitot Probe 36" (91 cm) - 5/16" (8 mm) diameter

634634005

Pitot Probe 60" (152 cm) - 5/16" (8 mm) diameter

634634004

Telescoping Pitot Probe - 8" to 38" (20 cm to 96 cm)

800187

Air Flow Probe (Straight Pitot) 18" (46 cm) - 5/16" (8 mm)
diameter

48 Appendix B

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
