TSI Instruments 8537 Installation Manual

Qty.

Item Description

Reference Picture

1

Netronix Thiamis 1000
GSM/GPS
Communication Modem

1

GSM-GPS Antenna

1

RS-232 to USB
Converter Cable

Qty.

Item Description

Reference Picture

1

Adapter Plate

1

Power Cable

1

Spare Fuse

2

6-32 x 3/8” LG Flat Head
Screws

2

10-32 x ½” LG Flat Head
Screws

1

Netronix Environet
Guide

1

Environet Account
Creation Form

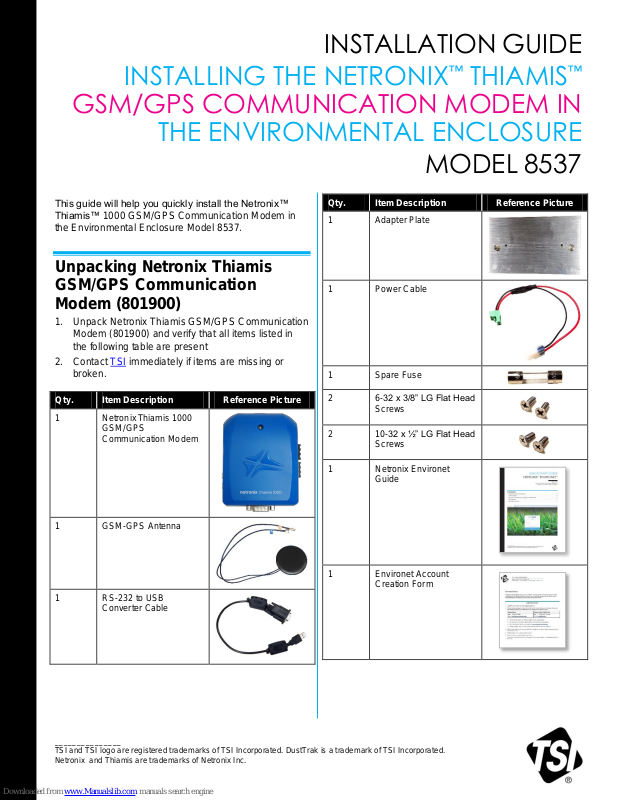

INSTALLING THE NETRONIX™ THIAMIS™

GSM/GPS COMMUNICATION MODEM IN

THE ENVIRONMENTAL ENCLOSURE

This guide will help you quickly install the Netronix™

Thiamis™ 1000 GSM/GPS Communication Modem in

the Environmental Enclosure Model 8537.

Unpacking Netronix Thiamis
GSM/GPS Communication
Modem (801900)

1. Unpack Netronix Thiamis GSM/GPS Communication
Modem (801900) and verify that all items listed in
the following table are present

2. Contact TSI immediately if items are missing or
broken.

INSTALLATION GUIDE

MODEL 8537

_______________
TSI and TSI logo are registered trademarks of TSI Incorporated. DustTrak is a trademark of TSI Incorporated.
Netronix and Thiamis are trademarks of Netronix Inc.

Qty.

Item Description

Reference Picture

1

Phillips Screw Driver

NOTE

It is assumed that the instrument, 12V DC external
power supply, water trap bottle, omni-directional inlet,
DC power cable, right angle USB cable and inlet
tubing have already been installed into the
Environmental Enclosure. In this guide, a DustTrak™
DRX 8533EP has been used. The water trap bottle,
omni-directional inlet, DC power cable, right angle
USB cable, 12V DC power supply and tubing are all
included with Environmental Enclosure. See
Environmental Enclosure 8537 Operation Manual for
further details.

CAUTION

12V DC Power supply should not be connected to
power until instructed to do so.

1. Fasten the
adapter plate to
the back panel
using the 10-32

x 1/2” flat head

screws (qty. 2).

For clarity, the
black rubber
inlet tubing has
been
disconnected
from the
instrument
inlet.

2. Remove the

mounting plate from
the back of the
modem. To separate
the two pieces, push
the button on the top
of the modem, rotate
the plate slightly
away and slide the
mounting plate
downwards.

Be careful not to
rotate the plate too
far or the tabs on
the bottom
may break

3. Fasten the

mounting plate
to the adapter
plate using the
6-32 x 3/16”
pan head
screws (qty. 2).

4. Snap the

modem into the
mounting plate
as shown.

Tools Needed for Installation

Installing Netronix Thiamis 1000
GSM/GPS Communication
Modem

–2–

5. Attach the GSM/GPS antenna to the enclosure

6. Connect the

GSM and GSP
cables to the
modem.

7. Using the

RS-232 to USB
cable, make a
connection
between the
DustTrak
monitor and the
modem. The
USB end
should connect
to the DustTrak
monitor. The
RS-232 end
should connect
to the modem.

8. Finally, install

the power
cable as
shown.

9. Plug the

AC/DC power
supply into an
AC power
source.
Instrument and
modem should
power on.

10. LED on the

modem will
blink while the
modem
searches for a
network. If the
LED stops
blinking and is
solid blue, a
network has
been found and
proper
communication
with Environet
should be
possible. If the
LED changes
to solid yellow,
the modem has
not found a
network. A
power cycle
may resolve
the issue.

11. To utilize the telemetry functionality of Thiamis

1000, please refer to the Netronix Environet Quick
Start guide, which is included in the 801900 kit.

–3–
