TSI Instruments 5300 Series, 5300-LPMK Quick Start Manual

_____________________

TSI and TSI logo are registered trademarks of TSI Incorporated.

Item

Description

Qty.


1

22-mm (M/F) Airway
Pressure Fitting with
Screen

2

2 1/8 inch ID x 1/4 inch OD

Tubing

96 in.

❶

❷

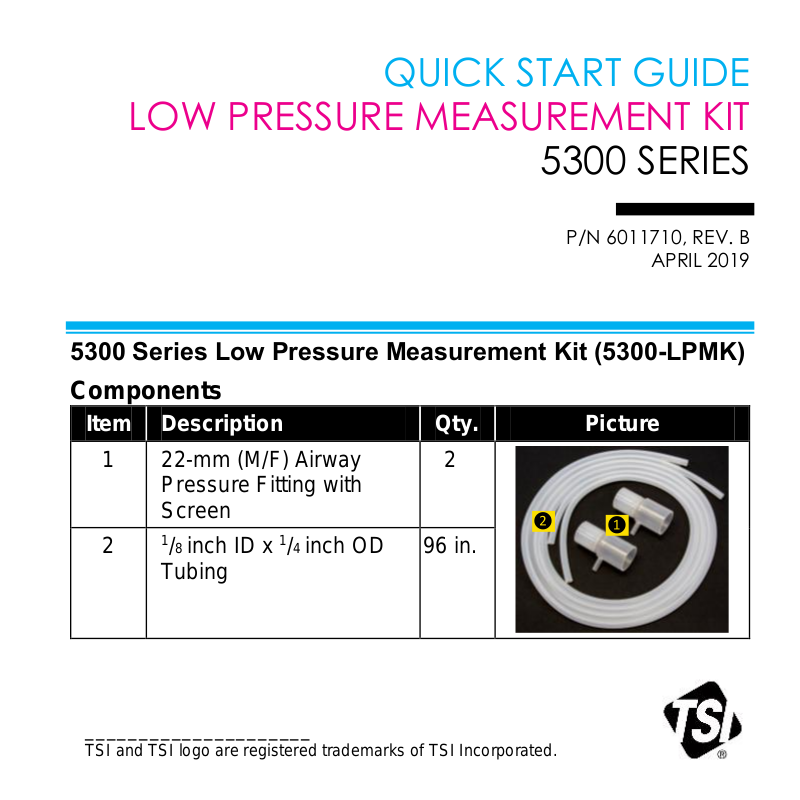

QUICK START GUIDE

LOW PRESSURE MEASUREMENT KIT

5300 SERIES

P/N 6011710, REV. B

5300 Series Low Pressure Measurement Kit (5300-LPMK)

Components

APRIL 2019

Assembly

1. Attach the 22-mm Airway Pressure Fitting to the outlet
side Tube End of the 5300 Series Instrument with the
barb facing up.

2. Measure and cut a length of tubing and connect it from
the Airway Pressure Fitting barb to the (+) port on the
Multi-Meter.

Standard Setup: 22-mm ISO Tube Ends

–2–

Assembly

Alternative Setup: 15 mm,

3

/4 inch or 1/2 inch Tube Ends

1. Remove tube ends from the
meter then screw the collars
back on.

2. Insert the Airway Pressure
Fitting into the outlet side of the
Multi-Meter in the inverted
direction with the barb facing up.

3. Measure and cut a
length of

1

/4 OD tubing and

1

/8 ID x

connect it from the
Airway Pressure
Fitting barb to the (+)
port of the Meter.

–3–

TSI Incorporated – Visit our website www.tsi.com.
P/N 6011710 Rev B ©2019 TSI Incorporated

4. Insert the Inlet Filter–
Low Pressure (supplied
in Std Accessory Kit)
into the inlet side of the
Multi-Meter in the
inverted direction.

5. Insert alternative Tube Ends into the inlet of the Filter

and into the outlet side of the Airway Pressure Fitting.
