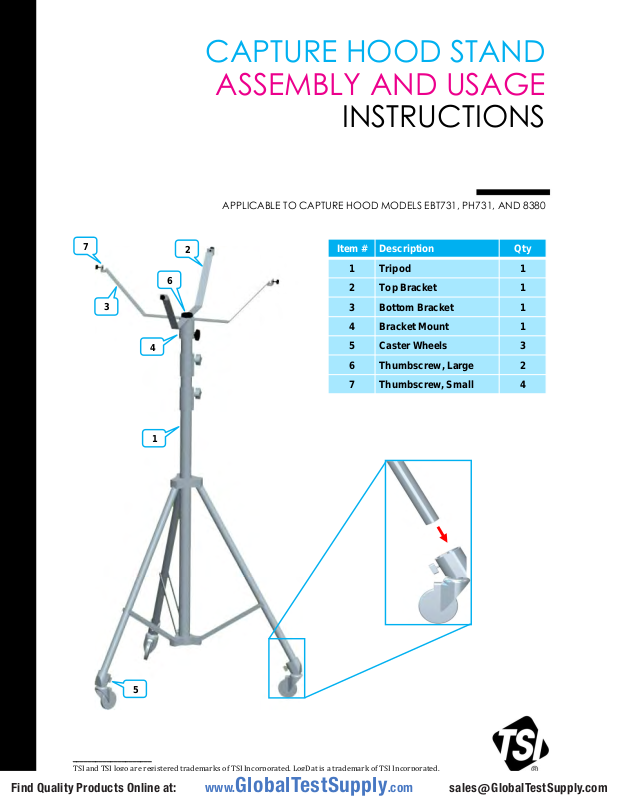

CAPTURE HOOD STAND
1
2
3
4
5
6
7
Item #
Description
Qty
1
Tripod
1
2
Top Bracket
1
3
Bottom Bracket
1
4
Bracket Mount
1
5
Caster Wheels
3
6
Thumbscrew, Large
2
7
Thumbscrew, Small
4
ASSEMBLY AND USAGE
INSTRUCTIONS
APPLICABLE TO CAPTURE HOOD MODELS EBT731, PH731, AND 8380
Find Quality Products Online at: sales@GlobalTestSupply.com
_____________________
TSI and TSI logo are registered trademarks of TSI Incorporated. LogDat is a trademark of TSI Incorporated.
Bluetooth is a registered trademark of Bluetooth SIG Inc. Android is a trademark of Google Inc.
www.GlobalTestSupply.com
Page 2
Attaching Capture Hood to Stand
LogDat™ Mobile Remote Reader and Data Logger Software
Utilizing wireless Bluetooth® technology, this app for Android™based smartphones and tablets communicates with the instrument
remotely over 100 ft. (30.5 m) away and displays sample data in
real time. Attach comments, voice notes, and photos to test ID data
for export via email to generate reports.
Detach Micromanometer from the Base and Connect Directly to the
Flow Manifold
Disconnect short tubing from the ports on the flow manifold
Use the two 8 ft. (2.4 m) sections of tubing included with the instrument
o Connect one section of tubing to the “+” port on the micromanometer,
and the other end to the flow manifold port facing towards the top of
the hood.
o Connect the other section of tubing to the “-” port on the
micomanometer, and the other pressure port on the flow manifold.
Program temperature into micromanometer
o Go to “Actual/Std Setup” menu
o Set “Temp Source” to “Entered”
o Enter ambient temperature
Disable “Headphone Input”
o Go to “Settings” menu
o Set to “Disable”
Notes
When using the stand:
Backpressure compensation mode cannot be utilized.
Make sure the backpressure flap on the base is in the open position.
1. Mount the capture hood base onto the quad
bracket corners. Use thumbscrews to tighten.
2. Raise the hood using the adjustable extension
poles.
3. Make sure to make a tight seal against the outlet.
4. Lock in place by tightening the thumbscrews on
the extension poles.
Taking Flow Measurements
Flow measurement readings can easily be viewed directly on the large backlit display, or by utilizing the
following innovative, productivity enhancements:
