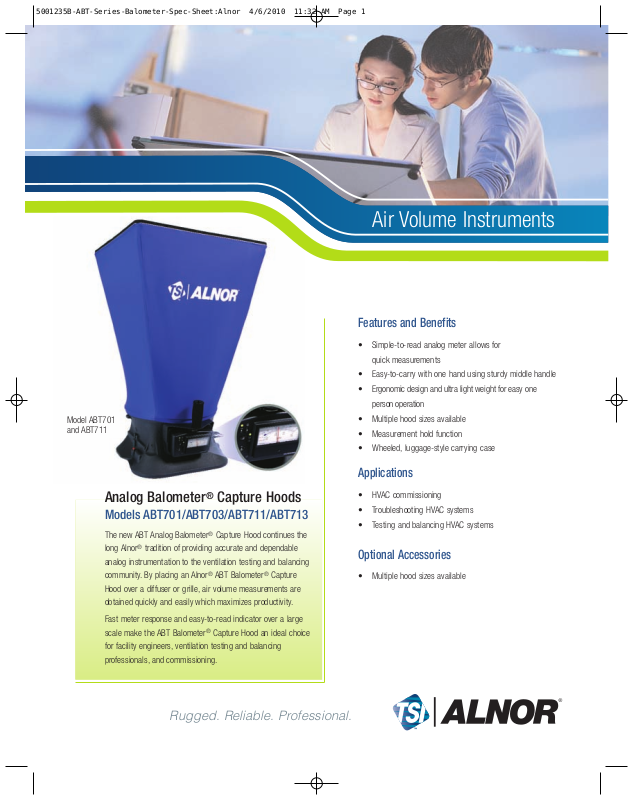

TSI Alnor ABT703 Specifications
Model ABT701
and ABT711
Air Volume Instruments
Features and Benefits
• Simple-to-read analog meter allows for
quick measurements
• Easy-to-carry with one hand using sturdy middle handle
• Ergonomic design and ultra light weight for easy one
person operation
• Multiple hood sizes available
• Measurement hold function
• Wheeled, luggage-style carrying case
Applications
Analog Balometer®Capture Hoods
Models ABT701/ABT703/ABT711/ABT713
The new ABT Analog Balometer®Capture Hood continues the
long Alnor®tradition of providing accurate and dependable
analog instrumentation to the ventilation testing and balancing
community. By placing an Alnor®ABT Balometer®Capture
Hood over a diffuser or grille, air volume measurements are
obtained quickly and easily which maximizes productivity.
Fast meter response and easy-to-read indicator over a large
scale make the ABT Balometer®Capture Hood an ideal choice
for facility engineers, ventilation testing and balancing
professionals, and commissioning.
Rugged. Reliable. Professional.
• HVAC commissioning
• Troubleshooting HVAC systems
• Testing and balancing HVAC systems
Optional Accessories
• Multiple hood sizes available
Specifications
0
50
100
150
200
250
25
200
400
300
600
400
800
500
1000
CFM
0
100
200
300
400
500
50
400
800
600
1200
800
1600
1000
2000
CMH
Air Volume Instruments
ABT Analog Balometer®Capture Hoods
Supply and Exhaust Ranges
30 to 1,000 CFM (ft
3
/min), 50 to 2,000 CMH (m3/hr)
Accuracy
ABT701/ABT703 ±3% of full scale selected +5 CFM (ft3/min)
ABT711/ABT713 ±3% of full scale selected +10 CMH (m
3
/hr)
Units
ABT701/ABT703 CFM (ft3/min)
ABT711/ABT713 CMH (m
3
/hr)
Scale Divisions (Supply/Exhaust)
CFM (ft3/min) 5 from 30 to 250
10 from 200 to 500
20 from 400 to 1000
3
CMH (m
/hr) 10 from 50 to 500
20 from 400 to 1000
40 from 800 to 2000
Power Requirements
Four AA-size cells alkaline
Battery life
200 CFM ( 340 CMH) 29.2 hours
800 CFM (1360 CMH) 21.3 hours
1000 CFM (1700 CMH) 20.4 hours
Weight with Batteries
7.4 lb (3.4 kg)
Optional Hood and Frame Kits
801097 2 ft x 2 ft (610 mm x 610 mm)
801201 2 ft x 4 ft (610 mm x 1220 mm)
801200 1 ft x 4 ft (305 mm x 1220 mm)
801202 1 ft x 5 ft (305 mm x 1525 mm)
801203 3 ft x 3 ft (915 mm x 915 mm)
801209 16 in x 16 in (406 mm x 406 mm)
Model ABT703
and ABT713
Operating Temperature Range
32 to 140°F (0 to 60°C)
Storage Temperature Range
-40 to 140°F (-40 to 60°C)
Model Description
ABT701 30 to 1000 CFM (ft
3
/min) with 2 ft x 2 ft
(610 mm x 610 mm) hood
ABT703 30 to 1000 CFM (ft
3
/min) with 16 in x 16 in
Models ABT701/ABT703
(406 mm x 406 mm) hood
ABT711 50 to 2000 CMH (m
3
/hr) with 2 ft x 2 ft
(610 mm x 610 mm) hood
ABT713 50 to 2000 CMH (m
3
/hr) with 16 in x 16 in
(406 mm x 406 mm) hood
Models ABT711/ABT713
Specifications subject to change without notice.
TSI, the TSI logo, Alnor, and Balometer are trademarks of TSI Incorporated.
A
lnor Products, TSI Incorporated
USA Tel: +1 800
UK Tel: +44 149 4 459200 E-mail: tsiuk@tsi.com Website: www.tsiinc.co.uk
France Tel: +33 491 11 87 64 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr
Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website: www.tsiinc.de
India Tel: +91 80 41132470 E-mail: tsi-india@tsi.com
China Tel: +86 10 8260 1595 E-mail: tsibeijing@tsi.com
Singapore Tel: +65 6595 6388 E-mail: tsi-singapore@tsi.com
Contact your local Alnor Distributor or visit our website www.alnor.com for more detailed specifications.
P/N 5001235 Rev B Copyright © 2010 by TSI Incorporated Printed in U.S.A.
