TSC Auto ID Technology RFWKD User Manual

ha-4L Series

Bar Code Printer

Direct Thermal Portable type

USER’S

MANUAL

WiFi +Bluetooth Version (For FCC)

Alpha-4L-W, PR40-W, GR40-W, 4400-W, TSC-40-W, CN-40W, BP-40W Alpha-4L-D-W, PR40-D-W, GR40-D-W, 4400-D-W, TSC-40-D-W, CN-40LW, BP-40LW, Alpha-4L-W-R, PR40-W-R, GR40-W-R, 4400-W-R, TSC-40-W-R Alpha-4L-D-W-R, PR40-D-W-R, GR40-D-W-R, 4400-D-W-R, TSC-40-D-W-R

WiFi +Bluetooth Version (For IC)

Alpha-4L-D-W-R, PR40-D-W-R, GR40-D-W-R, 4400-D-W-R, TSC-40-D-W-R

Bluetooth Version (For FCC)

Alpha-4L, PR40, GR40, 4400, TSC-40, CN-40, BP-40, Alpha-4L-D,PR40-D, GR40-D, 4400-D, TSC-40-D, CN-40L, BP-40L,Alpha-4L-R, PR40-R, GR40-R, 4400-R, TSC-40-R, CN-40B, BP-40B, Alpha-4L-D-R, PR40-D-R, GR40-D-R, 4400-D-R, TSC-40-D-R, CN-40LB, BP-40LB

Bluetooth Version (For IC)

Alpha-4L-D-R, PR40-D-R, GR40-D-R, 4400-D-R, TSC-40-D-R

CG Triumvirate is a trademark of Agfa Corporation. CG Triumvirate Bold Condensed font is under license from the Monotype Corporation. Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use, without the expressed written permission of TSC Auto ID Technology Co.

Agency Compliance and Approvals

EN 55022/24, IEC 61000-3-3, IEC 61000-3-2 EN 300328, EN 301489

Part 15B/C

EN 60950-1

GB 9254 GB 4943.1 GB 17625.1

Wichtige Sicherheits-Hinweise

1. Bitte lesen Sie diese Hinweis sorgfältig durch.

2. Heben Sie diese Anleitung fűr den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromentz zu trennen. Verwenden Sie keine Flüssig-oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschluß-Steckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schűtzen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Beachten Sie beim Anschluß ans Stromnetz die Anschlußwerte.

8. Dieses Gerät kann bis zu einer Außentemperatur von maximal 40℃ betrieben werden.

Battery safety warning:

DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal

waste.

- ii -

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

“VORSICHT”

Explosionsgefahr bei unsachgemäßen Austaush der Batterie. Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angabren

des Herstellers.

Class B:

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/ TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the

user's authority to operate the equipment.

RF exposure warning (WiFi)

This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be providing with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

- iii -

The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels.

RF exposure warning (For Bluetooth)

The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or

transmitter.

Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This device has been evaluated for and shown compliant with the IC Specific Absorption

Rate (“SAR”) limits when installed in specific host products operated in portable

exposure conditions. (For WiFi)

This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body). (For Bluetooth)

Canada, avis d'Industry Canada (IC)

Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210.

Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.

- iv -

Informations concernant l'exposition aux fréquences radio (RF)

La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la

limite(1.6W/Kg) d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez

l’appareil de sans fil Dell de façon à minimiser les contacts humains lors du

fonctionnement normal.

Ce dispositif a été évalué pour et démontré conforme à la Taux IC d'absorption spécifique ("SAR") des limites(1.6W/Kg) lorsqu'il est utilisé dans des conditions d'exposition portatifs. (For WiFi)

Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20 cm du corps d'une personne). (For Bluetooth)

电池安全警告： ◎ 勿将电池扔于火中。 ◎ 勿将电池接点短路。 ◎ 不可拆解电池。 ◎ 不乱将电池当成一般废弃物处理。 ◎ 打叉的垃圾桶符号表示电池不应该被放置到一般废弃堆中。

注意: ◎ 更换不正确型号类型的电池, 将产生爆炸危险。 ◎ 请根据使用说明处理用过的电池。

- v -

Contents

1. Introduction ................................................................................................................ 1

1.1 Product Introduction ............................................................................................. 1

1.2 Product Features ................................................................................................... 2

1.2.1 Printer Standard Features ................................................................................................ 2

1.2.2 Printer Optional Features ................................................................................................ 3

1.3 General Specifications .......................................................................................... 5

1.4 Print Specifications ............................................................................................... 5

1.5 Media Specifications ............................................................................................. 6

2. Operations Overview .................................................................................................. 7

2.1 Unpacking and Inspection .................................................................................... 7

2.2 Printer Overview .................................................................................................. 8

2.2.1 Front View ............................................................................................................................. 8

2.2.2 Rear View .............................................................................................................................. 9

2.3 Operator Control ................................................................................................ 10

2.3.1 LED Indication and Keys ................................................................................................ 10

2.3.2 LED Indication and Keys for LCD (Option) ............................................................... 11

3. Setup .......................................................................................................................... 12

3.1 Install the Belt Clip and Battery .......................................................................... 12

3.2 Charge the Battery ............................................................................................... 13

3.2.1 Charge the Battery ............................................................................................................ 13

3.3 Loading the Media ............................................................................................... 14

3.3.1 Loading the Media ............................................................................................................ 14

3.3.2 Loading Media in Peel-off Mode .................................................................................. 16

3.3.3 Loading the Fan-fold/External Media ........................................................................ 19

3.3.4 Loading the Linerless Media (Option) ....................................................................... 21

3.4 Connecting the Printer ...................................................................................... 22

3.4.1 Cable Communications ................................................................................................... 22

3.4.2 Wireless Communications with Bluetooth ............................................................... 22

3.4.3 Wireless Communications with Wi-Fi (Option) ..................................................... 23

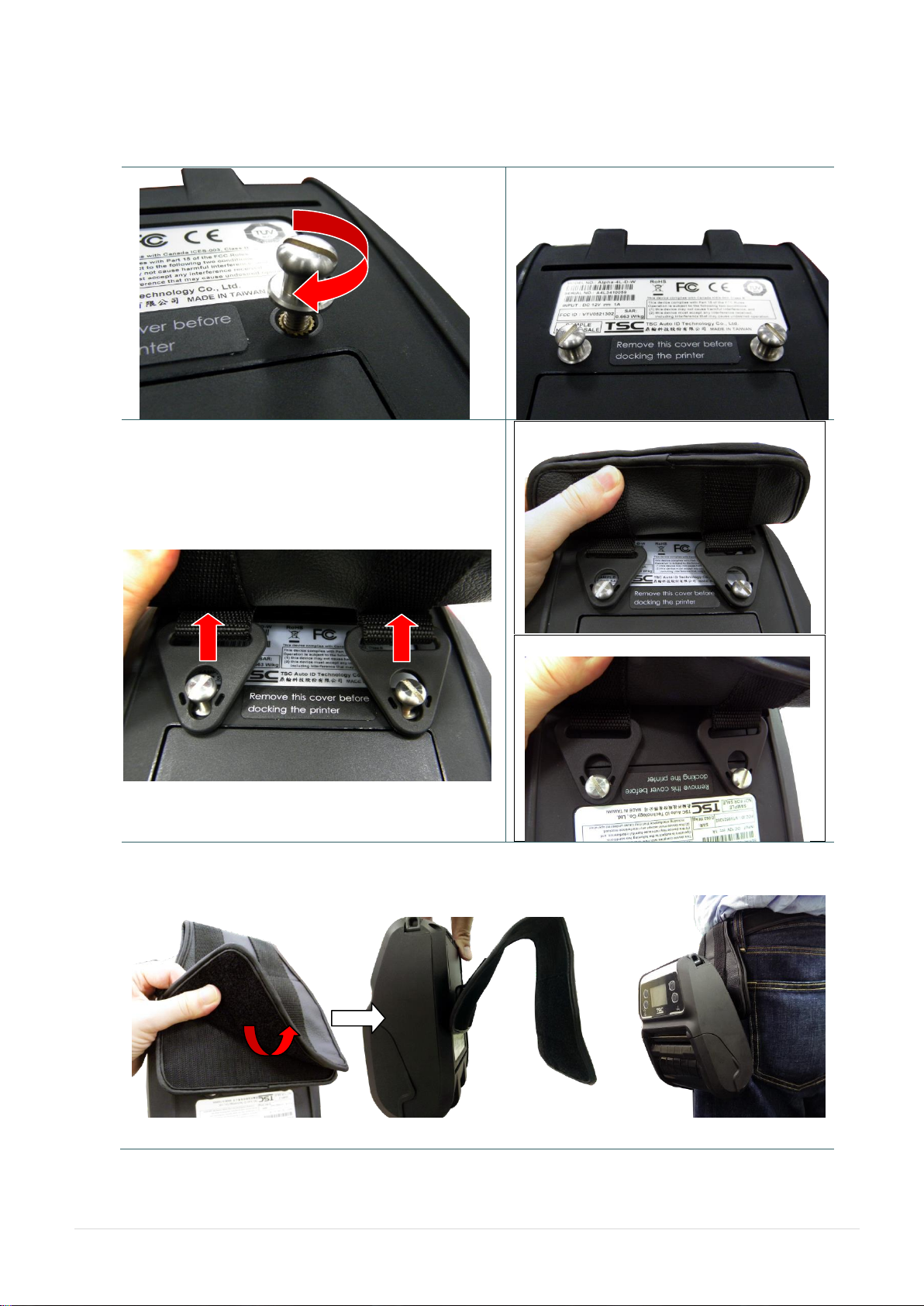

3.5 Install the IP54-rated Environmental Case with Shoulder Strap (Option) ...... 24

3.6 Install the Adapter for 0.75” and 1” Paper Core (Option) ................................. 25

- vi -

3.7 Install the Belt Strap (Option/ Standard for linerless model) ........................... 27

4. Power-on Utilities .................................................................................................... 29

4.1 Power-on Utility for Standard Panel .................................................................. 29

4.1.1 Media Sensor Calibration ............................................................................................... 30

4.1.2 Self-test and Dump Mode ............................................................................................... 30

4.1.3 Printer Initialization ........................................................................................................ 31

4.2 Power-on Utility for LCD Panel (Option) .......................................................... 32

4.2.1 Media Sensor Calibration ............................................................................................... 32

4.2.2 Self-test and Dump Mode ............................................................................................... 33

4.2.3 Printer Initialization ....................................................................................................... 34

4.3 Self-test ............................................................................................................... 35

4.4 Dump mode ........................................................................................................ 36

4.5 Printer defaults ................................................................................................... 37

5. Diagnostic Tool ......................................................................................................... 38

5.1 Start the Diagnostic Tool .................................................................................... 38

5.2 Printer Function ................................................................................................. 39

5.3 Setting Bluetooth by Diagnostic Tool ................................................................ 40

5.4 Setting Wi-Fi by Diagnostic Tool (Option) ......................................................... 41

6. LCD Menu Function (Option) .................................................................................. 42

6.1 How to use the LCD to set the printer ................................................................ 42

6.2 Main Menu Overview ......................................................................................... 44

6.3 Setup ................................................................................................................... 45

6.3.1 Printer Setup ...................................................................................................................... 45

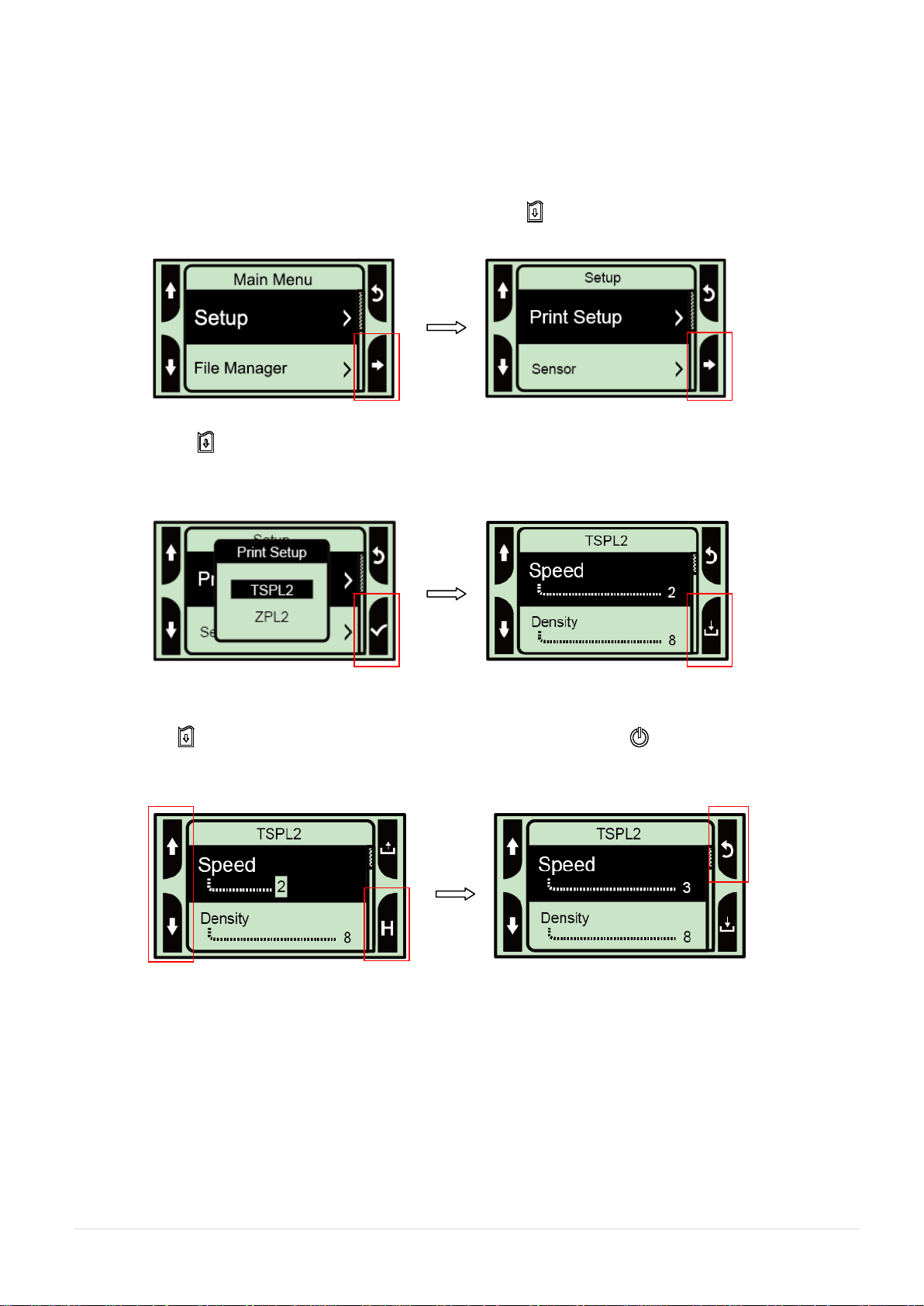

6.3.1-1 Printer setup for TSPL2 ............................................................................................... 45

6.3.1-2 Printer setup for ZPL2 ................................................................................................. 47

6.3.2 Sensor................................................................................................................................... 49

6.3.3 Serial Comm. ...................................................................................................................... 50

6.3.4 Wireless LAN ..................................................................................................................... 51

6.3.5 Bluetooth ............................................................................................................................. 52

6.3.6 Date Time ............................................................................................................................ 52

6.3.7 Display .................................................................................................................................. 53

6.4 File Manager ...................................................................................................... 54

6.5 Diagnostics ......................................................................................................... 55

- vii -

6.5.1 Print Config. ....................................................................................................................... 55

6.5.2 Dump Mode ........................................................................................................................ 55

6.5.3 Battery .................................................................................................................................. 56

6.5.4 Print Head ........................................................................................................................... 56

6.6 Language ............................................................................................................ 57

6.7 Service ................................................................................................................. 57

7. Troubleshooting ....................................................................................................... 58

8. Maintenance ............................................................................................................. 60

Revise History ................................................................................................................61

- viii -

1. Introduction

1.1 Product Introduction

Thank you very much for purchasing TSC bar code printer.

Enjoy TSC’s reputation for cost-efficient, high durability printers with the Alpha-4L economical receipt printer. The Alpha-4L is a comfortable, light-weight printer capable of working with any mobile receipt printing application where you need quick, simple receipts on demand. Our Alpha-4L is designed for a rough life, inside the IP54-rated environmental case to resist dust and water and with its rubber over-mold design prepared to take up to a five foot fall and keep printing. These small and light printers can be worn comfortably for a full shift, without interfering with the user’s tasks. Use USB, Bluetooth, optional Wireless or serial to connect to a mobile computer or even a smart phone and produce clear easy-toread receipts hour after hour.

This document provides an easy reference for operating the Alpha-4L.

To print label formats, please refer to the instructions provided with your labeling software; if you need to write the custom programs, please refer to the TSPL/TSPL2 programming manual that can be found on the accessories CD-ROM or on TSC website at

http://www.tscprinters.com.

− Applications

 Portable point of sale  Retail item marking, markdowns, shelf labeling & shelf talkers  Labels for shipping & receiving  Inventory control  Cross-docking  Pick, pack & apply operations  Print pick tickets  Logistics receipts

Product standard feature

Direct thermal printing

Black mark reflective sensor (center position , black mark in back side)

Gap transmissive sensor (Fixed, center of offset 2.75 mm to right from center)

Head open sensor

Peeler sensor

2 operation buttons (On/off and feed)

3 LEDs for printer status, 3 LEDs for battery status

USB 2.0 (full speed) interface

Class 2 Bluetooth 2.1 module

32 MB SDRAM memory

16 MB FLASH memory

Micro SD card reader for memory expansion up to SDHC 4G (max.)

DC 7.2V/5800 mAh Li-ion rechargeable battery

Real time clock

Powerful 32 bit 200 MHz RISC processor

Eltron

EPL and Zebra

ZPL emulation languages support

Internal 8 alpha-numeric bitmap fonts

Internal Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Fonts and bar codes can be printed in any one of the four directions (0, 90,180, 270 degree)

Downloadable fonts from PC to printer memory

Downloadable firmware upgrades

Bar code, graphics/image printing

Supported bar code

Supported image

1D bar code

2D bar code

BITMAP, BMP, PCX (Max. 256 colors graphics)

Code128 subsets A.B.C, Code128UCC, EAN128, Interleave 2 of 5, Code 39, Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar)

1.2 Product Features

1.2.1 Printer Standard Features

The printer offers the following standard features.

- 2 -

Code page

 Codepage 437 (English - US)  Codepage 737 (Greek)  Codepage 850 (Latin-1)  Codepage 852 (Latin-2)  Codepage 855 (Cyrillic)  Codepage 857 (Turkish)  Codepage 860 (Portuguese)  Codepage 861 (Icelandic)  Codepage 862 (Hebrew)  Codepage 863 (French Canadian)  Codepage 864 (Arabic)  Codepage 865 (Nordic)  Codepage 866 (Russian)  Codepage 869 (Greek 2)  Codepage 950 (Traditional Chinese)  Codepage 936 (Simplified Chinese)  Codepage 932 (Japanese)  Codepage 949 (Korean)  Codepage 1250 (Latin-2)  Codepage 1251 (Cyrillic)  Codepage 1252 (Latin-1)  Codepage 1253 (Greek)  Codepage 1254 (Turkish)  Codepage 1255 (Hebrew)  Codepage 1256 (Arabic)  Codepage 1257 (Baltic)  Codepage 1258 (Vietnam)  ISO-8859-1: Latin-1 (Western European)  ISO-8859-2: Latin-2 (Central European)  ISO-8859-3: Latin-3 (South European)  ISO-8859-4: Latin-4 (North European)  ISO-8859-5: Cyrillic  ISO-8859-6: Arabic  ISO-8859-7: Greek  ISO-8859-8: Hebrew  ISO-8859-9: Turkish  ISO-8859-10: Nordic  ISO-8859-15: Latin-9  UTF-8

Product option feature

User

option

Factory

option

2” LCD (Liquid crystal display), 128 x 64 pixels resolution w/white LED backlight (with 4 buttons and 2 LEDs)

○

WiFi module

○

Zebra® CPCL emulation language support

○

Media sensor position (position selectable – right/left/center position-factory adjustment, default – center position)

○

Linerless kit

○

1.2.2 Printer Optional Features

The printer offers the following optional features.

- 3 -

Mini USB cable

○

Mini USB to RS-232 (serial) converter cable

○

IP54-rated environmental case with shoulder strap (for standard model)

○

IP54-rated environmental case (for standard model)

○

IP54-rated environmental case with shoulder strap (for linerless model)

○

IP54-rated environmental case (for linerless model)

○

Shoulder strap

○

Vehicle power adaptor

○

DC 7.2V/5800 mAh Li-ion rechargeable battery

○

Charger station 1 cell

○

Charger station 4 cell

○

Belt strap ( standard for linerless model)

○

Adapter for 0.75” & 1” paper core ( standard for linerless model) ○

- 4 -

General Specifications

Physical dimensions

160 mm (W) x 191.6 mm (H) x 79 mm (D)

Mechanism

Plastic with rubber over molded

Weight

0.945 kg (w/o battery)

Power

External power adapter Input: AC 100-240V Output: DC 12V 1A

Environmental condition

Operation: -10 ~ 50˚C (14 ~ 122˚F) Storage: -40 ~ 60 ˚C (-40 ~ 140˚F) Relative humidity: 10 ~ 90% non-condensing IP54 w/ IP54-rated environmental case Drop 1.5m (5ft) Drop 1.8m (6.5ft) w/ IP54-rated environmental case

Battery Spec

 Charging time: 5~6 hr  Standby mode (Bluetooth): up to 55 hr  Standby mode (Wi-Fi): up to 40 hr  Printing: one label per 2 minutes,

Condition

Endurance (hr)

4”x6” Labels

Density 3

780

Density 8

650

Charging capability

Internal charging capability (battery-in) Auto-switching AC adapter 12-24VDC automobile cigarette lighter plug External charging capability (battery-out) 1 battery charger station 4 battery charger station

Print Specifications

Print head resolution (dots per inch/mm)

203 dots/inch (8 dots/mm)

Printing method

Direct thermal

Dot size (width x length)

0.125 x 0.125 mm (1 mm = 8 dots)

Print speed (inches per second)

Max. 4 ips (100 mm/sec)

2,3 ips for peeler mode

Max. print width

4.09” (104 mm)

Max. print length

90” (2286 mm)

Printout bias

Vertical: 1 mm max. Horizontal: 1 mm max.

1.3 General Specifications

1.4 Print Specifications

- 5 -

Media Specifications

Media roll capacity

Max. 2.65” (67.3 mm) OD

Media core diameter

12.7 mm ~ 25.4 mm (0.5” ~ 1”) ID core

Media type

Continuous, die-cut, black mark, External fanfold, receipt, Linerless label (w/ linerless kit)

Media wound type

Outside wound

Media width

50.8 mm ~ 112 mm

Media thickness

0.055 mm ~ 0.165 mm

Label length

12.7 mm ~ 2286 mm

Label length (peeler mode)

25.4 ~ 152.4 mm (1” ~ 6”)

External fan-fold media

Stack height: 70 mm (2.75”) Page length: 152 mm ~ 305 mm (6” ~ 12”)

Black mark

Min. 8 mm (W) x 2 mm (H)

Gap height

Min. 2 mm

1.5 Media Specifications

- 6 -

 One printer unit  One Li-ion rechargeable battery (5800 mAh)  One Windows labeling software/Windows driver CD disk  One quick installation guide  One auto-switching AC adaptor  One belt clip

2. Operations Overview

2.1 Unpacking and Inspection

This printer has been specially packaged to withstand damage during shipping. Please carefully inspect the packaging and printer upon receiving the bar code printer. Please retain the packaging materials in case you need to reship the printer.

Unpacking the printer, the following items are included in the carton.

If any parts are missing, please contact the Customer Service Department of your purchased reseller or distributor.

- 7 -

1. Power on/off button

2. Feed button

3. Printer status LED indicator

4. Battery status LED indicator

5. Media cover release button

6. Peel-off sensor (Without for linerless model)

7. Print head

8. Transmissive sensor – Gap sensor

9. Media holder lock switch

10. Media holder

11. Media cover

12. Reflective sensor – Black mark sensor

13. Platen roller

14. Tear/Peeler bar (Without for linerless model)

15. Peeler module

8 7

5 10

2.2 Printer Overview

2.2.1 Front View

Note:

* The media sensor position is selectable by factory adjustment. Please refer to this figure

for default settings. (Default – center position)

* For LCD control panel (option), please refer to subsection 2.3.2 for more details.

- 8 -

SD card spec

SD card capacity

Approved SD card manufacturer

V1.0, V1.1

MicroSD 128 MB

Transcend, Panasonic

V1.0, V1.1

MicroSD 256 MB

Transcend, Panasonic

V1.0, V1.1

MicroSD 512 MB

Transcend, Panasonic

V1.0, V1.1

MicroSD 1 GB

Transcend, Panasonic

V2.0 SDHC CLASS 6

MicroSD 4 GB

Transcend

- The DOS FAT file system is supported for the SD card.

- Folders/files stored in the SD card should be in the 8.3 filename format

1. Li-ion battery

2. Belt chip

3. Battery open clasp

4. Hanger for shoulder strap

5. External label entrance chute

6. USB interface

7. * MicroSD card socket

8. Power jack

6 5

2.2.2 Rear View

Note: * Recommended MicroSD card specification.

- 9 -

Keys

Function

− Press and hold for 2-3 seconds to turn on the printer

− Press and hold for 2-3 seconds to turn off the printer

− Ready status: Feed one label

− Printing status: Pause the print job

LEDs

Status

Indication

Green (solid) Full charged

2/3 charged level

Green (solid)

1/3 charged level

Green (blinking)

Low battery

Amber (solid)

Battery is charging

Blue (solid)

Bluetooth device is ready

Blue (blinking)

Bluetooth device is communicating

Blue (solid)

WiFi device is ready

Blue (blinking)

WiFi device is communicating

Note: WiFi device is optional.

Off

Printer is ready

Green (blinking)

− Printer is paused

− Printer is downloading data

Red (solid)

− Media cover is open

− Out of memory

Red (blinking)

− No paper

− Paper jam

Amber (solid)

− Clean data

− Printer is busy

2.3 Operator Control

2.3.1 LED Indication and Keys

- 10 -

Keys

Function

− Display the printer information

− Button for LCD setting menu

− Enter the printer setting menu

− Button for LCD setting menu

− Press and hold for 2-3 seconds to turn on the printer

− Press and hold for 2-3 seconds to turn off the printer

− Button for LCD setting menu

− Ready status: Feed one label

− Printing status: Pause the print job

− Button for LCD setting menu

LEDs

Status

Indication

Error

Off

Printer is ready

Red (solid)

− Media cover is open

− Out of memory

− Clean data

− Printer is busy

Red (blinking)

− No paper

− Paper jam

Power

Off

Printer power is turned off

Green (solid)

− Printer power is turned on

− Battery is full charged

Green (blinking)

Low battery

Amber (solid)

Battery is charging

LCD

Indication

Printer has been connected with cable

Bluetooth devices have been paired

Wi-Fi device has been connected

Battery capacity %

2.3.2 LED Indication and Keys for LCD (Option)

Note: Please refer to the section 6 for more details about LCD.

- 11 -

1. Insert the belt clip first.

2. Insert the left side to install the

battery at the rear of the printer.

3. Push the right side of the

battery.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery. DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

PUSH

3. Setup

3.1 Install the Belt Clip and Battery

- 12 -

1. The battery is installed into the

printer.

2. Open the interface cover and plug

the power cord to the power jack.

3. Plug the power cord into a properly

power outlet.

Note: Please switch OFF printer power prior to plug in the power cord to printer power jack. When the battery is charging, please do not remove the battery from the printer, otherwise, please re-plug the power cord into a power outlet.

Standard panel:

LCD panel: (option)

4. When the battery is changing, the

color of battery status LED indicator is solid amber.

Note: The battery is completely charged and the amber of LED indicator will turn to green.

3.2 Charge the Battery

It takes 5~6 hours to fully charge the battery before the first time usage. The lifetime of the battery is 300 times for charge/discharge cycles.

3.2.1 Charge the Battery

- 13 -

+ 49 hidden pages

TSC Auto ID Technology RFWKD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

1.1 Product Introduction

1.2 Product Features

1.2.1 Printer Standard Features

1.2.2 Printer Optional Features

1.3 General Specifications

1.4 Print Specifications

1.5 Media Specifications

2. Operations Overview

2.1 Unpacking and Inspection

2.2 Printer Overview

2.2.1 Front View

2.2.2 Rear View

2.3 Operator Control

2.3.1 LED Indication and Keys

2.3.2 LED Indication and Keys for LCD (Option)

3. Setup

3.1 Install the Belt Clip and Battery

3.2 Charge the Battery

3.2.1 Charge the Battery
