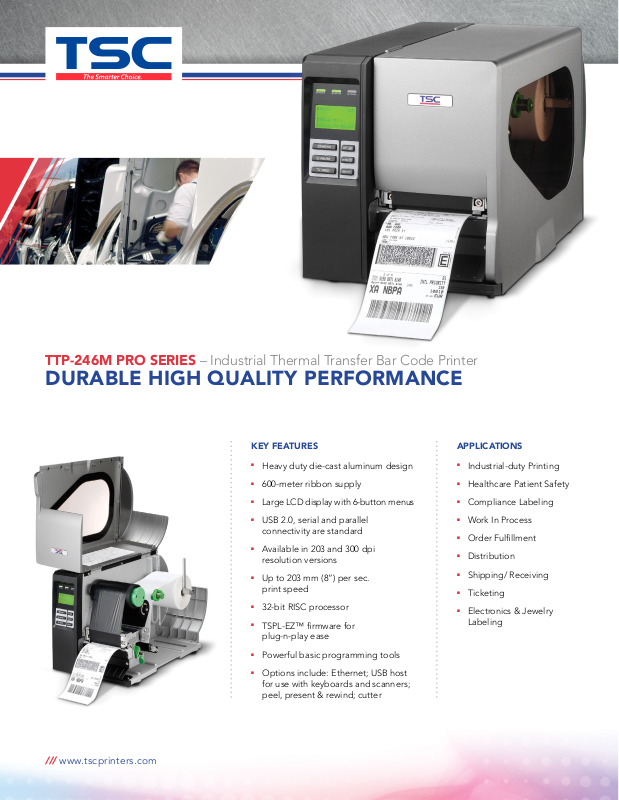

TTP-246M PRO SERIES – Industrial Thermal Transfer Bar Code Printer

DURABLE HIGH QUALITY PERFORMANCE

KEY FEATURES

n

Heavy duty die-cast aluminum design

n

600-meter ribbon supply

n

Large LCD display with 6-button menus

n

USB 2.0, serial and parallel

connectivity are standard

n

Available in 203 and 300 dpi

resolution versions

n

Up to 203 mm (8”) per sec.

print speed

n

32-bit RISC processor

n

TSPL-EZ™ firmware for

plug-n-play ease

n

Powerful basic programming tools

n

Options include: Ethernet; USB host
for use with keyboards and scanners;
peel, present & rewind; cutter

APPLICATIONS

n

Industrial-duty Printing

n

Healthcare Patient Safety

n

Compliance Labeling

n

Work In Process

n

Order Fulfillment

n

Distribution

n

Shipping/ Receiving

n

Ticketing

n

Electronics & Jewelry

Labeling

/// www.tscprinters.com

TTP-246M PRO SERIES – Industrial Thermal Transfer Bar

Code Printer

PRINTER MODEL TTP-246M Pro TTP-344M Pro

Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Printing method Thermal Transfer & Direct Thermal
Max. print speed 203 mm (8”)/second 152 mm (6”)/second
Max. print width 108 mm (4.25”) 104 mm (4.09”)
Max. print length 2,286 mm (90”) 1,016 mm (40”)
Enclosure Die-cast aluminum base and frame/Metal cover with large clear media view window

Physical dimension
Weight 15 kg (33.07 lbs)

Label roll capacity 208.3 mm (8.2” ) OD
Ribbon 600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)
Ribbon width 25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Processor 32-bit RISC CPU

Memory

Interface

Power

• 4 MB Flash memory

• 8 MB SDRAM

• SD Flash memory card reader for Flash memory expansion, up to 4 GB (dealer option)

• RS-232

• Centronics

• USB 2.0

• USB host, for scanner or PC keyboard (factory option)

• PS/2 keyboard (dealer option)

• Internal Ethernet, 10/100 Mbps (dealer option)

• GPIO (dealer option)

• Bluetooth (user option)
Internal switching power supply

• Input: AC 100-240V, 3A, 50-60Hz

• Output: DC 24V, 3.3A, 80W

LCD Graphic type, 128 x 64 pixel, with back light
Operation switch, button 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select) & 3 LEDs

• Gap transmissive sensor (position adjustable)

Sensors

• Black mark reflective sensor (position adjustable)

• Head open sensor

• Ribbon end sensor

Real time clock Standard

Internal fonts

Bar code

• 8 alpha-numeric bitmap fonts

• Monotype Imaging

• 1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Logmars

• 2D bar code
PDF-417, Maxicode, DataMatrix, QR code, Aztech

®

true type font engine with one CG Triumvirate Bold Condensed scalable font

Font and barcode rotation 0, 90, 180, 270 degree
Printer language TSPL-EZ
Media type Continuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
Media width 25.4 ~ 118 mm (1" ~ 4.6")
Media thickness 0.06 ~ 0.30 mm (2.36 ~ 11.81 mil)
Media core diameter 25.4 ~ 76.2 mm (1” ~ 3”)

Label length 5 ~ 2,286 mm (0.20” ~ 90”) 5 ~ 1,016 mm (0.20” ~ 40”)

Environment condition
Safety regulation FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CCC, CB

Environmental concern Comply with RoHS, WEEE

• Windows labeling software CD disk

Accessories

Limited warranty

• Quick start guide

• USB cable

• Power cord

• Printer: 2 years

• Print head: 25 km (1 million inches) or 12 months which comes first

• Platen: 50 km (2 million inches) or 12 months which comes first

Factory options N/A

• Internal rewinding kit

• Peel-off kit

Dealer options

User options

Multi-interface board:

• Configuration 1: Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash memory card reader

• Configuration 2: USB host + Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash memory card reader

• Configuration 3: GPIO interface + USB host + Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash
memory card reader

• Bluetooth module (serial interface)

• Regular cutter (full cut guillotine cutter)

• Heavy duty cutter (rotary cutter)

• Care label cutter (rotary cutter)

• KP-200 Plus series keyboard

• KU-007 Plus programmable smart keyboard

270 mm (W) x 308 mm (H) x 505 mm (D)

10.63” (W) x 12.13” (H) x 19.88” (D)

TM

(Compatible to EPL, ZPL, ZPL II)

Operation: 5 ~ 40°C, 20 ~ 85% non-condensing

Storage: -40 ~ 60°C, 5 ~ 90% non-condensing
