TSC TTP 244M Pro Series Quick Installation Manual

1

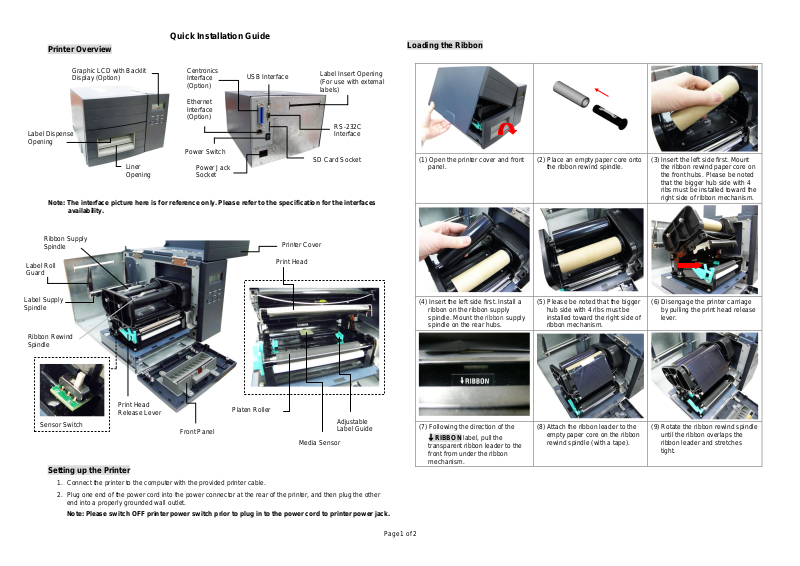

Quick Installation Guide

(1) Open the printer cover and front

panel.

(2) Place an empty paper core onto

the ribbon rewind spindle.

(3) Insert the left side first. Mount

the ribbon rewind paper core on
the front hubs. Please be noted
that the bigger hub side with 4
ribs must be installed toward the
right side of ribbon mechanism.

(4) Insert the left side first. Install a

ribbon on the ribbon supply
spindle. Mount the ribbon supply
spindle on the rear hubs.

(5) Please be noted that the bigger

hub side with 4 ribs must be
installed toward the right side of
ribbon mechanism.

(6) Disengage the printer carriage

by pulling the print head release
lever.

(7) Following the direction of the
 RIBBON label, pull the

transparent ribbon leader to the
front from under the ribbon
mechanism.

(8) Attach the ribbon leader to the

empty paper core on the ribbon
rewind spindle (with a tape).

(9) Rotate the ribbon rewind spindle

until the ribbon overlaps the
ribbon leader and stretches
tight.

Print Head

Adjustable
Label Guide

Media Sensor

Platen Roller

Sensor Switch

Label Roll
Guard

Label Supply
Spindle

Ribbon Supply
Spindle

Ribbon Rewind
Spindle

Print Head
Release Lever

Printer Cover

Front Panel

Label Dispense
Opening

Liner
Opening

Graphic LCD with Backlit
Display (Option)

Power Jack
Socket

RS-232C
Interface

Centronics
Interface
(Option)

USB Interface

Power Switch
SD Card Socket

Ethernet
Interface
(Option)

Label Insert Opening
(For use with external
labels)

Printer Overview

Note: The interface picture here is for reference only. Please refer to the specification for the interfaces

availability.

Loading the Ribbon

Setting up the Printer

1. Connect the printer to the computer with the provided printer cable.

2. Plug one end of the power cord into the power connector at the rear of the printer, and then plug the other
end into a properly grounded wall outlet.

Note: Please switch OFF printer power switch prior to plug in to the power cord to printer power jack.

Page of 2

2

Loading the Label

(1) Open the printer cover, front

panel and print head release
lever.

(2) Lower the label roll guard to the

horizontal position, slide the label
roll into onto the (external) label
supply spindly, and then flip back
the label roll guard.

(3) Install the label so that it goes

(when using an external label
roll mount: through the label
feed slot) in the direction of the

 LABEL label and under the
ribbon mechanism to lay upon
the platen.

(4) Adjust the label guide to fit the

width of the label.

(5) Engage the printer carriage.

Select the using label type by
sensor switch.

“M” for single column label
“R” for double column label

(6) Close the printer cover and

front panel.

(7) Use “Diagnostic Tool” to set the media sensor type and calibrate the selected sensor. (Start the “Diagnostic

tool”  Select the “Printer Configuration” tab  Click the “Calibrate Sensor” button)

Note:

 When switched on, the printer will automatically detect whether ribbon is installed to set printer

to direct thermal or thermal transfer mode. As such, to use thermal transfer mode, be sure to
install the ribbon, the label, and engage the ribbon mechanism before you switch on the printer.
To use direct thermal mode, install the label and engage the ribbon mechanism before switching
on the printer.

 Please calibrate the gap/black mark sensor when changing the media.
 When the printer is out of ribbon or label, the ON-LINE LED will not come on and the ERROR

LED will flash. Reload the ribbon or media without turning off the printer. Press the FEED button
a few times until the ON-LINE LED illuminates, the printing job will be resumed without data
loss.

 To use the self-peeling function (option), tear off the first few labels, turn the print head release

lever backwards, guide the backing paper over the (metal) label stripper and then downwards
insert it between the platen and the self-peeling rod.

The Diagnostic Utility toolbox allows users to explore and change printer status and settings. Downloading graphics,
fonts, firmware to the printer can be accomplished using this utility, as well as creating bitmap fonts. The Diagtools
can be used to send additional commands to the printer and troubleshoot any issues during use.

Note: The Diagnostic Utility requires printer firmwares V6.00 and above.

Start the Diagnostic Tool:

(1) Double click the Diagnostic tool icon ( ) to start the software.
(2) Four features (Printer Configuration, File Manager, Bitmap Font Manager, Command Tool) are included in the

Diagnostic utility.

(3) The Printer Functions group provides the following options:

Function

Description

Calibrate Sensor

Calibrate the sensor specified in the Printer
Setup group media sensor field

Ethernet Setup

Setup the IP address, subnet mask, gateway for
the on board Ethernet

RTC Time

Synchronize printer Real Time Clock with PC

Print Test Page

Print a test page

Reset Printer

Reboot printer

Factory Default

Initialize the printer and restore the settings to
factory default.

Dump Text

To activate the printer dump mode.

Ignore AUTO.BAS

Ignore the downloaded AUTO.BAS program

Configuration Page

Print printer configuration

Features Tab

Printer Functions

Interface

Printer Status

Printer Setup

Diagnostic Tool

Page of 2 P/N: 39-0182001-00LF

For further information on printer operation, please refer to the user's manual in Driver CD disc.
Specifications, accessories, parts and programs are subject to change without notice.
