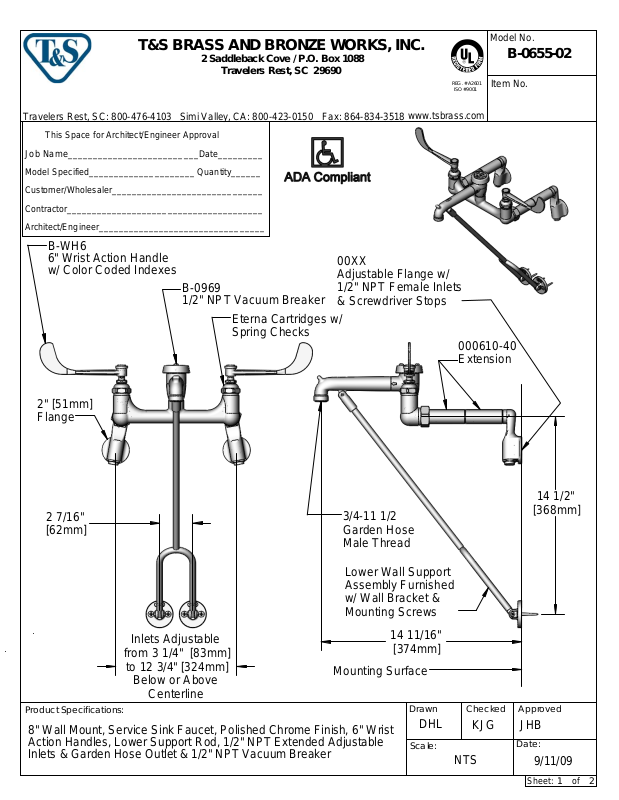

T & S Brass & Bronze Works B-0655-02 General Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
B-WH6
6" Wrist Action Handle
w/ Color Coded Indexes
Simi Valley, CA: 800-423-0150
B-0969
1/2" NPT Vacuum Breaker
Eterna Cartridges w/
Spring Checks
Fax: 864-834-3518
www.tsbrass.com
00XX
Adjustable Flange w/
1/2" NPT Female Inlets
& Screwdriver Stops
Model No.
REG. #A2601
ISO #9001
Item No.
000610-40
Extension
B-0655-02
2" [51mm]
Flange
2 7/16"
[62mm]
3/4-11 1/2
Garden Hose
Male Thread
Lower Wall Support
Assembly Furnished
w/ Wall Bracket &
Mounting Screws
Inlets Adjustable
from 3 1/4" [83mm]
to 12 3/4" [324mm]
Mounting Surface
Below or Above
Centerline
Product Specifications:
8" Wall Mount, Service Sink Faucet, Polished Chrome Finish, 6" Wrist
Action Handles, Lower Support Rod, 1/2" NPT Extended Adjustable
Inlets & Garden Hose Outlet & 1/2" NPT Vacuum Breaker
14 11/16"
[374mm]
Drawn
DHL
Scale:
Checked
KJG
NTS
14 1/2"
[368mm]
Approved
JHB
Date:
9/11/09
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
ITEM NO. SALES NO. DESCRIPTION
1 015476-40 Lower Support Rod Assembly w/ Mounting Screws
2 016450-40 Spout Assembly, Polished Chrome w/ Bottom Support
3 002534-25 Close Nipple, 1/2" x 1 5/32" Lg Rough Chrome
4 001194-45 Red HW Index
5 000925-45 Lab Handle Screw
6 012443-40 Hot Eterna Spindle Assembly w/ Spring Check
7 B-0969 Vacuum Breaker, 1/2"
8 012442-40 Cold Eterna Spindle Assembly w/ Spring Check
9 001019-45 Coupling Nut Washer
10 001686-45 Blue CW Index
11 B-WH6 6" Wrist Action Handle
12 000610-25 Extension, 2 3/4" Long
13 000721-25 Flange Coupling Nut
14 163A BST Assembly, 163A
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
B-0655-02
Item No.
4
5
6
7
2
3
1
10
11
8
12
9
13
14
Product Specifications:
8" Wall Mount, Service Sink Faucet, Polished Chrome Finish, 6" Wrist
Action Handles, Lower Support Rod, 1/2" NPT Extended Adjustable
Inlets & Garden Hose Outlet & 1/2" NPT Vacuum Breaker
Drawn
DHL JHB
Scale:
Checked
KJG
Approved
Date:
NTS
Sheet:
9/11/09
2
of
2
