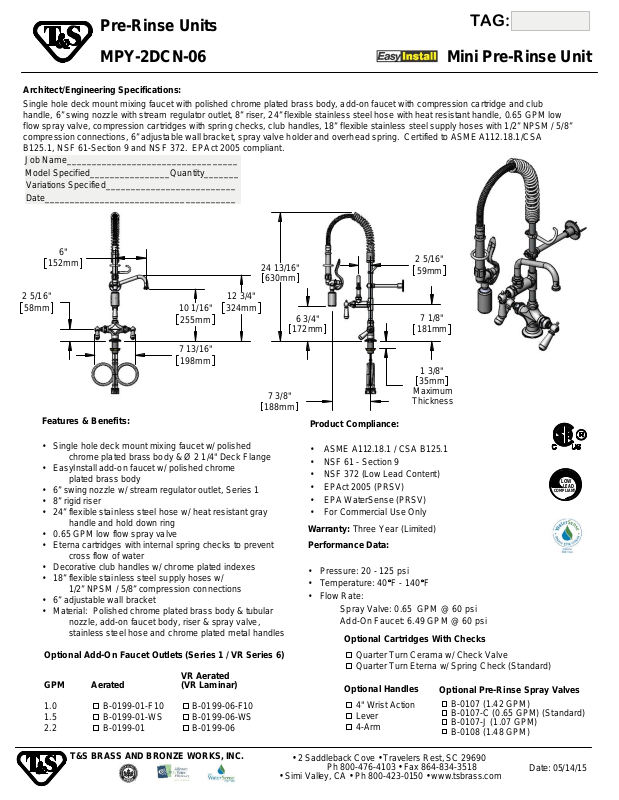

T&S Brass MPY-2DCN-06 User Manual
Pre-Rinse Units
TAG:
MPY-2DCN-06
Architect/Engineering Specifications:
Single hole deck mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and club
handle, 6” swing nozzle with stream regulator outlet, 8” riser, 24” flexible stainless steel hose with heat resistant handle, 0.65 GPM low
flow spray valve, compression cartridges with spring checks, club handles, 18” flexible stainless steel supply hoses with 1/2” NPSM / 5/8”
compression connections, 6” adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA
B125.1, NSF 61-Section 9 and NSF 372. EPAct 2005 compliant.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
6"
152mm
58mm
Features & Benefits:
24 13/16"
630mm
2 5/16"
10 1/16"
324mm
255mm
7 13/16"
198mm
12 3/4"
6 3/4"
172mm
7 3/8"
188mm
Product Compliance:
2 5/16"
7 1/8"
Maximum
Thickness
Mini Pre-Rinse Unit
59mm
181mm
1 3/8"
35mm
Single hole deck mount mixing faucet w/ polished •
chrome plated brass body & Ø 2 1/4" Deck Flange
EasyInstall add-on faucet w/ polished chrome •
plated brass body
6” swing nozzle w/ stream regulator outlet, Series 1•
8” rigid riser•
24” flexible stainless steel hose w/ heat resistant gray •
handle and hold down ring
0.65 GPM low flow spray valve •
Eterna cartridges with internal spring checks to prevent•
cross flow of water
•
Decorative club handles w/ chrome plated indexes
18” flexible stainless steel supply hoses w/
•
1/2” NPSM / 5/8” compression connections
6” adjustable wall bracket
•
•
Material: Polished chrome plated brass body & tubular
nozzle, add-on faucet body, riser & spray valve,
stainless steel hose and chrome plated metal handles
Optional Add-On Faucet Outlets (Series 1 / VR Series 6)
GPM
1.0
1.5
2.2 B-0199-01
Aerated
B-0199-01-F10
B-0199-01-WS
VR Aerated
(VR Laminar)
B-0199-06-F10
B-0199-06-WS
B-0199-06
ASME A112.18.1 / CSA B125.1•
NSF 61 - Section 9
•
NSF 372 (Low Lead Content)•
EPAct 2005 (PRSV)•
EPA WaterSense (PRSV)•
For Commercial Use Only
•
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
Flow Rate: •
Three Year (Limited)
F - 140 F•
Spray Valve: 0.65 GPM @ 60 psi
Add-On Faucet: 6.49 GPM @ 60 psi
Optional Cartridges With Checks
Quarter Turn Cerama w/ Check Valve
Quarter Turn Eterna w/ Spring Check (Standard)
Optional Handles
4" Wrist Action
Lever
4-Arm
Optional Pre-Rinse Spray Valves
B-0107 (1.42 GPM)
B-0107-C (0.65 GPM) (Standard)
B-0107-J (1.07 GPM)
B-0108 (1.48 GPM)
LOW
LEAD
COMPLIANT
T&S BRASS AND BRONZE WO RKS, INC.
2 Saddleback Cove
•
Ph 800-476-4103 •• Fax 864-834-3518
Simi Valley, CA
•
• Travelers Rest, SC 29690
Ph 800-423-0150
•
www.tsbrass.com
