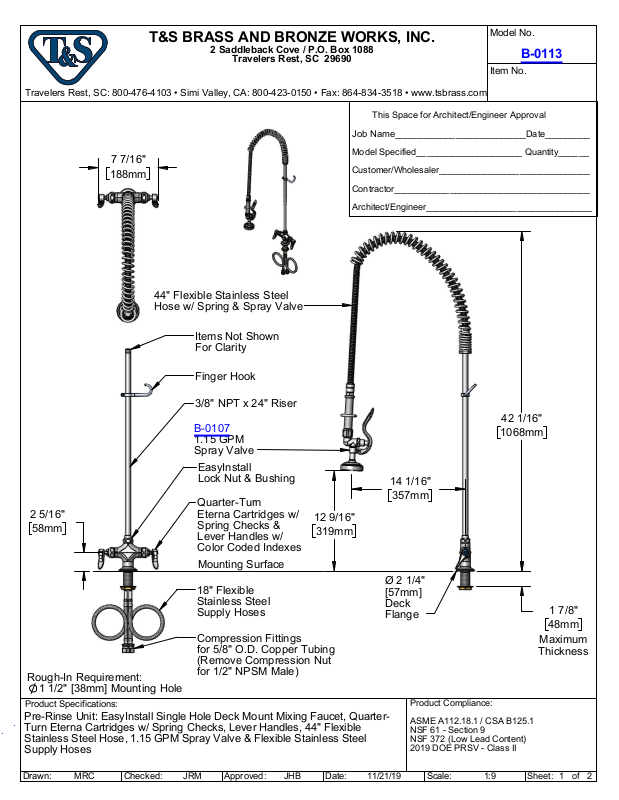

T&S Brass MCD-0113 Parts List
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
B-0113
Item No.
Job Name
7 7/16"
188mm
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
44" Flexible Stainless Steel
Hose w/ Spring & Spray Valve
Items Not Shown
For Clarity
Finger Hook
3/8" NPT x 24" Riser
B-0107
1.15 GPM
Spray Valve
EasyInstall
Lock Nut & Bushing
Quarter-Turn
2 5/16"
58mm
Eterna Cartridges w/
Spring Checks &
Lever Handles w/
12 9/16"
319mm
Color Coded Indexes
Mounting Surface
18" Flexible
Stainless Steel
Supply Hoses
Compression Fittings
for 5/8" O.D. Copper Tubing
(Remove Compression Nut
Rough-In Requirement:
for 1/2" NPSM Male)
1 1/2" [38mm] Mounting Hole
Product Specifications:
Pre-Rinse Unit: EasyInstall Single Hole Deck Mount Mixing Faucet, QuarterTurn Eterna Cartridges w/ Spring Checks, Lever Handles, 44" Flexible
Stainless Steel Hose, 1.15 GPM Spray Valve & Flexible Stainless Steel
Supply Hoses
__________________________Date_________
42 1/16"
1068mm
14 1/16"
357mm
Ø 2 1/4"
[57mm]
Deck
Flange
1 7/8"
48mm
Maximum
Thickness
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
2019 DOE PRSV - Class II
MRC
Checked:
Approved:Drawn:
JHB
11/21/19Date:
Scale:
1:9JRM
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
6
5
4
3
2
1
24
23
22
21
7
2
8
9
10
11
12
13
14
15
16
17
ITEM
NO.
10 000372-40 3/8" NPT x 24" Riser
11 EZ-K
12 001065-45 O-Ring
13 014200-45 Star Washer, Anti-Rotation
14 012442-40NS
15 002711-40NS
16 001638-45NS Lever Handle (New Style)
17 018506-19NS Blue Button Index, Press-in
18 002290-45 Lock Washer
19 000965-45 Lock Nut
20 012534-45 18" Flexible Supply Hose (2)
21 012443-40NS
22 002712-40NS
23 000925-45 Lab Handle Screw
24 001193-19NS Red Button Index, Press-in
SALES NO. DESCRIPTION
1 B-0107 1.15 GPM Spray Valve
2 010476-45 #27 Washer
3 000907-45 Spray Valve Hold Down Ring
4 002987-40 Grip Handle
5 001014-45 Washer, B-0100 Hose Barrel
6 B-0044-H2A
44" Flexible Stainless Steel Hose, Less
Handle
7 000888-45 EasyInstall Overhead Spring
8 000821-40 Spring Body
9 004R Finger Hook
EasyInstall Kit: Nut, Bushing, O-Ring &
Lock Washer
Quarter-Turn Eterna Cartridge w/
Spring Check, LTC
Quarter-Turn Eterna Cartridge w/
Spring Check, Handle, Blue Index &
Screw, LTC
Quarter-Turn Eterna Cartridge w/
Spring Check, RTC
Quarter-Turn Eterna Cartridge w/
Spring Check, Handle, Red Index &
Screw, RTC
Model No.
B-0113
Item No.
18
19
20
Product Specifications:
Pre-Rinse Unit: EasyInstall Single Hole Deck Mount Mixing Faucet, QuarterTurn Eterna Cartridges w/ Spring Checks, Lever Handles, 44" Flexible
Stainless Steel Hose, 1.15 GPM Spray Valve & Flexible Stainless Steel
Supply Hoses
MRC
Checked: Date:
JRM 11/21/19 Scale:
Approved:Drawn:
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
2019 DOE PRSV - Class II
NTS
of
2
2Sheet:JHB
