T&S Brass G016737-45 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
G016737-45
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
5 5/8"
4"
3 3/16"
5 1/4"
Fax: 864-834-3518
Stainless
Steel
1/2"
Typ
1/2"
Typ
www.tsbrass.com
Mounting Hardware
Not Included
6"
6 3/4"
5 7/16"

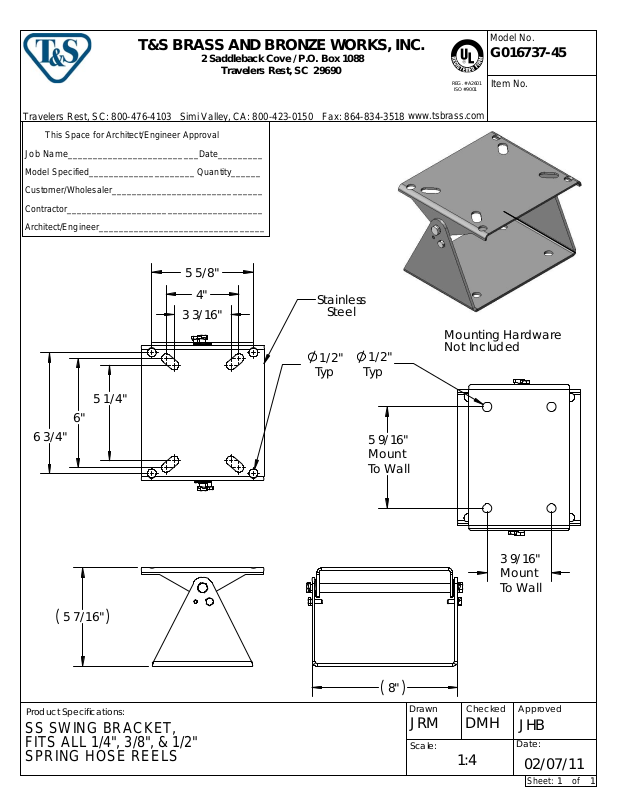

Product Specifications:
SS SWING BRACKET,
FITS ALL 1/4", 3/8", & 1/2"
SPRING HOSE REELS
5 9/16"
Mount
To Wall
8"
Drawn Checked
JRM
Scale:
DMH
1:4
3 9/16"
Mount
To Wall
Approved
JHB
Date:
02/07/11
Sheet:
of
1
1
