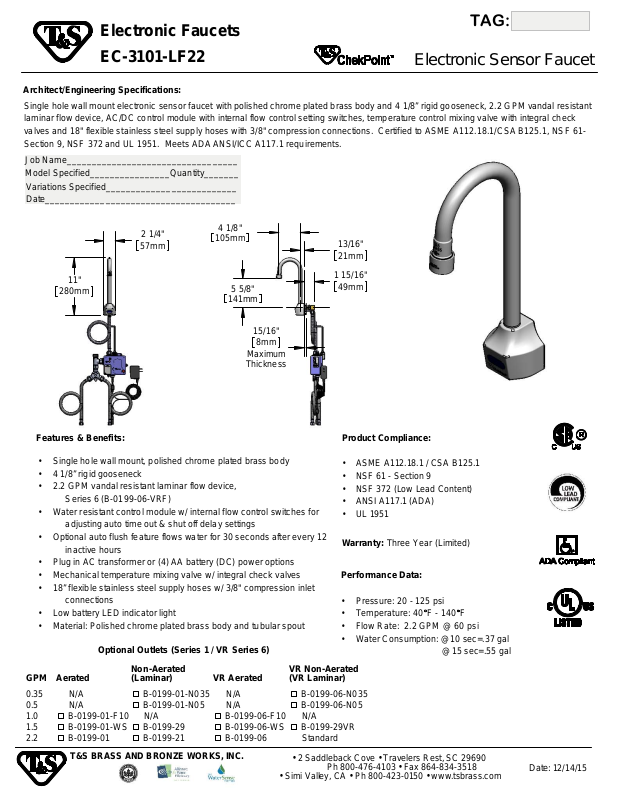

T&S Brass EC-3101-LF22 User Manual

Electronic Faucets

TAG:

EC-3101-LF22

Architect/Engineering Specifications:

Single hole wall mount electronic sensor faucet with polished chrome plated brass body and 4 1/8” rigid gooseneck, 2.2 GPM vandal resistant
laminar flow device, AC/DC control module with internal flow control setting switches, temperature control mixing valve with integral check
valves and 18" flexible stainless steel supply hoses with 3/8" compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61­Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.

Job Name__________________________________
Model Specified________________Quantity_______

Variations Specified__________________________
Date______________________________________

4 1/8"

105mm

5 5/8"

141mm

15/16"

8mm

Maximum

Thickness

13/16"

21mm

1 15/16"

49mm

11"

280mm

2 1/4"

57mm

Electronic Sensor Faucet

Features & Benefits:

Single hole wall mount, polished chrome plated brass body•
4 1/8” rigid gooseneck •

2.2 GPM vandal resistant laminar flow device, •
Series 6 (B-0199-06-VRF)
Water resistant control module w/ internal flow control switches for •
adjusting auto time out & shut off delay settings
Optional auto flush feature flows water for 30 seconds after every 12 •
inactive hours

•

Plug in AC transformer or (4) AA battery (DC) power options
Mechanical temperature mixing valve w/ integral check valves

•
18” flexible stainless steel supply hoses w/ 3/8" compression inlet

•
connections
Low battery LED indicator light

•
Material: Polished chrome plated brass body and tubular spout

•

Optional Outlets (Series 1 / VR Series 6)

Non-Aerated

GPM

0.35

0.5

1.0

1.5

2.2

N/A
N/A

B-0199-01-F10
B-0199-01-WS
B-0199-01

(Laminar)Aerated

B-0199-01-N035
B-0199-01-N05

N/A

B-0199-29
B-0199-21

VR Aerated

N/A
N/A

B-0199-06-F10
B-0199-06-WS
B-0199-06

Product Compliance:

Warranty:

Performance Data:

•F

• Flow Rate: 2.2 GPM @ 60 psi

•

VR Non-Aerated
(VR Laminar)

B-0199-06-N035
B-0199-06-N05

N/A

B-0199-29VR

Standard

ASM E A112.18.1 / CSA B125.1•
NSF 61 - Section 9•
NSF 372 (Low Lead Content)•
ANSI A117.1 (ADA)•
UL 1951•

Three Year (Limited)

Pressure: 20 - 125 psi •
Temperature: 40

Water Consumption: @10 sec=.37 gal
@15 sec=.55 gal

F - 140

T&S BRASS AND BRONZE WO RKS, INC.

•

2 Saddleback Cove •

Ph 800-476-4103 • Fax [phone]

Simi Valley, CA

•

•

Travelers Rest, SC 29690

Ph 800-423-0150

www.tsbrass.com

•

Date:

12/14/15
