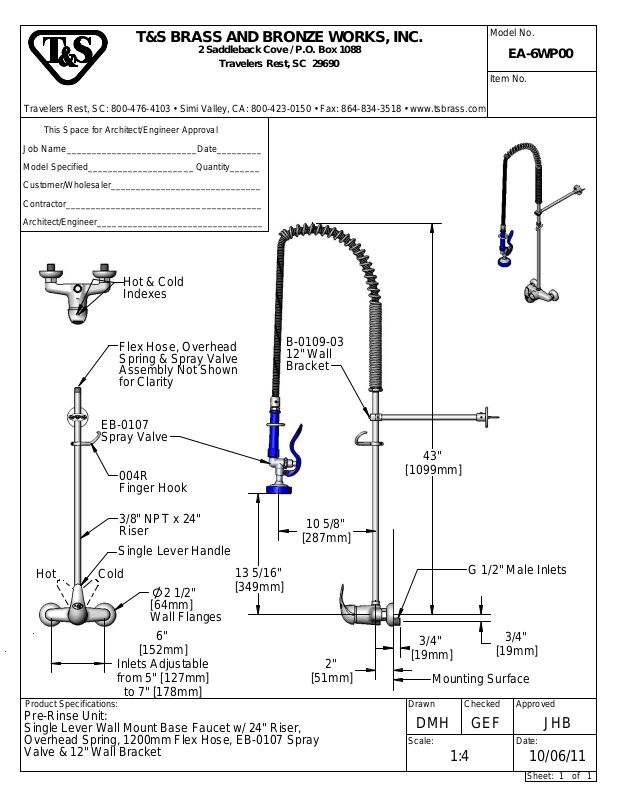

T&S Brass EA-6WP00 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
EA-6WP00
Item No.
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Hot & Cold
Indexes
Flex Hose, Overhead
Spring & Spray Valve
Assembly Not Shown
for Clarity
EB-0107
Spray Valve
B-0109-03
12" Wall
Bracket
004R
Finger Hook
3/8" NPT x 24"
Riser
10 5/8"
[287mm]
Single Lever Handle
Hot
Cold
2 1/2"
13 5/16"
[349mm]
[64mm]
Wall Flanges
6"
[152mm]
Inlets Adjustable
from 5" [127mm]
[51mm]
to 7" [178mm]
Product Specifications:
Pre-Rinse Unit:
Single Lever Wall Mount Base Faucet w/ 24" Riser,
Overhead Spring, 1 200mm Flex Hose, EB-0107 Spray
Valve & 12" Wall Bracket
2"
43"
[1099mm]
G 1/2" Male Inlets
3/4"
[19mm]
Mounting Surface
Drawn
Checked
DMH
Scale:
1:4
GEF
3/4"
[19mm]
Approved
JHB
Date:
10/06/11
of
1Sheet:
1
