T&S Brass EA-2DF09 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

REG. #A2601

ISO #9001

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

Model No.

EA-2DF09

Item No.

Job Name

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

__________________________Date_________

11 3/16"

284mm

6"

152mm

8 5/8"

219mm

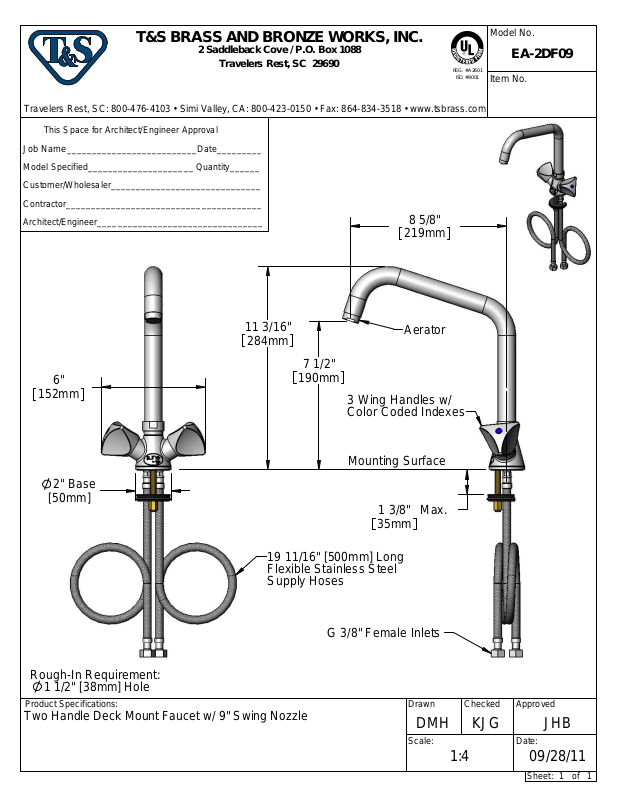

Aerator

7 1/2"

190mm

3 Wing Handles w/
Color Coded Indexes

2" Base

[50mm]

19 11/16" [500mm] Long
Flexible Stainless Steel
Supply Hoses

Rough-In Requirement:

1 1/2" [38mm] Hole

Product Specifications:

Two Handle Deck Mount Faucet w/ 9" Swing Nozzle

Mounting Surface

1 3/8" Max.

35mm

G 3/8" Female Inlets

Drawn

DMH

Scale:

1:4

Checked

KJG

Approved

JHB

Date:

09/28/11

Sheet:

of

1

1
