T&S Brass BL-5715-01WH4 PARTS LIST

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

BL-5715-01WH4

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

__________________________Date_________

16"

406mm

Job Name

Model Specified_____________________ Quantity______

Customer/Wholesaler______________________________

Contractor_______________________________________

Architect/Engineer_________________________________

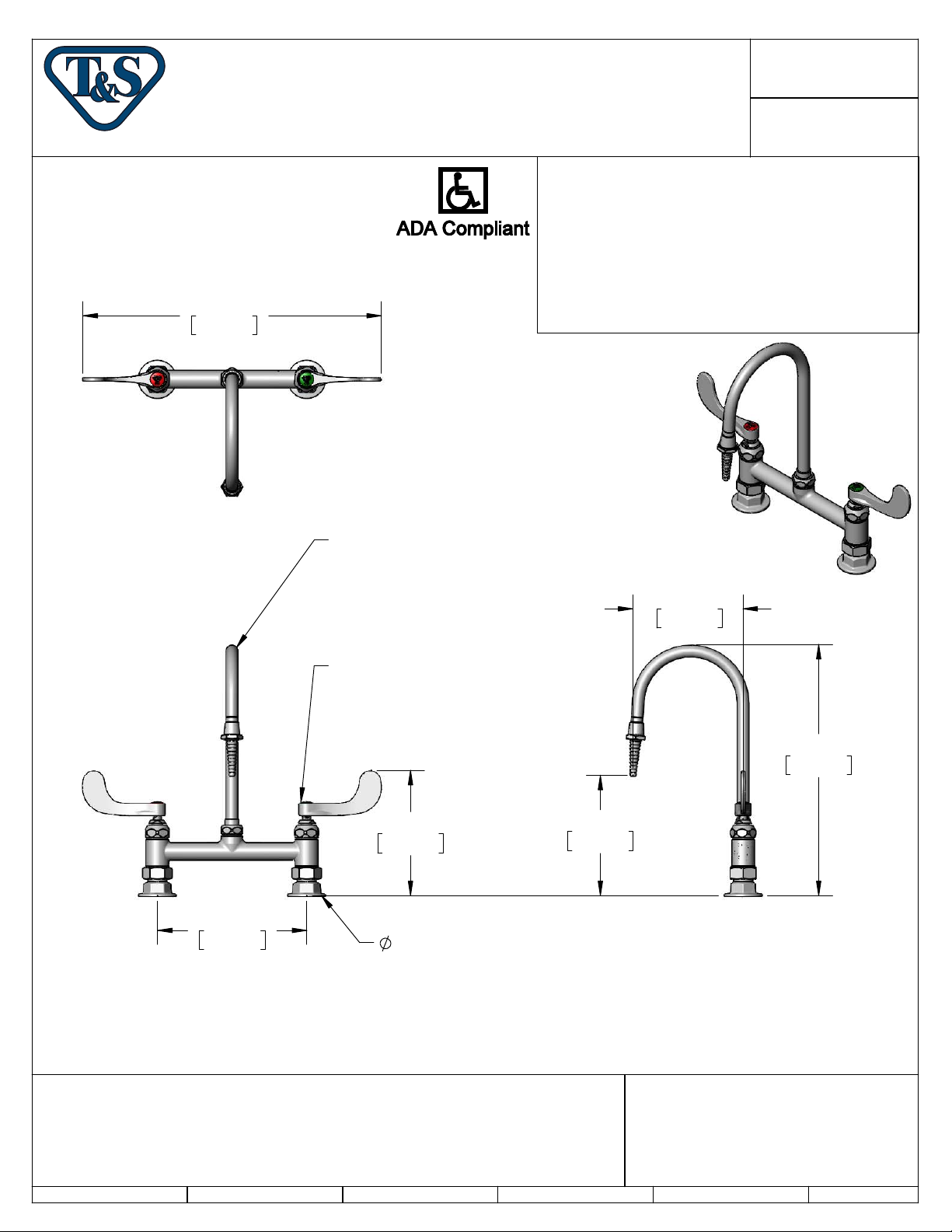

5 7/8" Swivel/Rigid Gooseneck
w/ BL-5550-04 Serrated Tip &
Washer. Converts to Rigid w/

014200-45 Lock Washer

(Included)

5 7/8"

150mm

Quarter-Turn Eterna Cartridges
w/ Spring Checks & 4" Wrist
Action Handles w/ Color Coded
Indexes

6 3/4"

171mm

6 7/16"

164mm

Mounting Surface

8"

203mm

Adjustable From

7 3/4" to 8 1/4"

[197mm to 210mm]

Product Specifications:

2" [51mm]
Flanges w/
1/2" NPT
Female Inlets

8" Deck Mount Mixing Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, 4" Wrist Action Handles, 5 7/8" Swivel/Rigid Gooseneck, Serrated Tip
Outlet & 1/2" NPT Female Inlets

13 1/2"

342mm

Product Compliance:

ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

Drawn: Approved:

LSA

Checked:

JHB

Date:

12/20/19JRM

Scale:

1:6

of

2

1Sheet:

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

BL-5715-01WH4

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

ITEM

NO.

SALES NO. DESCRIPTION

1 BL-5550-04 Serrated Tip

2 001051-45 Washer
3 009538-45 Swivel Washer
4 011429-45 Swivel Sleeves (2)

5 001074-45 O-Ring

6 014200-45 Star Washer, Anti-Rotation
7 001191-45NS Green "CW" Lab Button Index
8 000925-45 Lab Handle Screw

9 012442-40NS

2

10 001019-45 Coupling Nut Washer

Quarter-Turn Eterna Cartridge w/
Spring Check, LTC

11 00AA 1/2" NPT Female Eccentric Flange

1

12 012443-40NS

Quarter-Turn Eterna Cartridge, RTC
w/ Spring Check

13 B-WH4-NS Wrist Action Handle - New Style

14

3

4

14 001194-45NS Red "HW" Lab Button Index

13

12

5

6

7 8

9

10

11

Product Specifications:

8" Deck Mount Mixing Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, 4" Wrist Action Handles, 5 7/8" Swivel/Rigid Gooseneck, Serrated Tip
Outlet & 1/2" NPT Female Inlets

LSA

Checked:

JRM

Approved:Drawn:

Date:

12/20/19 Scale:

Product Compliance:

ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

NTS

of

2

2Sheet:JHB
