T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
BL-5710-07WH4
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
4 7/8"
124mm
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
BL-5560-03
Vacuum Breaker Swivel
Nozzle w/ Serrated Tip &
0.5 GPM Flow Control.
Rigid Conversion
Requires
014200-45 Lock Washer
(Included)
B-0968
3/8" NPT
5 11/16"
144mm
Vacuum Breaker
Quarter-Turn
Eterna Cartridge w/
Spring Check w/ 4" Wrist
Action Handle & Color
Coded Index
10"
254mm
4"
102mm
3 3/4"
95mm
Mounting Surface
Product Specifications:
Single Temperature Lab Faucet w/ Vacuum Breaker Swivel Nozzle, QuarterTurn Eterna Cartridge w/ Spring Check, Serrated Tip Outlet w/ 0.5 GPM
Flow Control, 4" Wrist Action Handle & 1/2" NPT Female Inlet
Flange w/
1/2" NPT
Female Inlet
2 9/16"
66mm
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
ASSE 1001 (VB)
2" [51mm]
Drawn: Approved:
KJG
Checked:
JHB
Date: 1:4
11/01/19MRC
Scale:
Sheet:
of
2
1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
BL-5710-07WH4
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

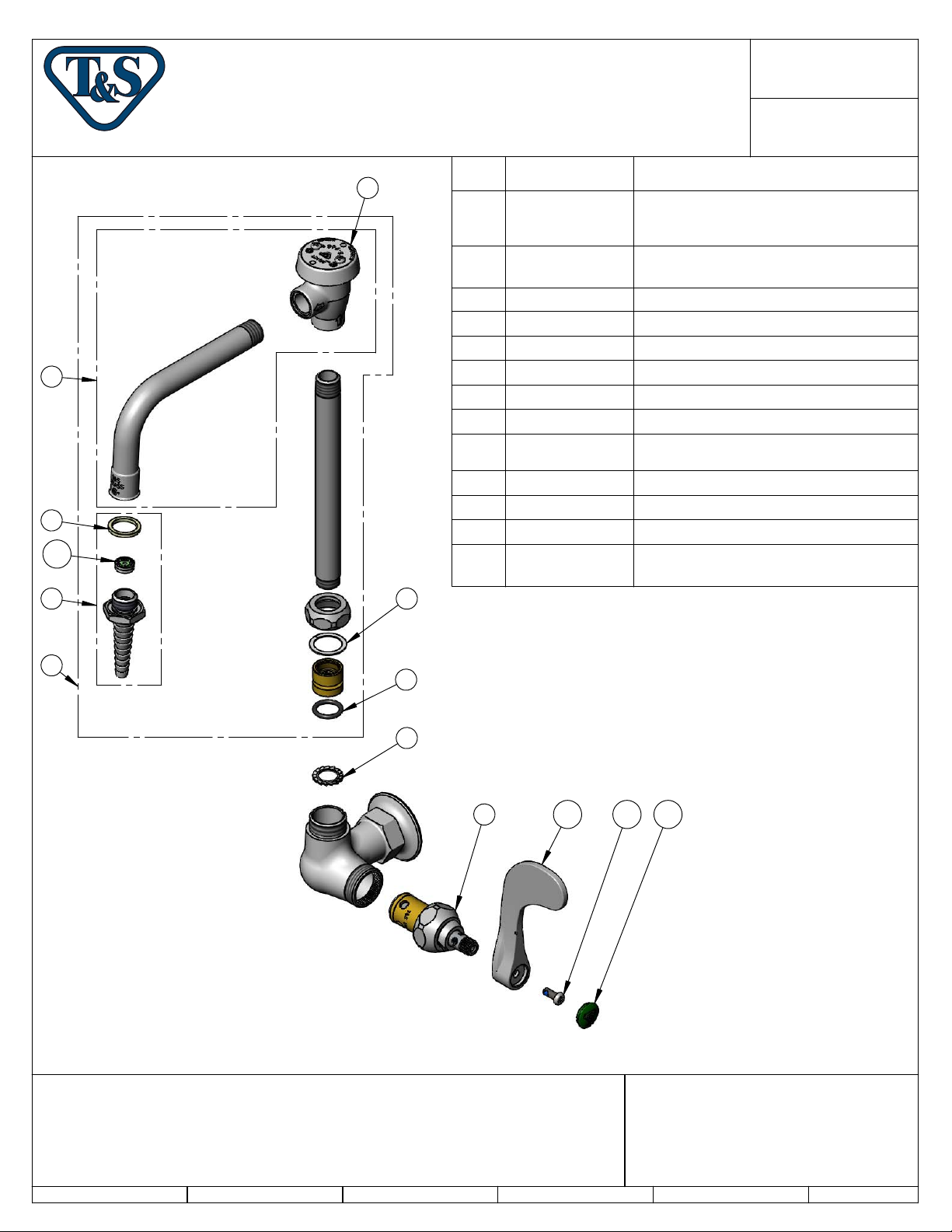

ITEM
5
NO.
SALES NO. DESCRIPTION
Swivel Vacuum Breaker Nozzle
1 BL-5560-03
w/ Serrated Tip & 0.5 GPM Fow
Disc
2 B-0198-FD05
Serrated Tip w/ 0.5 GPM Flow
Disc & Washer
3 001051-45 Washer
4 007283-40 Vacuum Breaker Nozzle Asm.
5 B-0968 3/8" NPT Vacuum Breaker
4
6 009538-45 Swivel Washer
7 006562-45 O-ring
8 014200-45 Star Washer, Anti-Rotation
9 012443-40NS
Quarter-Turn Eterna Cartridge
w/ Spring Check, RTC
10 B-WH4-NS Wrist Action Handle - New Style
3
13
2
6
11 000925-45 Lab Handle Screw
12 001191-45NS Green "CW" Lab Button Index
13 FD05
Flow Disc, 0.5 GPM [ 1.9 L/min.]
(Lime)
1
7
8
10 119
Product Specifications:
Single Temperature Lab Faucet w/ Vacuum Breaker Swivel Nozzle, QuarterTurn Eterna Cartridge w/ Spring Check, Serrated Tip Outlet w/ 0.5 GPM
Flow Control, 4" Wrist Action Handle & 1/2" NPT Female Inlet
12
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
ASSE 1001 (VB)
Drawn: Approved: NTS
KJG
Checked:
MRC 11/01/19 Scale:
Date:
of
2
2Sheet:JHB
