T&S Brass BL-4305-0 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
BL-4305 SERIES
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
BL-4305-0
BL-4305-01
BL-4305-02
__________________________Date_________
Turret w/ (2) Water Stops
@ 90°
Turret w/ (1) Water Stop
Turret w/ (2) Water Stops
@ 180°
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
Serrated Tip
www.tsbrass.com
5 9/16"
[141mm]
BL-4305-01 SHOWN

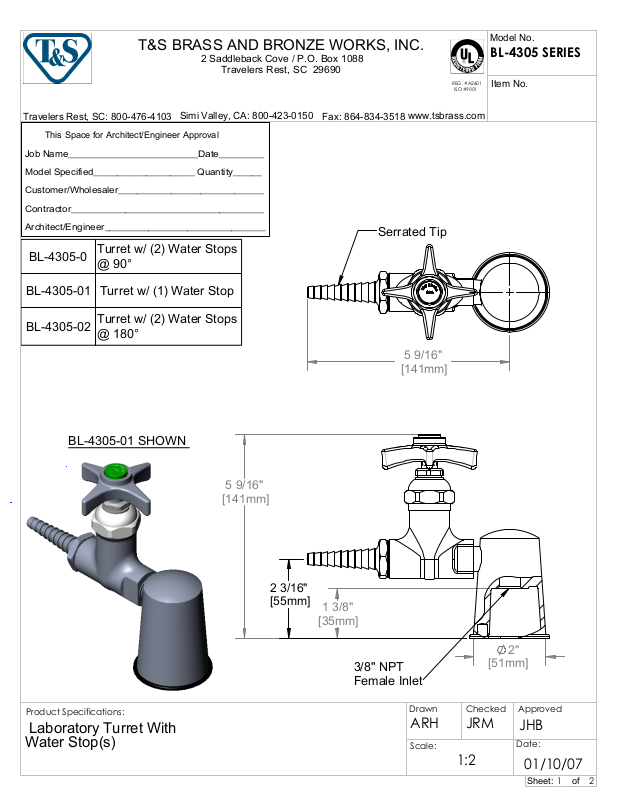

Product Specifications:
Laboratory Turret With
Water Stop(s)
5 9/16"
[141mm]
2 3/16"
[55mm]
1 3/8"
[35mm]
3/8" NPT
Female Inlet
Drawn
ARH
Scale:
Checked
JRM
1:2
2"
[51mm]
Approved
JHB
Date:
01/10/07
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
BL-4305 SERIES
Item No.
Travelers Rest, SC: 800-476-4103
1
2
3
4
Simi Valley, CA: 800-423-0150
ITEM NO.
1
2
3
4
5
6
7
Fax: 864-834-3518
SALES NO.
001191-45
000925-45
000059-40
005960-40
001658-40
009641-45
001158-45
www.tsbrass.com
Description
Cap, Index, Green, Cold Water
Lab Handle Screw
4-Arm Lab Handle
Eterna Ctg
Hose End, Serrated, Brass, PLTD
Washer, 7/8" OD X 11/16ID X
3/32THK
Gasket, Polypropylene, Black
5
6
Product Specifications:
Laboratory Turret With
Water Stop(s)
Turret Sold Separately W/
Gasket As BL-4100-XX.
-XX Suffix References The
Number Of Outlets And
Their Orientation Per Turret.
See Table On Page 1 For
Suffix.
7
Drawn
ARH
Scale:
Checked
JRM
1:2
Approved
JHB
Date:
01/10/07
Sheet:
of
2
2
