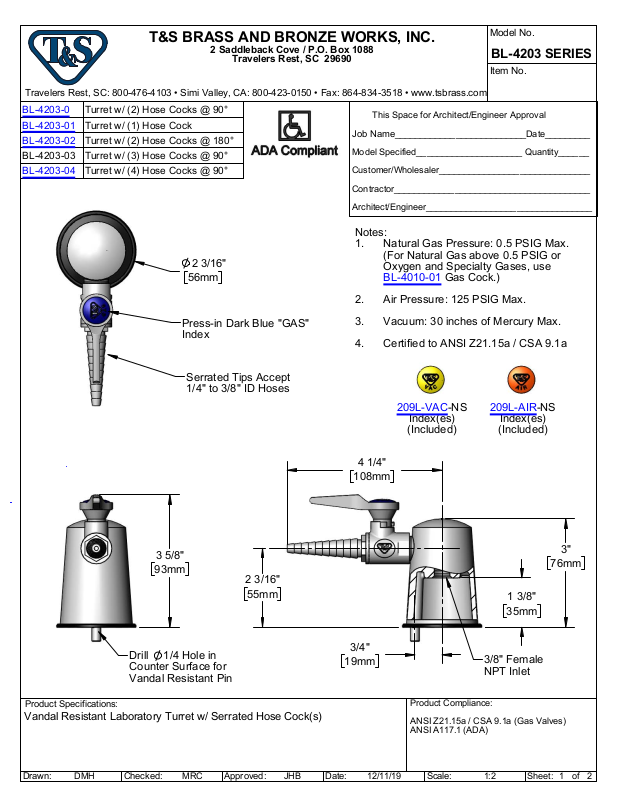

T&S Brass BL-4203-01 PARTS LIST
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
BL-4203 SERIES
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
BL-4203-0 Turret w/ (2) Hose Cocks @ 90°
BL-4203-01 Turret w/ (1) Hose Cock
BL-4203-02 Turret w/ (2) Hose Cocks @ 180°
BL-4203-03 Turret w/ (3) Hose Cocks @ 90°
BL-4203-04 Turret w/ (4) Hose Cocks @ 90°
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Notes:
Natural Gas Pressure: 0.5 PSIG Max.1.
(For Natural Gas above 0.5 PSIG or
2 3/16"
56mm
Oxygen and Specialty Gases, use
BL-4010-01 Gas Cock.)
Air Pressure: 125 PSIG Max.2.
Press-in Dark Blue "GAS"
Vacuum: 30 inches of Mercury Max.3.
Index
Certified to ANSI Z21.15a / CSA 9.1a4.
Serrated Tips Accept
1/4" to 3/8" ID Hoses
3 5/8"
93mm
Drill
1/4 Hole in
Counter Surface for
Vandal Resistant Pin
2 3/16"
55mm
209L-VAC-NS
Index(es)
(Included)
4 1/4"
209L-AIR-NS
Index(es)
(Included)
108mm
3"
76mm
1 3/8"
35mm
3/4"
19mm
3/8" Female
NPT Inlet
Product Specifications:
Vandal Resistant Laboratory Turret w/ Serrated Hose Cock(s)
Drawn:
DMH
Checked:
Approved: 2
JHB
Date:
Product Compliance:
ANSI Z21.15a / CSA 9.1a (Gas Valves)
ANSI A117.1 (ADA)
12/11/19MRC
Scale:
1:2
of
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
BL-4203 SERIES
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
1 209L-AIR-NS Orange "AIR" Lab Button Index
2 209L-VAC-NS Yellow "VAC" Lab Button Index
3 209L-GAS-NS Dark Blue "GAS" Lab Button Index
4 BL-4000-01 Ball Valve Hose Cock w/ GAS, AIR & VAC Indexes
5 144L Black Plastic Gasket
SALES NO. DESCRIPTION
1
2
3
4
Product Specifications:
Vandal Resistant Laboratory Turret w/ Serrated Hose Cock(s)
Turret Sold Separately w/
Gasket as BL-4102-XX.
-XX Suffix Refers to the
Number of Outlets and Their
Orientation on Turret. See
Table on Sheet 1 for List of
Suffixes.
5
Product Compliance:
ANSI Z21.15a / CSA 9.1a (Gas Valves)
ANSI A117.1 (ADA)
DMH
Checked: Date:
MRC
Approved:Drawn:
12/11/19 Scale:
NTS
of
2
2Sheet:JHB
