T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
BL-4102-02
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Simi Valley, CA: 800-423-0150
A A
3/8" NPT
Female Outlet
(TYP.)
Fax: 864-834-3518
180°
www.tsbrass.com
3"
[76mm]
2 3/16"
[55mm]
1 3/8"
[35mm]
7/16"
[11mm]
3/8" NPT Female Inlet

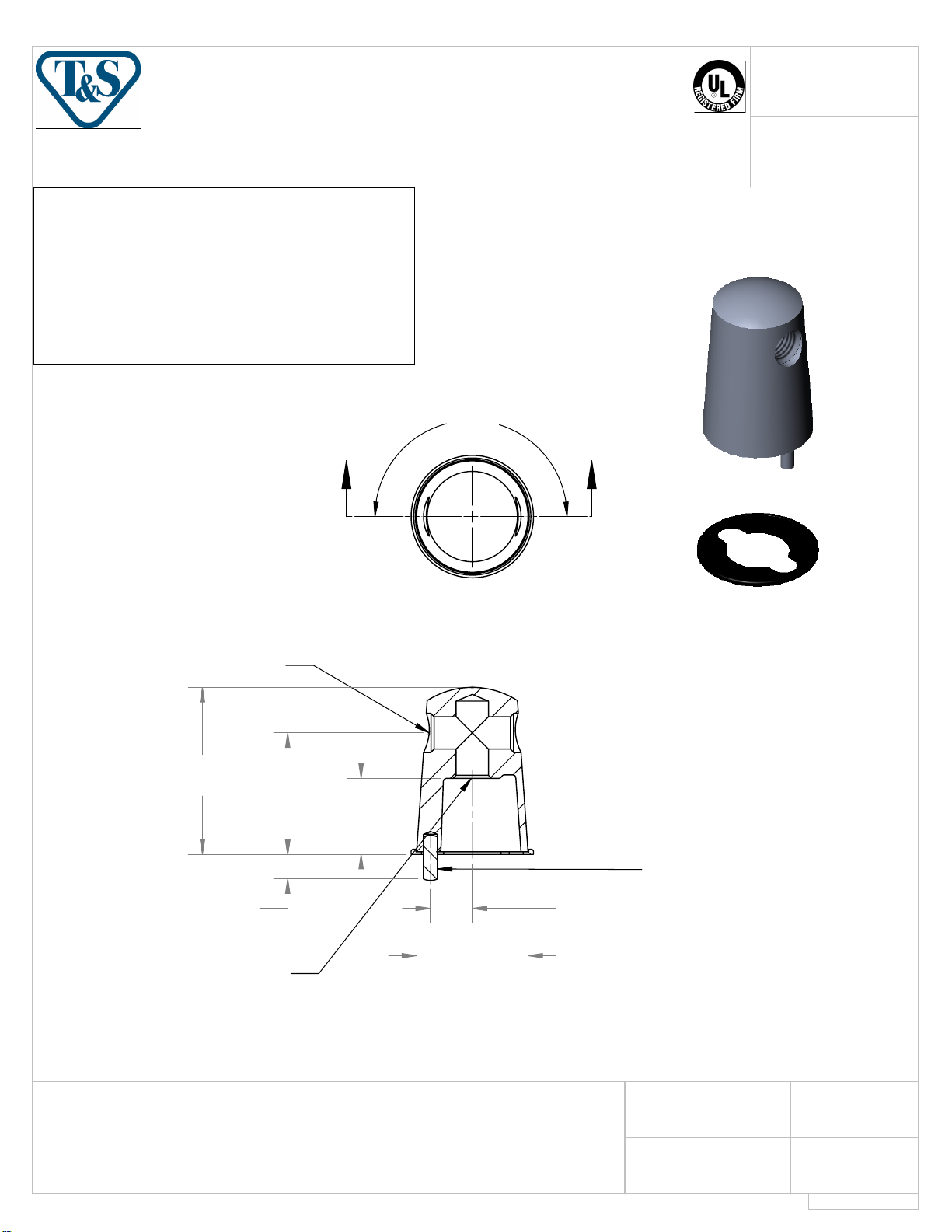

Product Specifications:
Gas Turret w/ Vandal Resistant Pin
& (2) Outlets 180° Apart
2"
[51mm]
SECTION A-A
3/4"
[19mm]
Drill Ø1/4" Mounting Hole
in Counter Surface for
Vandal Resistant Pin
Drawn
ARH
Scale:
Checked
JRM
1:2
Approved
JHB
Date:
01/10/07
Sheet:
of
1
1
