T&S Brass BL-4005-01 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
BL-4005-01
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
NOTE 1 : For Natural Gas Pressures Above
0.5 PSIG Or Oxygen and Specialty
Gases, Use BL-4010-01 Gas Cock
2 : For Air, Maximum Pressure 25 PSIG
3 : For Vacuum, 30 Inches of Mercury
Maximum
4. Certified to ANSI Z21.15a/ CSA 9.1a
Indexes Included
001197-45
Fax: 864-834-3518
3 13/16"
[97mm]
www.tsbrass.com
Snap-In Color Coded
Index ("GAS")
001203-45
001200-45

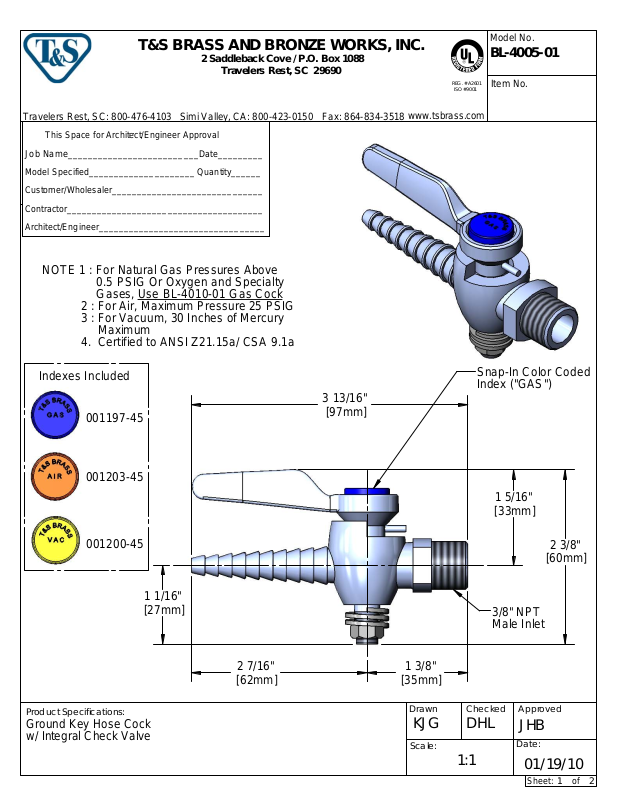

Product Specifications:
Ground Key Hose Cock
w/ Integral Check Valve
1 1/16"
[27mm]
2 7/16"
[62mm]
1 3/8"
[35mm]
Drawn Checked
KJG
Scale:
DHL
1:1
1 5/16"
[33mm]
3/8" NPT
Male Inlet
Approved
JHB
Date:
01/19/10
Sheet:
2 3/8"
[60mm]
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
BL-4005-01
Item No.
Travelers Rest, SC: 800-476-4103
Simi Valley, CA: 800-423-0150
ITEM NO. SALES NO. DESCRIPTION
1 001197-45 Cap, Index, Blue, Gas
2 001200-45 Cap, Index, Yellow, Vacuum
3 001203-45 Cap, Index, Orange, Air
Fax: 864-834-3518
3
Note:
2
1. Item #1 Pre-Installed at Factory
2. Item #2 & Item #3 Included for
Field Modifications
1
www.tsbrass.com
Product Specifications:
Ground Key Hose Cock
w/ Integral Check Valve
Drawn
KJG
Scale:
Checked
DHL
1:1
Approved
JHB
Date:
01/19/10
Sheet:
of
2
2
