T&S Brass B-7245-07 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-7245-07
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
3/4" NPT
Female Inlet
9/16"
Orifice
Fax: 864-834-3518
www.tsbrass.com
MV-2522-44
Front Trigger Water Gun
w/ Stainless Steel Body &
Royal Blue Rubber Cover
45°
5 5/8"
[143mm]
3/4" x 50'
Hose Not
Shown
27 1/16"
[688mm]
14 3/8"
[365mm]
24 1/2"
[622mm]
10 5/16"
[262mm]
9 5/16"
[237mm]
12"
[305mm]
11"
[279mm]
1/2"
[13mm]

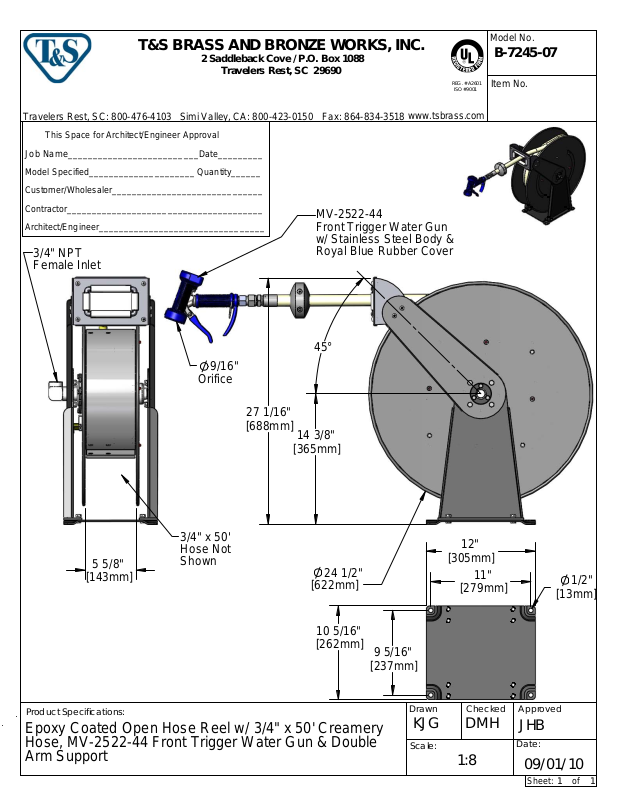

Product Specifications:
Epoxy Coated Open Hose Reel w/ 3/4" x 50' Creamery
Hose, MV-2522-44 Front Trigger Water Gun & Double
Arm Support
Drawn Checked
KJG
Scale:
DMH
1:8
Approved
JHB
Date:
09/01/10
Sheet:
1
of
1
