T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-7143-05
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

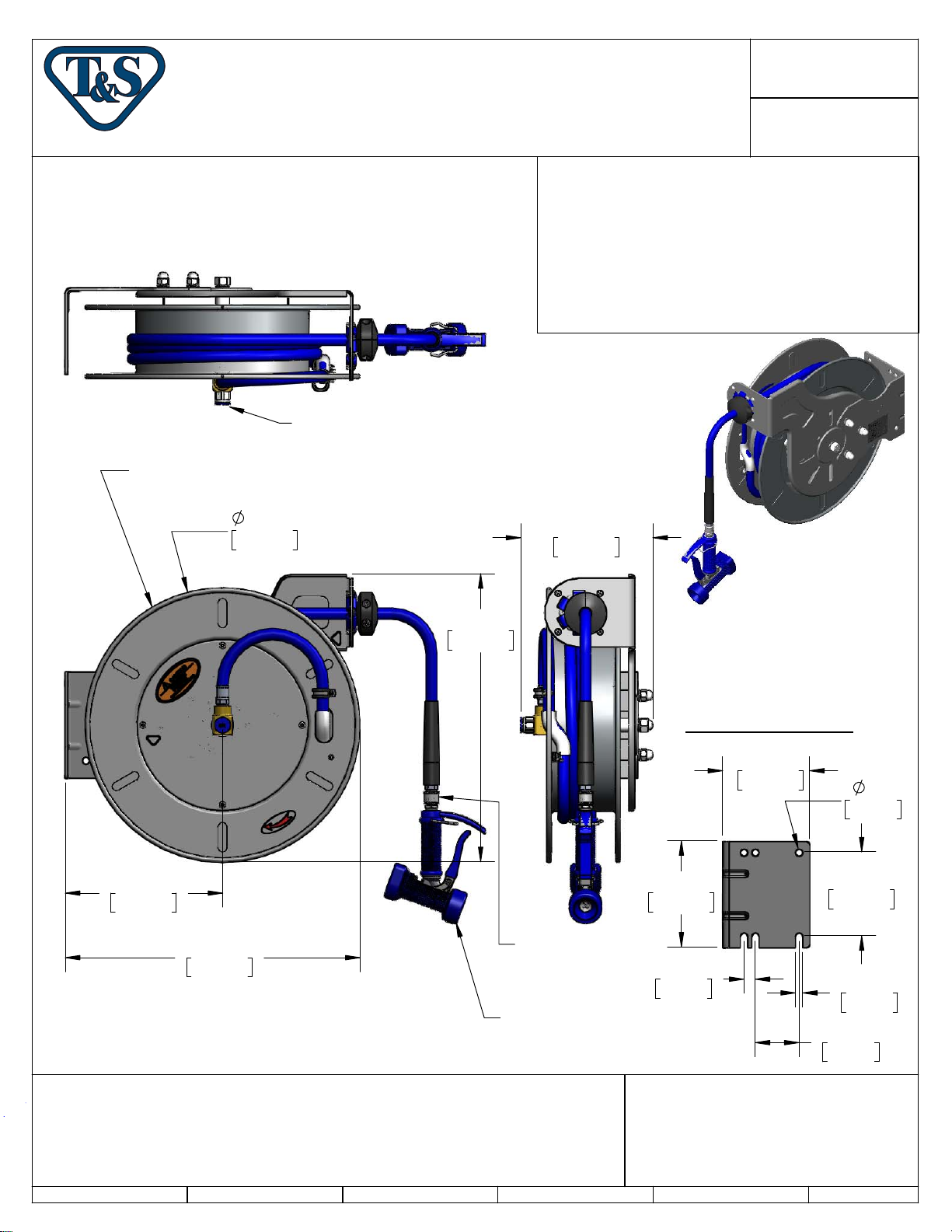

1/2" NPT Female Inlet
(Left Side of Reel)
Open Stainless Steel Hose Reel
50' of 1/2" Hose
19 5/8"
498mm
9 7/16"
240mm
11 1/4"
286mm
21 1/16"
535mm
20 9/16"
523mm
Mounting Hole Details
6 3/16"
158mm
1/2"
13mm
7 9/16"
193mm
019653-40
1/2" NPT
Live Swivel
13/16"
21mm
6"
152mm
1/2"
13mm
MV-2522-24
Stainless Steel Front Trigger
Water Gun, 5/16" Orifice
3 1/8"
79mm
Product Specifications:
1/2" x 50' Open Stainless Steel Reel w/ Stainless Steel Front Trigger
Water Gun wit h Rubber Cover & Swivel, 5/16" Flow Orifice
and 1/2" NPT Female Inlet
Drawn:
AMG
Checked:
Approved:
JHB
Date:
Product Compliance:
NSF 61 Exempt (Non-Potable)
10/09/17KJG
Scale:
1:8
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-7143-05
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

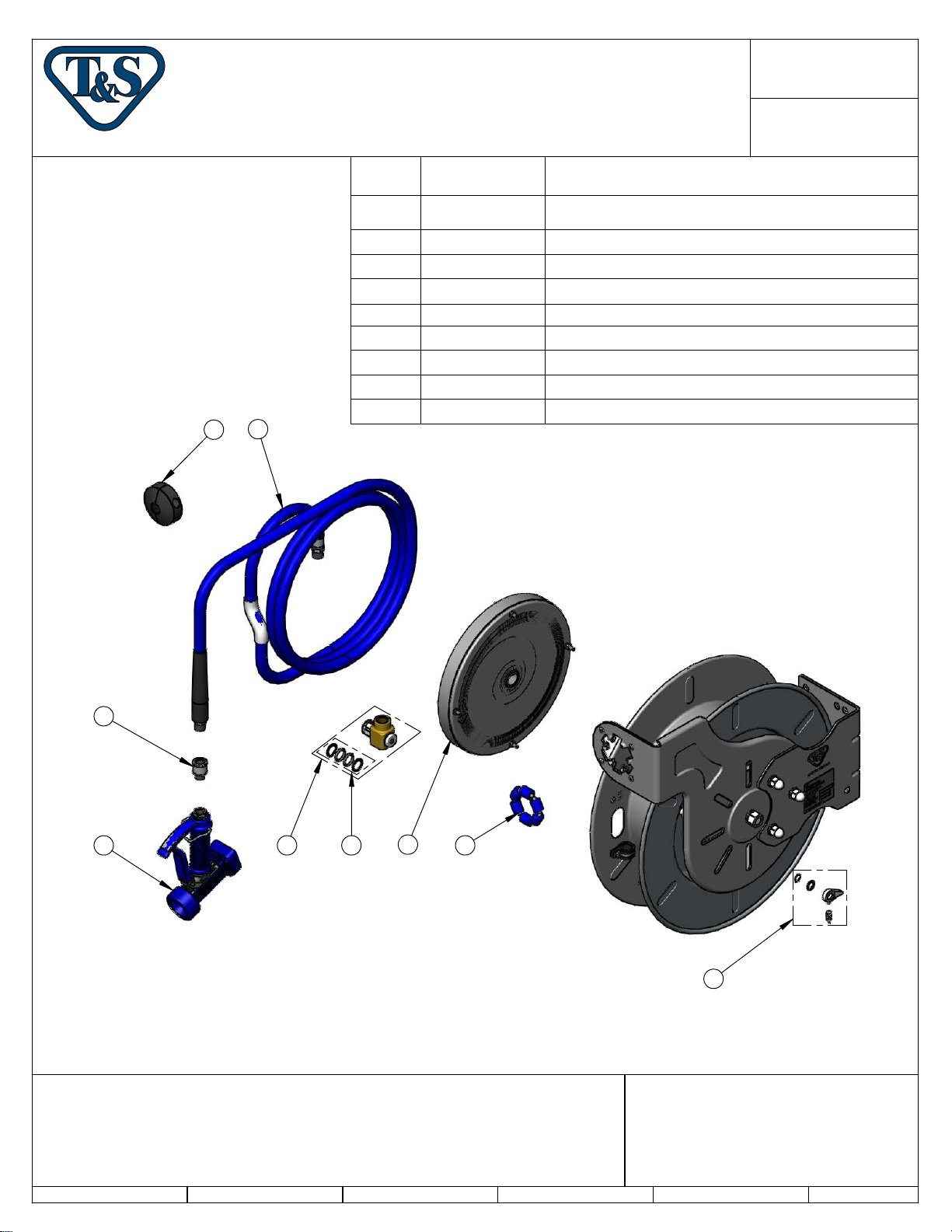

ITEM
NO.
1 MV-2522-24
2 014945-45 1/2" x 50' Hose Replacement Kit
3 019499-45 1/2" Hose Stop Repair Kit
4 014947-45 1/2" Swivel Repair Kit
5 019473-45 O-Ring Replacement Kit
6 014935-45 Large Stainless Steel Spring
7 014938-45 Roller Replacement Kit
8 014940-45 Ratchet Repair Kit
9 019653-40 1/2" NPT Live Swivel
2
3
SALES NO. DESCRIPTION
Stainless Steel Front Trigger Water Gun w/ Blue
Rubber Cover, 5/16" Flow Orifice
9
1 7
Product Specifications:
1/2" x 50' Open Stainless Steel Reel w/ Stainless Steel Front Trigger
Water Gun wit h Rubber Cover & Swivel, 5/16" Flow Orifice
and 1/2" NPT Female Inlet
54
6
8
Product Compliance:
NSF 61 Exempt (Non-Potable)
AMG
Checked: Date:
KJG
Approved:Drawn:
10/09/17
Scale:
NTS
of
2
2Sheet:JHB
