This Space for Architect/Engineer Approval
Model No.
B-7142-C05XS1E
Item No.
B-0963
Continuous Pressure
Vacuum Breaker w/
Integral Check Valve
3/8" NPT x 36"
Flexible Water
Hose Connector
3/8" NPT x 40"
Riser
Stainless Steel
Quick Disconnect
Control Valve
EasyInstall
3/8" NPT x 16"
Riser
(2) B-0109-07
Wall Brackets
3 11/16"
94mm
Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
019652-40
3/8" NPT
Live Swivel
Front Trigger
Water Gun
8" Wall Mount Mixing Faucet,
Quarter-Turn Eterna Cartridges
w/ Spring Checks & Lever
Handles w/ Color Coded
Indexes
12 5/8"
321mm
8"
203mm
Adjustable From
7 3/4" to 8 1/4"
[197mm to 210mm]
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Enclosed Stainless Steel Hose Reel
w/ 50' of 3/8" Hose
17 13/16"
6 3/16"
453mm
158mm
3 1/8"
79mm
1/2"
13mm
7 9/16"
193mm
152mm
13/16"
21mm
1/2"
13mm
63 5/16"
1609mm
2 3/8"
61mm
6"
Product Specifications:
Enclosed Stainless Steel Hose Reel w/ 50' of 3/8" Hose, Blue Front
Trigger Water Gun w/ Swivel, Vacuum Breaker, 3/8" NPT Flexible Water
Hose, 8" Wall Mount Mixing Faucet, Wall Brackets & Control Valve
JRM
Checked: Date:
Approved:Drawn:
JHB
04/22/19 MRC
Product Compliance:
NSF 61 Exempt (Non-Potable)
2019 DOE PRSV Non-Compliant
ASSE 1056 (VB)
Scale:
1:16
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
6
8
9

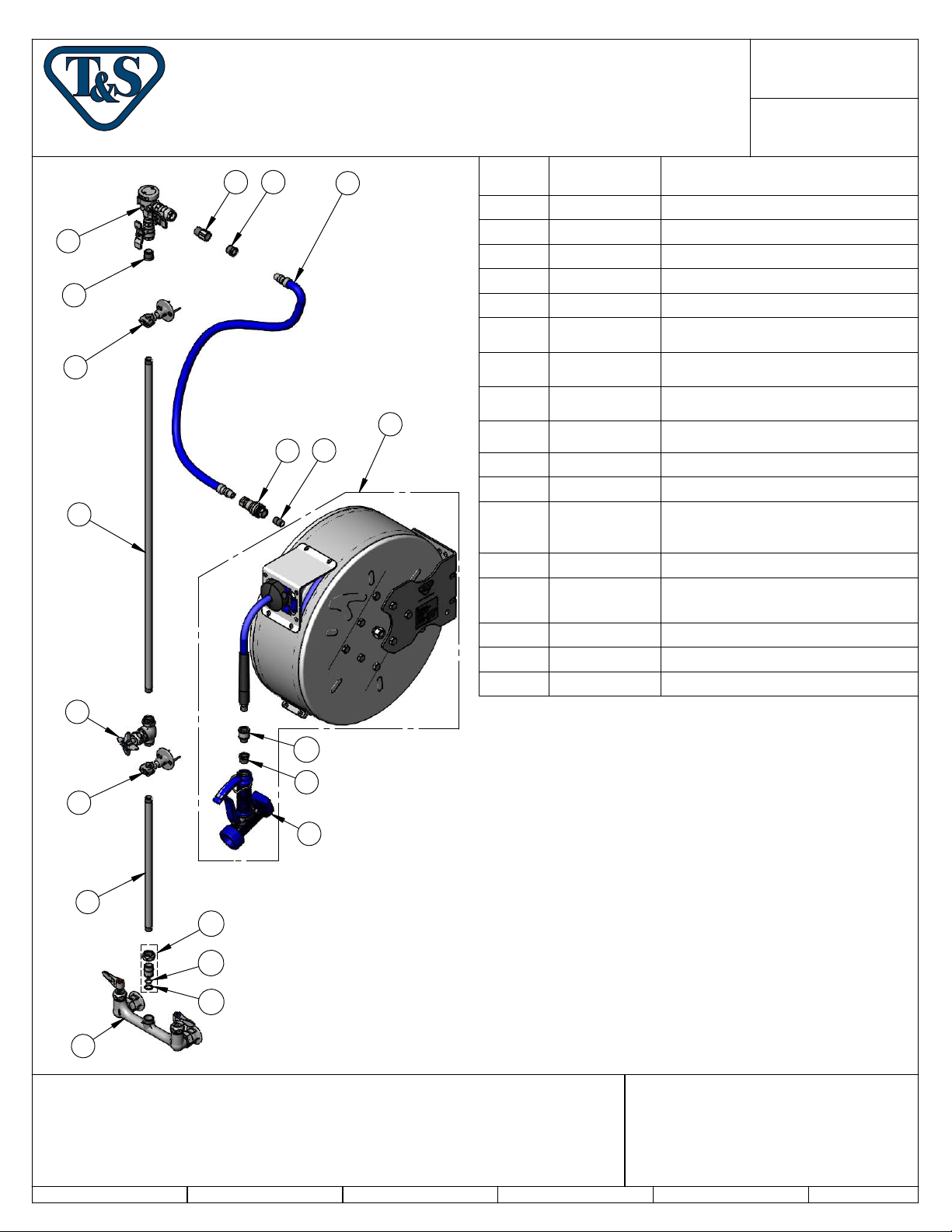

NO.
1
ITEM
7
2 000368-40 Nipple, 3/8" x 16"
3 B-0109-07 Wall Bracket
4 0RK3 Control Valve
6
5 002558-40 3/8" NPT x 40" Riser
6 001359-40
3
7 B-0963
8 015073-40
12
9HW-2B-36
11
10
10 AW-5B 3/8" NPT Quick Disconnect
11 002535-25 3/8" Close Nipple
5
12 B-7142-C05
13 019652-40 3/8" NPT Live Swivel
14 MV-2522-24
15 EZ-K EasyInstall Kit
16 001065-45 O-Ring
17 014200-45 Star Washer, Anti-Rotation
SALES NO. DESCRIPTION
B-0230-LN
8" Wall Mount Mixing Faucet
Hex Bushing, 1/2" NPT Male x
3/8" NPT Female
Vacuum Breaker 1/2 NPT
Female
Check Valve w/ 1/2" NPT
Adapter
3/8" NPT x 36" Flexible Water
Hose
Enclosed Stainless Steel Hose
Reel w/ 50' of 3/8" Hose w/ Front
Trigger Water Gun
Stainless Steel Water Gun, Front
Trigger
Model No.
B-7142-C05XS1E
Item No.
4
13
6
3
14
2
15
16
17
1
Product Specifications:
Enclosed Stainless Steel Hose Reel w/ 50' of 3/8" Hose, Blue Front Trigger
Water Gun w/ Swivel, Vacuum Breaker, 3/8" NPT Flexible Water Hose, 8"
Wall Mount Mixing Faucet, Wall Brackets & Control Valve
Product Compliance:
NSF 61 Exempt (Non-Potable)
2019 DOE PRSV Non-Compliant
ASSE 1056 (VB)
JRM
Checked: Date:
MRC 04/22/19 Scale:
Approved:Drawn:
NTS
of
2
2Sheet:JHB
