T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2990-P
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
12 7/16"
315mm
2 1/4"
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
[57mm]
Escutcheons
Lavatory Spout
w/ B-0199-03
2.2 GPM
Male Aerator
Eterna Cartridges
& Lever Handles
w/ Color Coded Indexes
5 1/8"
[134mm]
3 1/16"
[77mm]
Mounting
Surface
1/2" NPSM
Coupling Nuts
Pop-Up Drain Assembly
Rough-In Required:
Center Shank
Hot/Cold Side
Product Specifications:
1" [25mm] Mounting Hole
1 1/2" [38mm] Mounting Holes

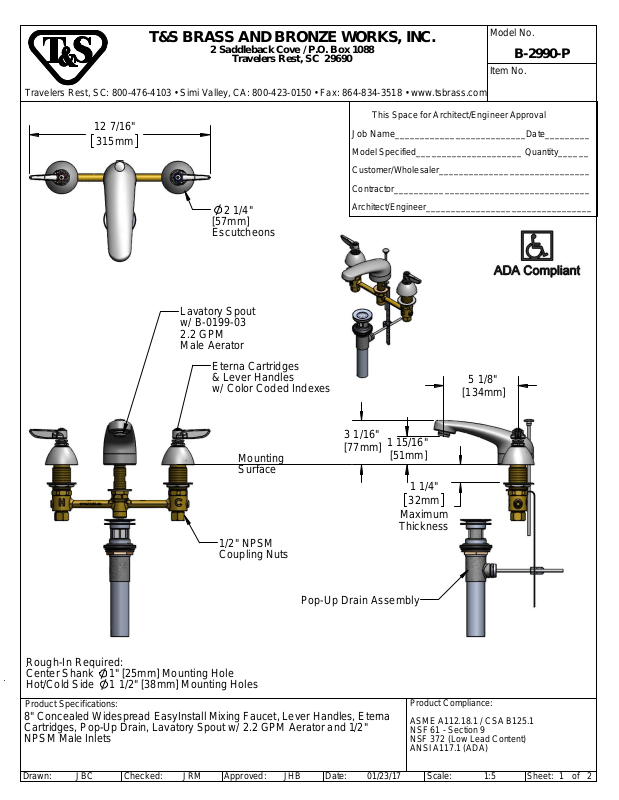

8" Concealed Widespread EasyInstall Mixing Faucet, Lever Handles, Eterna
Cartridges, Pop-Up Drain, Lavatory Spout w/ 2.2 GPM Aerator and 1/2"
NPSM Male Inlets
1 15/16"
[51mm]
1 1/4"
32mm
Maximum
Thickness
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
JBC
Checked:
Approved: 2
JHB
Date:
01/23/17JRM
Scale:
1:5
of
1Sheet:
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2990-P
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM NO. SALES NO. DESCRIPTION
1 B-0199-03 2.2 GPM Aerator
2 000922-45 Lever Handle Screw
3 001660-45 Blue Index-CW
1
4 001638-45 Lever Handle
5 002954-45 Shank Lock Nut
6 016745-45 Compression Nut & Fitting
8 016749-45 Sidebody C-Washer
16
7 016752-40
EasyInstall CWS LTC Eterna
(Teflon)
9 016777-45 CWS Hanger
15
14
2
3
4
10 B-0898 Pop-Up Drain
11 000958-20 Coupling Nut
12 016753-40
EasyInstall CWS RTC Eterna
(Teflon)
13 016743-25 CWS Bonnet
14 009002-25 Packing Nut
13
15 001257-40 Bell Escutcheon
16 001661-45 Red Index-HW
12
5
6
7
8
9
11
10
Product Specifications:
8" Concealed Widespread EasyInstall Mixing Faucet, Lever Handles,
Eterna Cartridges, Pop-Up Drain, Lavatory Spout w/ 2.2 GPM Aerator
and 1/2" NPSM Male Inlets
JBC
Checked: Date:
JRM
Approved:Drawn: NTS
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
01/23/17 Scale:
of
2
Sheet:JHB
2
