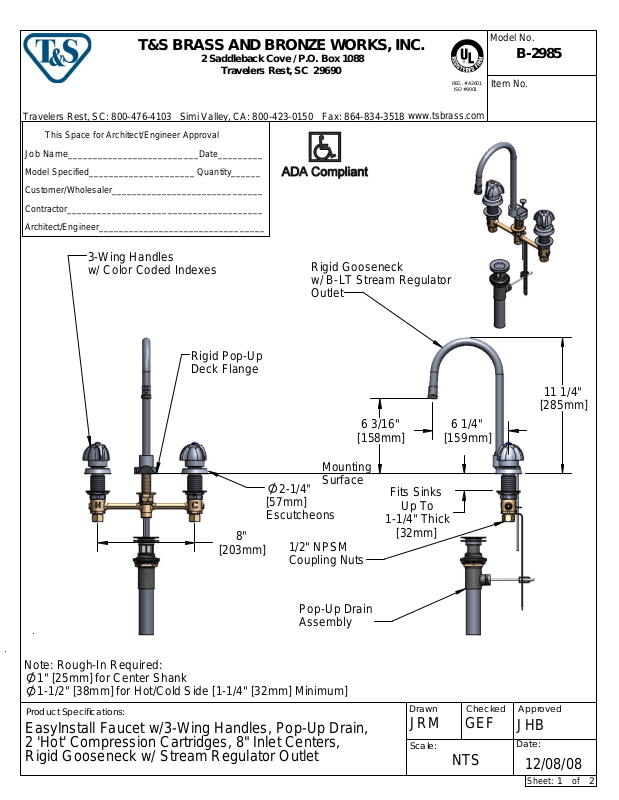

T&S Brass B-2985 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

B-2985

Item No.

3-Wing Handles
w/ Color Coded Indexes

Rigid Pop-Up
Deck Flange

8"

[203mm]

Rigid Gooseneck
w/ B-LT Stream Regulator
Outlet

Mounting
Surface

2-1/4"
[57mm]
Escutcheons

1/2" NPSM
Coupling Nuts

6 3/16"

[158mm]

Fits Sinks

1-1/4" Thick

[32mm]

11 1/4"

[285mm]

6 1/4"

[159mm]

Up To

Pop-Up Drain
Assembly

Note: Rough-In Required:

1" [25mm] for Center Shank
1-1/2" [38mm] for Hot/Cold Side [1-1/4" [32mm] Minimum]

Product Specifications:

EasyInstall Faucet w/3-Wing Handles, Pop-Up Drain,
2 'Hot' Compression Cartridges, 8" Inlet Centers,
Rigid Gooseneck w/ Stream Regulator Outlet

Drawn Checked

JRM

Scale:

GEF

NTS

Approved

JHB

Date:

12/08/08

Sheet:

of

1

2

T&S BRASS AND BRONZE WORKS, INC.

Travelers Rest, SC: 800-476-4103

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

B-2985

Item No.

17

16

15

14

ITEM

NO.

SALES NO. DESCRIPTION

1 B-LT Stream Regulator Outlet
2 001043-45 Washer

3 000922-45 Lever Handle Screw
4 001660-45 Blue Index-CW

5 001784-40 Lav. Handle, 3 Wing - Cold
6 002954-45 Shank Lock Nut

7 016745-45 Compression Nut & Fitting

2
1

8 017327-40
9 016749-45 Sidebody C-Washer

CWS EasyInstall RTC Eterna
(Teflon) -Short Bonnet

10 016777-45 CWS Hanger

3

4

5

11 B-0898 Pop-Up Drain
12 000958-20 Coupling Nut
13 016743-25 CWS Bonnet Assembly
14 009002-25 Packing Nut Assembly
15 017292-45 Metering CWS Escutcheon
16 001783-40 Lav. Handle, 3 Wing - Hot

17 001661-45 Red Index-HW

6

13

12

Product Specifications:

7
8

9

10

11

EasyInstall Faucet w/3-Wing Handles, Pop-Up Drain,
2 'Hot' Compression Cartridges, 8" Inlet Centers,
Rigid Gooseneck w/ Stream Regulator Outlet

Drawn

JRM

Scale:

Checked

GEF

NTS

Approved

JHB

Date:

12/08/08

Sheet:

of

2

2
