T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
B-WH4
4" Wrist Action Handles
w/ Color Coded Indexes
Fax: 864-834-3518
Model No.
B-2866-07
REG. #A2601
ISO #9001
www.tsbrass.com
Swivel Gooseneck
w/ Plain End Spout
(Optional Swivel/Rigid
Washer Included)
Item No.
1-11/16"
[43mm]
Swivel Deck
Flange
Mounting
Surface
8"
[203mm]
2-1/4"
[57mm]
Escutcheons
Note: Rough-In Required:
1" [25mm] for Center Shank
1-1/2" [38mm] for Hot/Cold Side[1-1/4" [32mm] Minimum]

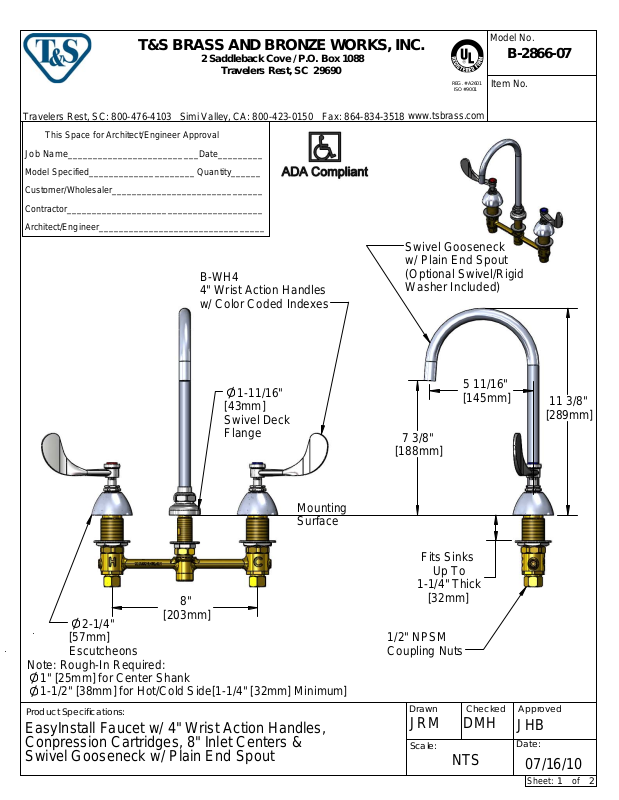

Product Specifications:
EasyInstall Faucet w/ 4" Wrist Action Handles,
Conpression Cartridges, 8" Inlet Centers &
Swivel Gooseneck w/ Plain End Spout
7 3/8"
[188mm]
Fits Sinks
Up To
1-1/4" Thick
[32mm]
1/2" NPSM
Coupling Nuts
Drawn Checked
JRM
Scale:
NTS
5 11/16"
[145mm]
DMH
11 3/8"
[289mm]
Approved
JHB
Date:
07/16/10
Sheet:
of
1
2
Page 2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
14
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
Washer Converts Swivel
Gooseneck to Rigid. To
Install: Uninstall
Gooseneck, Lift Out, &
Place Washer into Swivel
Body. Reinstall
Gooseneck.
15
1
2
Model No.
B-2866-07
REG. #A2601
ISO #9001
Fax: 864-834-3518
ITEM
NO.
SALES NO. DESCRIPTION
www.tsbrass.com
1 016742-45 Center Flange Nut
2 016745-45 Compression Nut & Fitting
3 001686-45 Blue CW Index
4 000925-45 Lab Handle Screw
5 B-WH4 4" Wrist Action Handle
6 001257-40 Bell Escutcheon
7 016752-40 EZ-Install LTC Eterna (Teflon)
8 016749-45 Sidebody C-Washer
9 016777-45 CWS Hanger
10 000958-20 Coupling Nut
11 016753-40 EZ-Installl RTC Eterna (Teflon)
12 016743-25 CWS Bonnet Assembly
13 009002-25 Packing Nut Assembly
14 001194-45 Red HW Index
15 014200-45 Star Washer, Anti-Rotation
Item No.
13
12
11
10
3
4
5
6
7
017245-40
Installation Repair Kit
Includes #1, (2)#8, & #9
8
9
Product Specifications:
EasyInstall Faucet w/ 4" Wrist Action Handles,
Conpression Cartridges, 8" Inlet Centers &
Swivel Gooseneck w/ Plain End Spout
Drawn
JRM
Scale:
Checked
DMH
NTS
Approved
JHB
Date:
07/16/10
Sheet:
of
2
2
