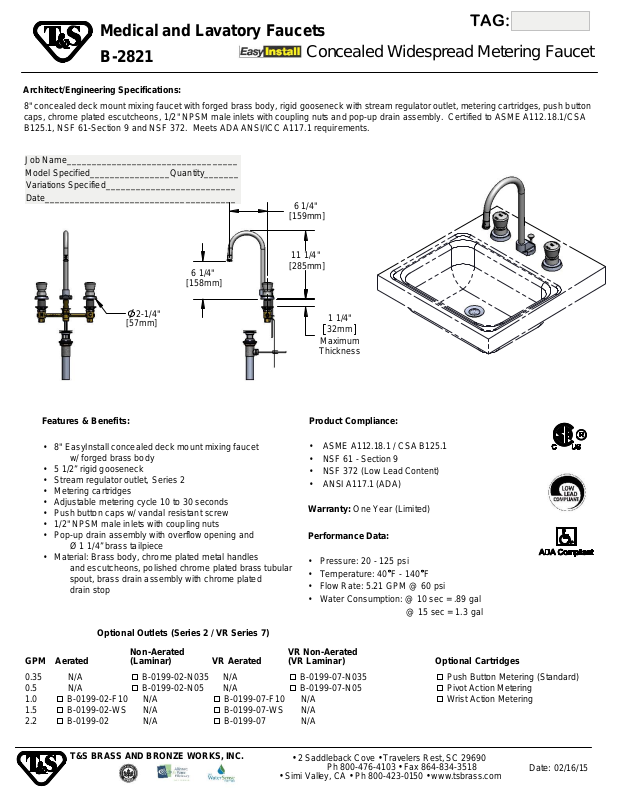

Page 1
Medical and Lavatory Faucets
TAG:
B-2821
Architect/Engineering Specifications:
8" concealed deck mount mixing faucet with forged brass body, rigid gooseneck with stream regulator outlet, metering cartridges, push button
caps, chrome plated escutcheons, 1/2" NPSM male inlets with coupling nuts and pop-up drain assembly. Certified to ASME A112.18.1/CSA
B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
6 1/4"
[158mm]
2-1/4"
[57mm]
Concealed Widespread Metering Faucet
6 1/4"
[159mm]
11 1/4"
[285mm]
1 1/4"
32mm
Maximum
Thickness
Features & Benefits:
8" EasyInstall concealed deck mount mixing faucet •
w/ forged brass body
5 1/2” rigid gooseneck•
Stream regulator outlet, Series 2 •
Metering cartridges•
Adjustable metering cycle 10 to 30 seconds•
Push button caps w/ vandal resistant screw•
1/2" NPSM male inlets with coupling nuts
•
Pop-up drain assembly with overflow opening and
•
Ø 1 1/4” brass tailpiece
•
Material: Brass body, chrome plated metal handles
and escutcheons, polished chrome plated brass tubular
spout, brass drain assembly with chrome plated
drain stop
Optional Outlets (Series 2 / VR Series 7)
GPM
0.35
0.5
1.0
1.5
2.2
Aerated
N/A
N/A
B-0199-02-F10
B-0199-02-WS
B-0199-02
Non-Aerated
(Laminar)
B-0199-02-N035
B-0199-02-N05
N/A
N/A
N/A
VR Aerated
N/A
N/A
B-0199-07-F10
B-0199-07-WS
B-0199-07
Product Compliance:
ASME A112.18.1 / CSA B125.1
•
NSF 61 - Section 9•
NSF 372 (Low Lead Content)
•
ANSI A117.1 (ADA)
•
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
Flow Rate: 5.21 GPM @ 60 psi •
Water Consumption: @ 10 sec = .89 gal
•
VR Non-Aerated
(VR Laminar)
B-0199-07-N035
B-0199-07-N05
N/A
N/A
N/A
One Year (Limited)
F - 140 F•
@ 15 sec = 1.3 gal
Optional Cartridges
Push Button Metering (Standard)
Pivot Action Metering
Wrist Action Metering
T&S BRASS AND BRONZE WO RKS, INC.
2 Saddleback Cove
•
Ph 800-476-4103
Simi Valley, CA
•
•
Travelers Rest, SC 29690
• Fax 864-834-3518
Ph 800-423-0150 • www.tsbrass.com
•
Date:
02/16/15
