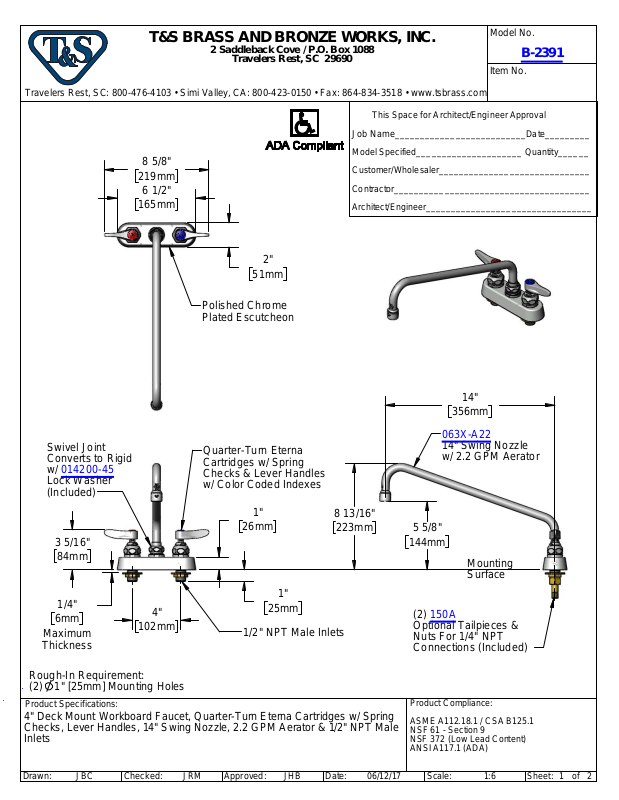

T&S Brass B-2391 Parts Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2391
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
8 5/8"
219mm
6 1/2"
165mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
2"
51mm
Polished Chrome
Plated Escutcheon
Swivel Joint
Converts to Rigid
w/ 014200-45
Lock Washer
(Included)
3 5/16"
Quarter-Turn Eterna
Cartridges w/ Spring
Checks & Lever Handles
w/ Color Coded Indexes
1"
26mm
8 13/16"
223mm
84mm
1/4"
6mm
Maximum
102mm
4"
1"
25mm
1/2" NPT Male Inlets
Thickness
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)
Product Specifications:
4" Deck Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 14" Swing Nozzle, 2.2 GPM Aerator & 1/2" NPT Male
Inlets
14"
356mm
063X-A22
14" Swing Nozzle
w/ 2.2 GPM Aerator
5 5/8"
144mm
Mounting
Surface
(2) 150A
Optional Tailpieces &
Nuts For 1/4" NPT
Connections (Included)
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn: Approved:
JBC
Checked:
JHB
Date: 1:6
06/12/17JRM
Scale:
Sheet:
of
2
1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2391
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
2
SALES NO. DESCRIPTION
1 B-0199-01
2 063X-A22
2.2 GPM Aerator, 55/64"-27 UN
Female
14" Swing Nozzle w/ 2.2 GPM
Aerator
3 009538-45 Swivel Washer
4 011429-45 Swivel Sleeves (2)
5 001074-45 O-Ring
6 014200-45 Star Washer, Anti-Rotation
3
7 018506-19NS Blue Button Index, Press-in
8 000925-45 Lab Handle Screw
1
19
18
17
4
5
6
7
8
9
10
9 001638-45NS Lever Handle (New Style)
Quarter-Turn Eterna Cartridge
10 002711-40NS
w/ Spring Check, Handle, Blue
Index & Screw, LTC
11 012442-40NS
Quarter-Turn Eterna Cartridge
w/ Spring Check, LTC
12 019376-40 Escutcheon Lock Nut
13 019374-40
B-1100 Eterna Workboard
Escutcheon
14 000999-45 Brass Lock Washer
15 002954-45 Shank Lock Nut
16 150A 1/4" NPT Tailpiece & Nut
11
12
17 012443-40NS
18 002712-40NS
Quarter-Turn Eterna Cartridge
w/ Spring Check, RTC
Quarter-Turn Eterna Cartridge
w/ Spring Check, Handle, Red
Index & Screw, RTC
13
19 001193-19NS Red Button Index, Press-in
14
15
16
Product Specifications:
4" Deck Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 14" Swing Nozzle, 2.2 GPM Aerator & 1/2" NPT Male
Inlets
JBC
Checked: Date:
JRM
Approved:Drawn: NTS
06/12/17 Scale:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
of
2
Sheet:JHB
2
