T&S Brass B-2360 Specifications
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2360
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
2 3/16"
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

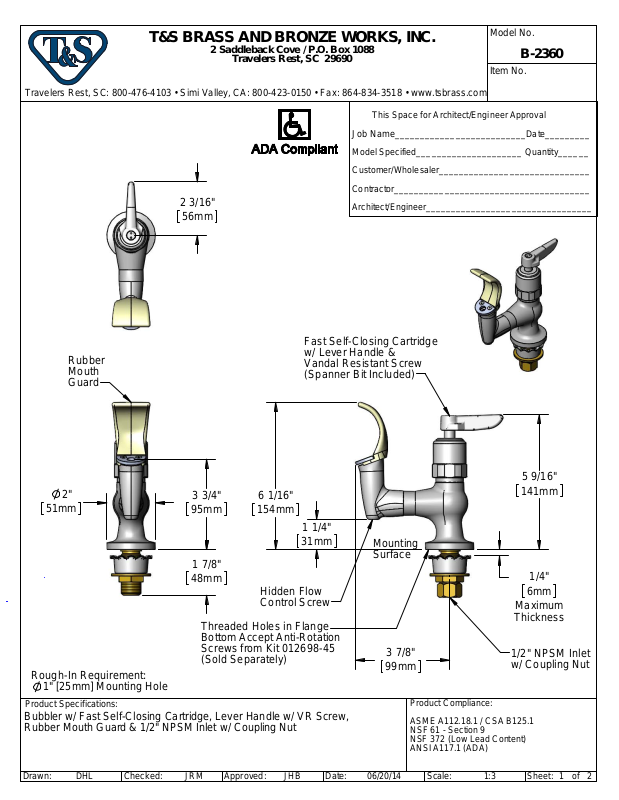

56mm
Fast Self-Closing Cartridge
w/ Lever Handle &
Rubber
Mouth
Vandal Resistant Screw
(Spanner Bit Included)
Guard
2"
51mm
3 3/4"
95mm
6 1/16"
154mm
1 1/4"
31mm
1 7/8"
48mm
Hidden Flow
Control Screw
Threaded Holes in Flange
Bottom Accept Anti-Rotation
Screws from Kit 012698-45
(Sold Separately)
Rough-In Requirement:
1" [25mm] Mounting Hole
Product Specifications:
Bubbler w/ Fast Self-Closing Cartridge, Lever Handle w/ VR Screw,
Rubber Mouth Guard & 1/2" NPSM Inlet w/ Coupling Nut
Mounting
Surface
3 7/8"
99mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
5 9/16"
141mm
1/4"
6mm
Maximum
Thickness
1/2" NPSM Inlet
w/ Coupling Nut
Drawn: Approved:
DHL
Checked:
JHB
Date: 1:3
06/20/14 JRM
Scale:
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2360
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 015317-40 Fast Self-Close Cartridge
2 001638-45 Lever Handle
3 VRS-1 VR Screw w/ Spanner Bit
4 009598-45 Mouth Guard Screw
14
5 009595-45 Rubber Mouth Guard
6 009596-40 Mouth Guard Holder
3
7 009594-45 Flow Straightener
8 012697-45 Flow Control Screw
2
4
1
5
9 015319-45 O-Ring
10 000958-20 Coupling Nut
11 002954-45 Shank Lock Nut
12 000999-45 Brass Lock Washer
13 001000-45 Rosette Washer
14 014075-45 #10 Spanner Bit
6
13
12
11
10
7
8
9
Product Specifications:
Bubbler w/ Fast Self-Closing Cartridge, Lever Handle w/ VR Screw,
Rubber Mouth Guard & 1/2" NPSM Inlet w/ Coupling Nut
DHL
Checked: Date:
JRM
Approved:Drawn:
06/20/14
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
NTS
of
2
2Sheet:JHB
