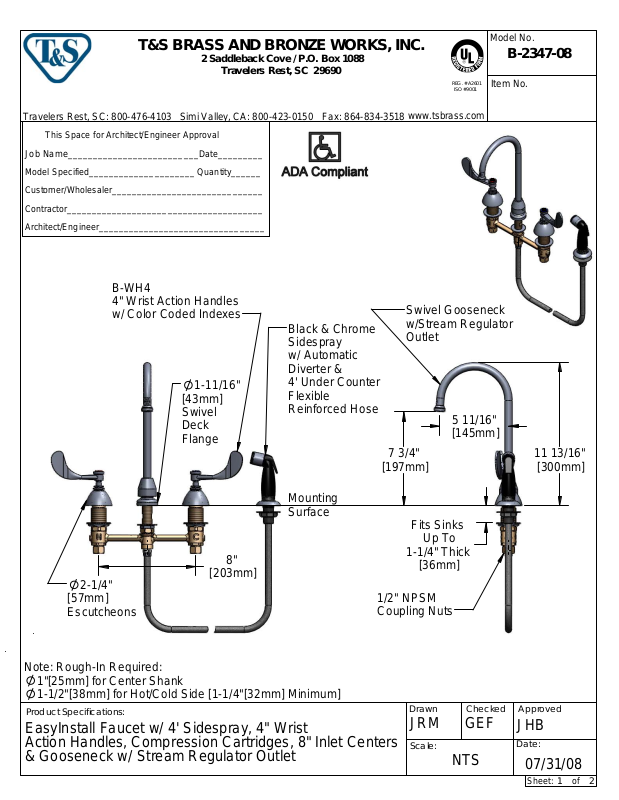

B-WH4
4" Wrist Action Handles
w/ Color Coded Indexes
Simi Valley, CA: 800-423-0150
1-11/16"
[43mm]
Swivel
Deck
Flange
Fax: 864-834-3518
Black & Chrome
Sides
pray
w/ Automatic
Diverter &
4' Under Counter
Flexible
Reinforced Hose
REG. #A2601
ISO #9001
www.tsbrass.com
Swivel Gooseneck
w/Stream Regulator
Outlet
5 11/16"
[145mm]
7 3/4"
[197mm]
Model No.
B-2347-08
Item No.
11 13/16"
[300mm]
Mounting
Surface
8"
[203mm]
2-1/4"
[57mm]
Escutcheons
1/2" NPSM
Coupling Nuts
Note: Rough-In Required:
1"[25mm] for Center Shank
1-1/2"[38mm] for Hot/Cold Side [1-1/4"[32mm] Minimum]
Product Specifications:
EasyInsta ll Faucet w/ 4' Sidespray, 4" Wrist
Action Handles, Compression Cartridges, 8" Inlet Centers
& Gooseneck w/ Stream Regulator Outlet
Fits Sinks
Up To
1-1/4" Thick
[36mm]
Drawn
JRM
Scale:
NTS
Checked
GEF
Approved
JHB
Date:
07/31/08
Sheet:
of
1
2
Page 2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
B-2347-08
Item No.
4
3
2
1
22
21
20
19
16
18
17
ITEM
NO.
SALES NO. DESCRIPTION
1 B-PT Stream Regulator Outlet
2 000863-25 Index Ring
3 001323-45 Screen
4 001048-45 Washer
5 017208-40 Center Body Diverter Asy
6 002338-45 Diverter
7 001686-45 Blue CW Index
8 000925-45 Lab Handle Screw
9 B-WH4 4" Wrist Action Handle
5
6
7
10 016752-40
11 016749-45 C-Washer
CWS Bonnet & LTC
Eterna Cartridge
12 016745-45 Compression Nut & Fitting
8
13 016777-45 CWS Hanger
14 001495-45 Side Spray
9
15 001496-45 Hose Guide
16 000958-20 Coupling Nut
10
11
17 016742-45 Center Flange Nut
18 016753-40
CWS Bonnet & RTC Eterna
Cartridge
19 016743-25 CWS Bonnet Assembly
12
20 009002-25 Packing Assembly
21 001257-40 Bell Escutcheon
22 001194-45 Red HW Index
13
14
15
Product Specifications:
EasyInstall Faucet w/ 4' Sidespray, 4" Wrist
Action Handles, Compression Cartridges, 8" I nlet Centers
& Gooseneck w/ Stream Regulator Outlet
017245-40
Installation Repair Kit
Includes #17, (2)#11, & #13
Drawn
JRM
Scale:
Checked
GEF
NTS
Approved
JHB
Date:
07/31/08
Sheet:
of
2
2
