T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2345-01-XX
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
Wall
3 1/16"
[78mm]
Fax: 864-834-3518
www.tsbrass.com
Eterna Cartridges w/
Spring Checks &
Lever Handles w/
Color Coded Indexes
Garden Hose
Outlet
2 1/16"
[52mm]
00XX
1/2" NPT Female Inlet
Ø 2"
[51mm]
w/ Screwdriver Stop
163A
Screwdriver Stop
Inlets Adjustable from
2 1/2" to 8 1/4"
[64mm] to [210mm] cc
Below or Above Centerline
1/2" NPT Female Inlet
Product Specifications:
Wall Mount Polish Chrome Mixing Faucet w/ 1/2" NPT
Adjustable Inlets w/ Screwdriver Stops, Lever Handles
& Eterna Cartridges w/ Spring Checks
9 1/4"
[235mm]
Drawn Checked
DHL
Scale:
KJG
1:4
Approved
JHB
Date:
08/03/10
Sheet:
1
of
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2345-01-XX
Item No.
Travelers Rest, SC: 800-476-4103

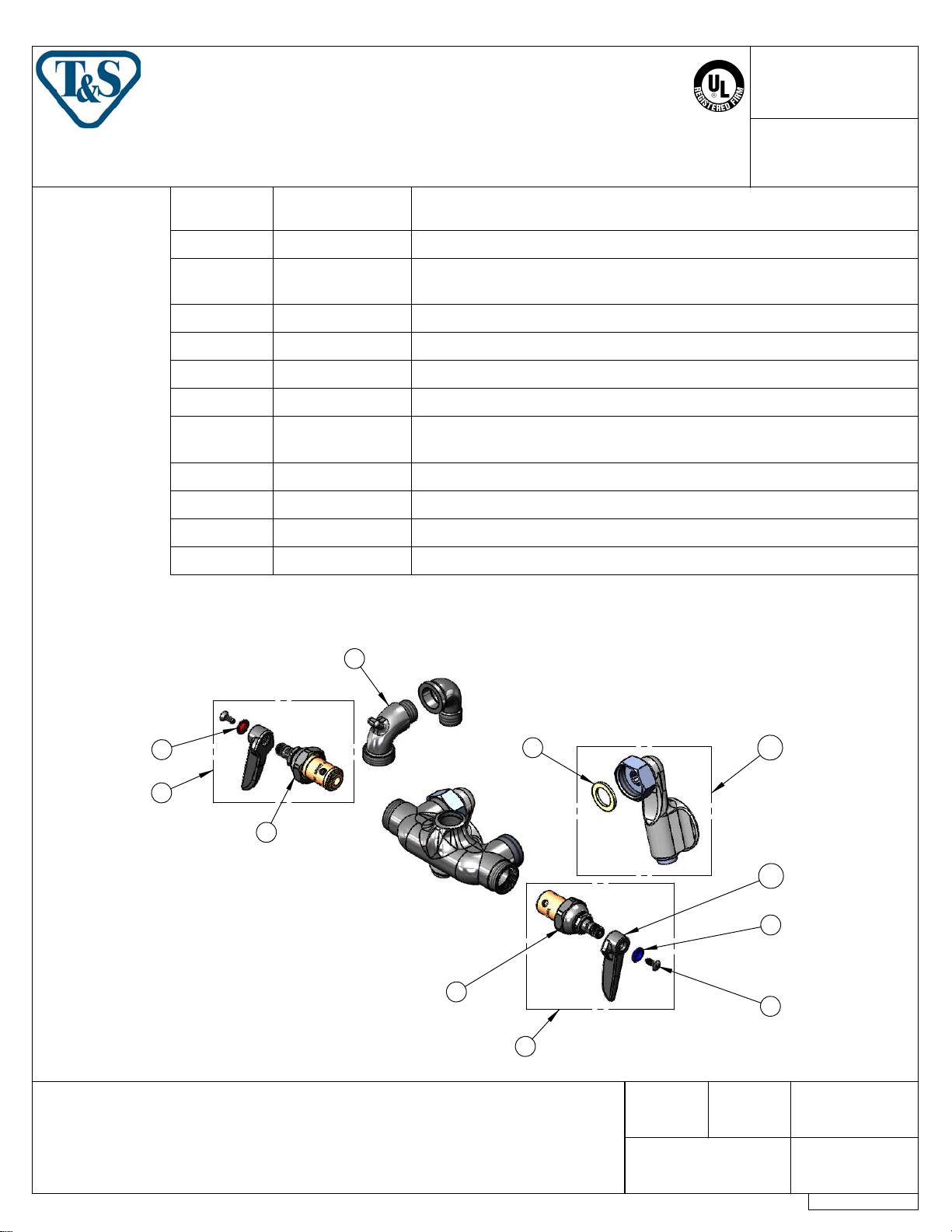

ITEM NO. SALES NO. DESCRIPTION
1 001661-45 Red Index-HW
2 002712-40
3 012443-40 Hot Eterna Spindle Assembly w/ Spring Check
4 000270-40 Spout, Garden Hose Outlet
5 001019-45 Coupling Nut Washer
6 012442-40 Cold Eterna Spindle Assembly w/ Spring Check
7 002711-40
8 000922-45 Lever Handle Screw
9 001660-45 Blue Index-CW
10 001638-45 Lever Handle
11 00XX 1/2" NPT Adjustable Flange Assembly w/ Screwdriver Stop
Simi Valley, CA: 800-423-0150
Hot Eterna ASpindle Assembly w/ Spring Check, Lever
Handle, Color Coded Index & Screw
Cold Eterna ASpindle Assembly w/ Spring Check, Lever
Handle, Color Coded Index & Screw
Fax: 864-834-3518
www.tsbrass.com
1
2
Product Specifications:
4
5
3
6
7
Drawn
Checked
11
10
9
8
Approved
Wall Mount Polish Chrome Mixing Faucet w/ 1/2" NPT
Adjustable Inlets w/ Screwdriver Stops, Lever Handles
& Eterna Cartridges w/ Spring Checks
DHL
Scale:
1:4
KJG
JHB
Date:
08/03/10
Sheet:
of
2
2
