T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2345
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
www.tsbrass.com
Support Rod Asm. Furnished w/
Wall Bracket and Mounting Screws
Wall
Eterna Cartridges
w/ Spring Checks
16 5/16"
[414mm]
Lever Handles
w/ Color Coded
Indexes
1/2" NPT
Female
Inlets
2 1/2"
[64mm]
Male Garden
Hose Outlet
Integral Stop
Product Specifications:
3 1/16"
[78mm]
6 1/8"
[156mm]

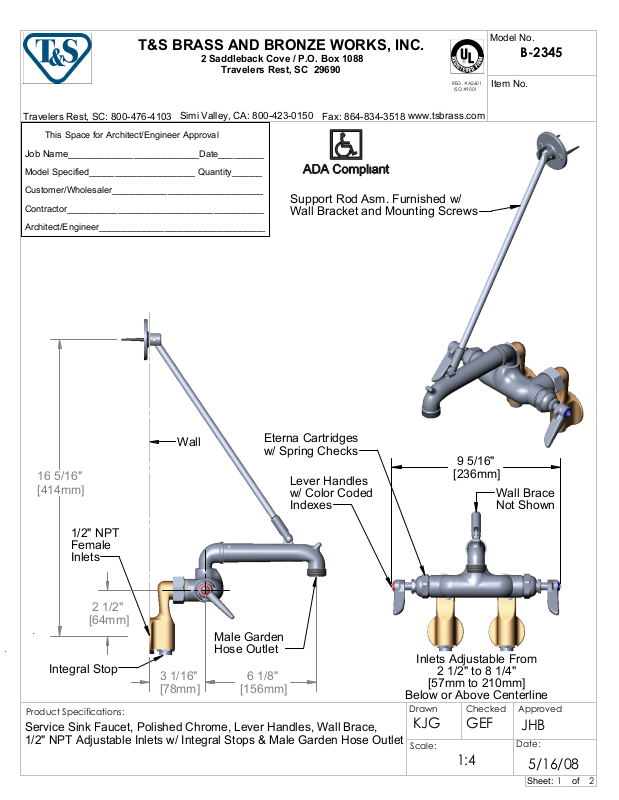

Service Sink Faucet, Polished Chrome, Lever Handles, Wall Brace,
1/2" NPT Adjustable Inlets w/ Integral Stops & Male Garden Hose Outlet
9 5/16"
[236mm]
Wall Brace
Not Shown
Inlets Adjustable From
2 1/2" to 8 1/4"
[57mm to 210mm]
Below or Above Centerline
Drawn
KJG
Scale:
Checked
GEF
1:4
Approved
JHB
Date:
5/16/08
Sheet:
of
1
2
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2345
Item No.
Travelers Rest, SC: 800-476-4103
Simi Valley, CA: 800-423-0150
ITEM
Fax: 864-834-3518
NO.
1
2
3
4
5
SALES NO.
001661-45
001638-45
012443-40
001019-45
012442-40
6
7
8
9
10
11
001660-45
000922-45
002712-40
002711-40
00XX
163A
www.tsbrass.com
DESCRIPTION
Red Index-HW
Lever Handle
Hot Eterna Spindle
Assembly w/ Spring Check
Coupling Nut Washer
Cold Eterna Spindle
Assembly w/ Spring Check
Flange Asm, 1/2" Female
Inlet w/ Screw-driver Stop
BST Assembly, 163A
Blue Index-CW
Lever Handle Screw
Hot Eterna Spindle Asm w/
Spring Check, Handle, Index
& Screw
Cold Eterna Spindle Asm w/
Spring Check, Handle, Index
& Screw
1
4
2
5
10
Product Specifications:
3
Service Sink Faucet, Polished Chrome, Lever Handles, Wall Brace,
1/2" NPT Adjustable Inlets w/ Integral Stops & Male Garden Hose Outlet
Drawn
KJG
Scale:
11
Checked
GEF
1:4
6
7
8
9
Approved
JHB
Date:
5/16/08
Sheet:
of
2
2
