T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
B-2297
Item No.
5 11/16"
144mm
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
2 11/16"
68mm
4 5/16"
110mm
1 1/2"
3/8" NPT Inlet
38mm
3"
76mm
Rough-In Requirement:
(2)
Product Specifications:
1 9/16" [40mm] Faucet Mounting Holes
1/4" [6mm] Center Mounting Screw
Concealed Mixing Faucet w/ 4-Arm Handles
Drawn: Approved:
MRC
Checked:
JHB
3/8" NPT Inlet
3/8" NPT Outlet
Date:
02/14/20JRM
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
1:2 of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

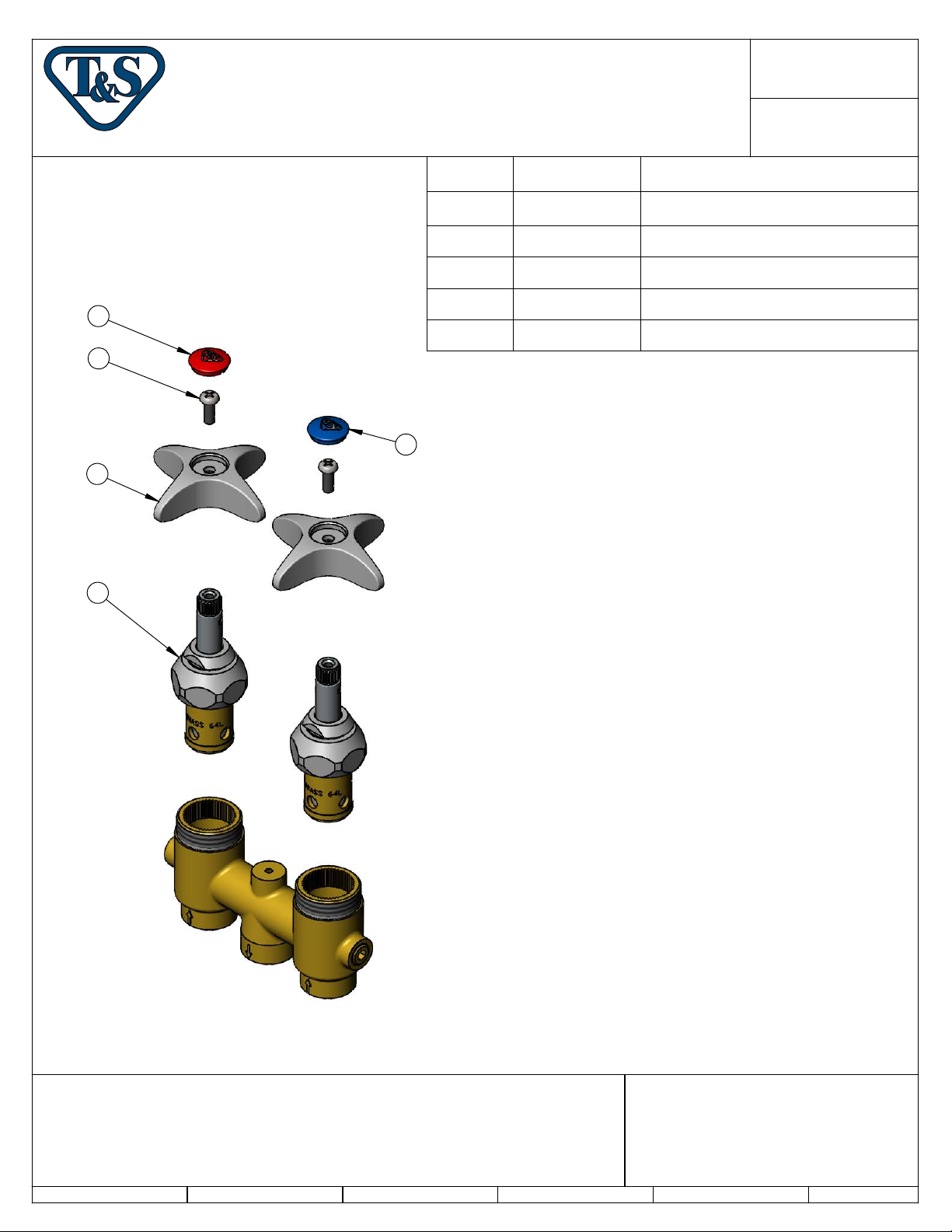

ITEM NO. SALES NO. DESCRIPTION
1 006020-40NS
2 002521-45NS 4-Arm Handle (New Style)
3 000925-45 Lab Handle Screw
Quarter-Turn Long Spindle Eterna
Cartridge w/ Spring Check, RTC
Model No.
B-2297
Item No.
4
4 001193-19NS Red Button Index, Press-in
5 018506-19NS Blue Button Index, Press-in
3
5
2
1
Product Specifications:
Concealed Mixing Faucet w/ 4-Arm Handles
Drawn:
MRC
JRM
Approved:
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Date:Checked:
02/14/20 Scale:
NTS
of
2
2Sheet:JHB
