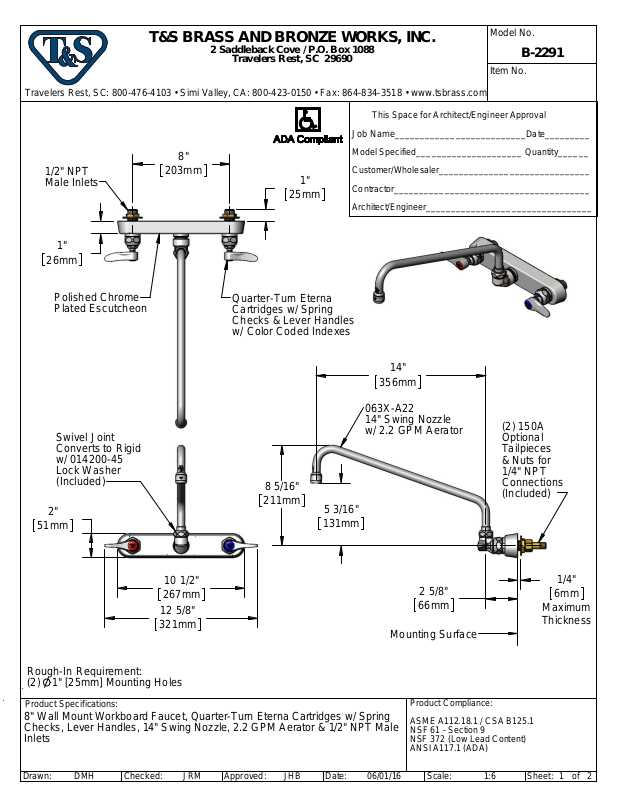

T&S Brass B-2291 Specifications

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-2291

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

__________________________Date_________

1/2" NPT
Male Inlets

8"

203mm

Job Name

1"

25mm

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

1"

26mm

Polished Chrome
Plated Escutcheon

Quarter-Turn Eterna
Cartridges w/ Spring
Checks & Lever Handles
w/ Color Coded Indexes

14"

356mm

Swivel Joint
Converts to Rigid
w/ 014200-45
Lock Washer
(Included)

2"

51mm

Rough-In Requirement:

1" [25mm] Mounting Holes

(2)

10 1/2"

267mm

12 5/8"

321mm

063X-A22
14" Swing Nozzle
w/ 2.2 GPM Aerator

(2) 150A
Optional
Tailpieces
& Nuts for
1/4" NPT

8 5/16"

211mm

5 3/16"

Connections
(Included)

131mm

2 5/8"

66mm

1/4"

6mm

Maximum

Thickness

Mounting Surface

Product Specifications:

8" Wall Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 14" Swing Nozzle, 2.2 GPM Aerator & 1/2" NPT Male
Inlets

Drawn: Approved:

DMH

Checked:

JHB

Date:

06/01/16JRM

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

Scale:

1:6

of

2

1Sheet:

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-2291

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

ITEM

SALES NO. DESCRIPTION

NO.

1 B-0199-01 2.2 GPM Aerator, 55/64"-27 UN Female
2 063X-A22 14" Swing Nozzle w/ 2.2 GPM Aerator

3 019360-40 Swivel Nut (New Style)
4 009538-45 Swivel Washer
5 011429-45 Swivel Sleeves (2)

6 001074-45 O-Ring
7 019382-40

Quarter-Turn New Style Eterna Cartridge
w/ Spring Check, LTC

8 150A 1/4" NPT Tailpiece & Nut

9 002954-45 Shank Lock Nut
10 000999-45 Brass Lock Washer
11 019375-40 B-1120 Eterna Workboard Escutcheon
12 019376-40 Escutcheon Lock Nut

13 019383-40

Quarter-Turn New Style Cerama Cartridge
w/ Check Valve, RTC

14 019363-45 Blue Button Index, Press-in
15 001017-45 Washer

2
3

4
5

16 000082-40 B-1100 Knob
17 014200-45 Star Washer, Anti-Rotation
18 019364-45 Red Button Index, Press-in
19 000925-45 Lab Handle Screw

20 019361-45 Lever Handle (New Style)

6

1

7

20

19
18

17

12

16

15

Product Specifications:

13

14

8" Wall Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 14" Swing Nozzle, 2.2 GPM Aerator & 1/2" NPT Male
Inlets

DMH

Checked: Date:

JRM

Approved:Drawn:

06/01/16

8

9

10

11

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

Scale:

NTS

of

2

2Sheet:JHB
