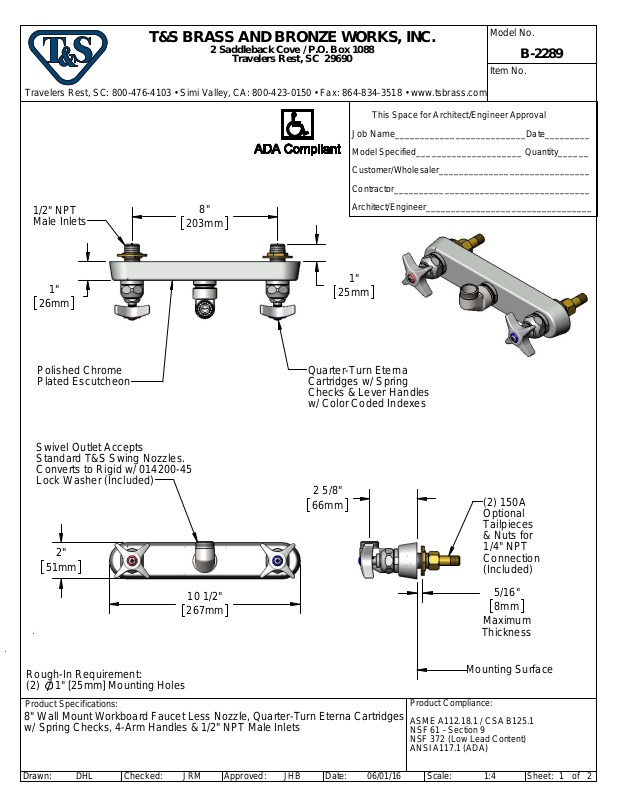

Page 1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2289
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
__________________________Date_________
1/2" NPT
Male Inlets
1"
8"
203mm
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
1"
25mm
26mm
Polished Chrome
Plated Escutcheon
Quarter-Turn Eterna
Cartridges w/ Spring
Checks & Lever Handles
w/ Color Coded Indexes
Swivel Outlet Accepts
Standard T&S Swing Nozzles.
Converts to Rigid w/ 014200-45
Lock Washer (Included)
2 5/8"
66mm
2"
51mm
10 1/2"
267mm
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)
Product Specifications:
8" Wall Mount Workboard Faucet Less Nozzle, Quarter-Turn Eterna Cartridges
w/ Spring Checks, 4-Arm Handles & 1/2" NPT Male Inlets
(2) 150A
Optional
Tailpieces
& Nuts for
1/4" NPT
Connection
(Included)
5/16"
8mm
Maximum
Thickness
Mounting Surface
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
DHL
Checked:
Approved:Drawn:
JHB
Date:
06/01/16JRM
Scale:
1:4
of
2
1Sheet:
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2289
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
1 019382-40
SALES NO. DESCRIPTION
Quarter-Turn New Style Eterna Cartridge
w/ Spring Check, RTC
2 150A 1/4" NPT Tailpiece & Nut
3 002954-45 Shank Lock Nut
4 000999-45 Brass Lock Washer
5 019375-40 B-1120 Eterna Workboard Escutcheon
6 019376-40 Escutcheon Lock Nut
7 002521-45 4-Arm Handle
8 000922-45 Lever Handle Screw
9 001660-45 Blue Index-CW
10 001017-45 Washer
11 000082-40 B-1100 Knob
12 014200-45 Star Washer, Anti-Rotation
13 001661-45 Red Index-HW
1
13
12
1
7
8
11
Product Specifications:
10
9
8" Wall Mount Workboard Faucet Less Nozzle, Quarter-Turn Eterna Cartridges
w/ Spring Checks, 4-Arm Handles & 1/2" NPT Male Inlets
2
3
4
5
6
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
DHL
Checked: Date:
JRM
Approved:Drawn:
06/01/16
Scale:
NTS
of
2
2Sheet:JHB
