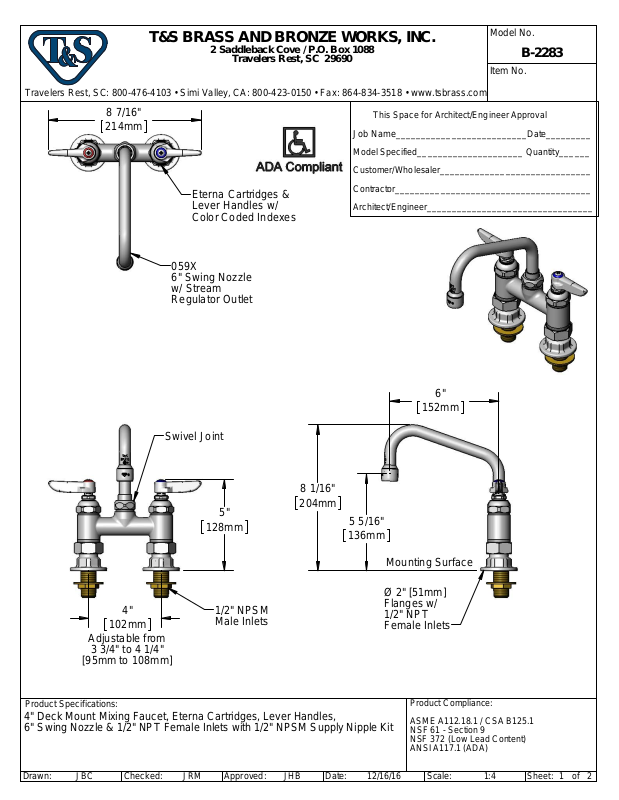

Page 1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2283
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
8 7/16"
214mm
Eterna Cartridges &
Lever Handles w/
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Color Coded Indexes
059X
6" Swing Nozzle
w/ Stream
Regulator Outlet
4"
102mm
Adjustable from
3 3/4" to 4 1/4"
[95mm to 108mm]
Swivel Joint
5"
128mm
1/2" NPSM
Male Inlets
6"
152mm
8 1/16"
204mm
5 5/16"
136mm
Mounting Surface
Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
Product Specifications:
4" Deck Mount Mixing Faucet, Eterna Cartridges, Lever Handles,
6" Swing Nozzle & 1/2" NPT Female Inlets with 1/2" NPSM Supply Nipple Kit
Drawn:
JBC
Checked:
Approved: 2
JHB
Date:
12/16/16JRM
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
1:4
Sheet: 1
of
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2283
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 059X 6" Swing Nozzle
2B-PT
Full Flow Stream Regulator,
55/64-27
3 009538-45 Swivel Washer
4 011429-45 Swivel Sleeves (2)
2
3
5 001074-45 O-Ring
6 001661-45 Red Index-HW
7 000922-45 Lever Handle Screw
4
1
5
6
7
18
8
17
9
16
10
8 001660-45 Blue Index-CW
9 005959-40 Eterna Cartridge, LTC
10 002713-40
Eterna Cartridge, LTC w/ Handle,
Index & Screw
11 001019-45 Coupling Nut Washer
12 00AA 1/2" NPT Female Eccentric Flange
13 B-0425 1/2" NPT Close Nipple
14 000999-45 Brass Lock Washer
15 002954-45 Shank Lock Nut
16 005960-40 Eterna Cartridge, RTC
17 002714-40
Eterna Cartridge, RTC w/ Handle,
Index & Screw
18 001638-45 Lever Handle
11
12
13
14
15
Product Specifications:
4" Deck Mount Mixing Faucet, Eterna Cartridges, Lever Handles,
6" Swing Nozzle & 1/2" NPT Female Inlets with 1/2" NPSM Supply Nipple Kit
Drawn:
JBC
Checked:
JRM
Approved: NTS
Date:
12/16/16 Scale:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
of
2
Sheet:JHB
2
