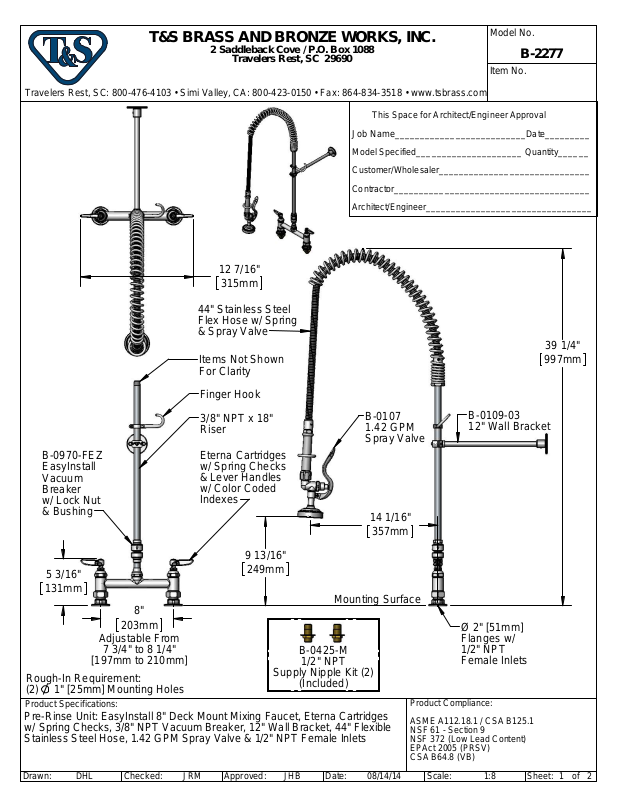

T&S Brass B-2277 Specifications

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-2277

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

12 7/16"

This Space for Architect/Engineer Approval

Job Name

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

__________________________Date_________

315mm

44" Stainless Steel
Flex Hose w/ Spring
& Spray Valve

Items Not Shown
For Clarity

39 1/4"

997mm

Finger Hook
3/8" NPT x 18"

Riser

B-0107

1.42 GPM
Spray Valve

B-0970-FEZ
EasyInstall
Vacuum
Breaker
w/ Lock Nut
& Bushing

Eterna Cartridges
w/ Spring Checks
& Lever Handles
w/ Color Coded
Indexes

14 1/16"

357mm

5 3/16"

9 13/16"

249mm

131mm

Mounting Surface

8"

203mm

Adjustable From

7 3/4" to 8 1/4"

[197mm to 210mm]

Rough-In Requirement:

1" [25mm] Mounting Holes

(2)

Product Specifications:

B-0425-M

1/2" NPT

Supply Nipple Kit (2)

(Included)

Pre-Rinse Unit: EasyInstall 8" Deck Mo unt Mixing Faucet, Eterna Cartridge s
w/ Spring Checks, 3/8" NPT Vacuum Breaker, 12" Wall Bracket, 44" Flexible
Stainless Steel Hose, 1.42 GPM Spray Valve & 1/2" NPT Female Inlets

B-0109-03
12" Wall Bracket

Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
CSA B64.8 (VB)

Drawn: Approved:

DHL

Checked:

JHB

Date:

08/14/14JRM

Scale:

1:8

Sheet:

of

2

1

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-2277

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

ITEM

NO.

SALES NO. DESCRIPTION

1 B-0107 1.42 GPM Spray Valve
2 010476-45 #27 Washer

7

2

3 000907-45 Spray Valve Hold Down Ring
4 002987-40 Grip Handle

6

8

5 001014-45 Washer, B-0100 Hose Barrel

9

6 B-0044-H2A

44" Flexible Stainless Steel Hose,
Less Handle

7 000888-45 EasyInstall Overhead Spring
8 000821-40 Spring Body
9 004R Finger Hook

10 B-0109-03 12" Wall Bracket

5

10

11 000369-40 3/8" NPT x 18" Riser
12 B-0970-FE 3/8" NPT Vacuum Breaker

4

11

13 B-0970-FEZ

EasyInstall 3/8" NPT Vacuum
Breaker

14 000357-40 3/8" NPT x 2" Riser

3

15 EZ-K

EasyInstall Kit: Nut, Bushing, O­ring & Lock Washer

16 001065-45 O-Ring

2

31
30

12
13
14
151
16
17
18
19

17 014200-45 Star Washer, Anti-Rotation
18 001660-45 Blue Index-CW

19 002711-40

Eterna Cartridge, LTC w/ Spring
Check, Handle, Index & Screw

20 001638-45 Lever Handle
21 012442-40

Eterna Cartridge, LTC w/ Spring
Check

22 001019-45 Coupling Nut Washer
23 00AA 1/2" NPT Female Eccentric Flange
24 B-0425-M 1/2" NPT Supply Nipple Kit (2)

25 000999-45 Brass Lock Washer

29

28

27

20
21

22
23

24

26 002954-45 Shank Lock Nut
27 000422-20 1/2" NPT Supply Nipple

28 012443-40
29 002712-40

Eterna Cartridge, RTC w/ Spring
Check
Eterna Cartridge, RTC w/ Spring
Check, Handle, Index & Screw

30 001661-45 Red Index-HW
31 000922-45 Lever Handle Screw

2526

Product Specifications:

Pre-Rinse Unit: EasyInstall 8" Deck Mo unt Mixing Faucet, Eterna Cartridge s
w/ Spring Checks, 3/8" NPT Vacuum Breaker, 12" Wall Bracket, 44" Flexible
Stainless Steel Hose, 1.42 GPM Spray Valve & 1/2" NPT Female Inlets

DHL

Checked: Date:

JRM

Approved:Drawn:

08/14/14

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
CSA B64.8 (VB)

Scale:

NTS

of

2

2Sheet:JHB
