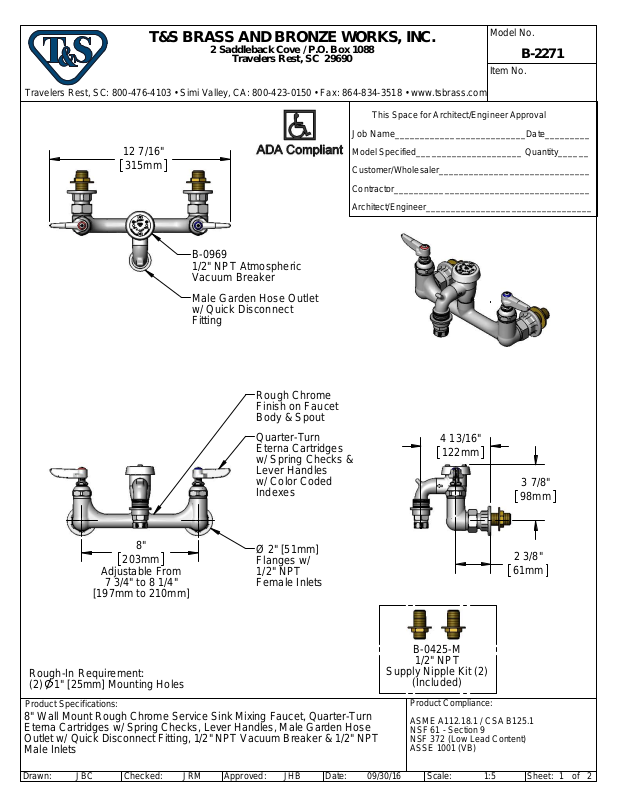

T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2271
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
12 7/16"
315mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
B-0969
1/2" NPT Atmospheric
Vacuum Breaker
Male Garden Hose Outlet
w/ Quick Disconnect
Fitting
8"
203mm
Adjustable From
7 3/4" to 8 1/4"
[197mm to 210mm]
Rough-In Requirement:
(2) 1" [25mm] Mounting Holes
Rough Chrome
Finish on Faucet
Body & Spout
Quarter-Turn
Eterna Cartridges
w/ Spring Checks &
Lever Handles
w/ Color Coded
Indexes
Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
4 13/16"
122mm
B-0425-M
1/2" NPT
Supply Nipple Kit (2)
(Included)
3 7/8"
98mm
2 3/8"
61mm
Product Specifications:
8" Wall Mount Rough Chrome Service Sink Mixing Faucet, Quarter-Turn
Eterna Cartridges w/ Spring Checks, Lever Handles, Male Garden Hose
Outlet w/ Quick Disconnect Fitting, 1/2" NPT Vacuum Breaker & 1/2" NPT
Male Inlets
Drawn: Approved:
JBC
Checked:
JHB
Date:
09/30/16JRM
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ASSE 1001 (VB)
Scale:
1:5
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2271
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 000270-25 Spout w/ Garden Hose Male Outlet
2 B-0969 1/2" NPT Vacuum Breaker
3 001370-45 Plug Quick Disconnect
2
1
4 001371-45 Socket Quick Connect
5 000922-45 Lever Handle Screw
6 001660-45 Blue Index-CW
7 001638-45 Lever Handle
8 012442-40
Quarter-Turn Eterna Cartridge,
LTC w/ Spring Check
Quarter-Turn Eterna Cartridge,
9 002711-40
3
LTC w/ Spring Check, Handle,
Index & Screw
10 001019-45 Coupling Nut Washer
11 00AA 1/2" NPT Female Eccentric Flange
4
12 B-0425-M 1/2" NPT Supply Nipple Kit (2)
13 000999-45 Brass Lock Washer
14 002954-45 Shank Lock Nut
Quarter-Turn Eterna Cartridge,
15 002712-40
RTC w/ Spring Check, Handle,
Index & Screw
17
16 012443-40
Quarter-Turn Eterna Cartridge,
RTC w/ Spring Check
17 001661-45 Red Index-HW
5
16
15
6
7
8
9
11
10
Product Specifications:
8" Wall Mount Rough Chrome Service Sink Mixing Faucet, Quarter-Turn
Eterna Cartridges w/ Spring Checks, Lever Handles, Male Garden Hose
Outlet w/ Quick Disconnect Fitting, 1/2" NPT Vacuum Breaker & 1/2" NPT
Male Inlets
14
13
12
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ASSE 1001 (VB)
JBC
Checked: Date:
JRM
Approved:Drawn:
09/30/16
Scale:
NTS
of
2
2Sheet:JHB
