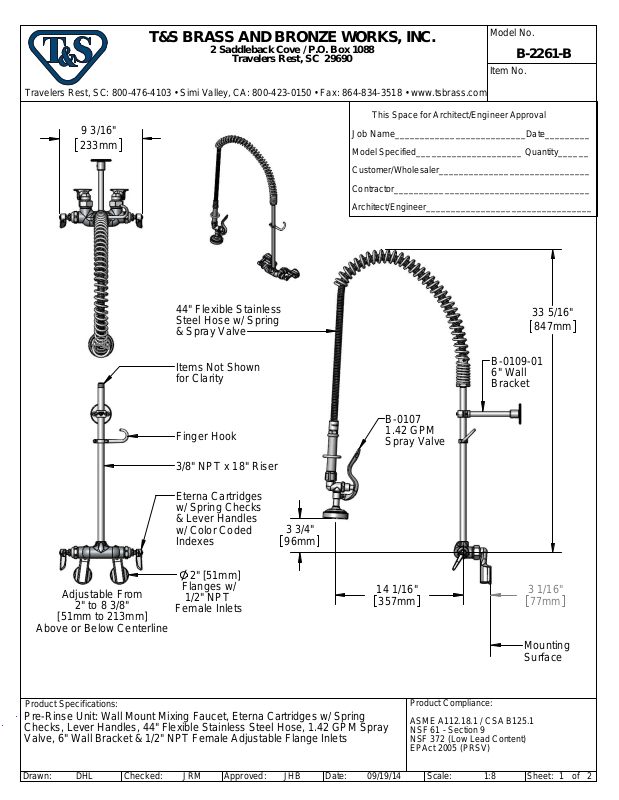

T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2261-B
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
9 3/16"
233mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
44" Flexible Stainless
Steel Hose w/ Spring
& Spray Valve
Items Not Shown
for Clarity
33 5/16"
847mm
B-0109-01
6" Wall
Bracket
Finger Hook
3/8" NPT x 18" Riser
Eterna Cartridges
w/ Spring Checks
& Lever Handles
w/ Color Coded
Indexes
3 3/4"
96mm
2" [51mm]
Adjustable From
2" to 8 3/8"
Flanges w/
1/2" NPT
Female Inlets
14 1/16"
357mm
[51mm to 213mm]
Above or Below Centerline
Product Specifications:
Pre-Rinse Unit: Wall Mount Mixing Faucet, Eterna Cartridges w/ Spring
Checks, Lever Handles, 44" Flexible Stainless Steel Hose, 1.42 GPM Spray
Valve, 6" Wall Bracket & 1/2" NPT Female Adjustable Flange Inlets
B-0107
1.42 GPM
Spray Valve
3 1/16"
77mm
Mounting
Surface
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
Drawn: Approved:
DHL
Checked:
JHB
Date: 1:8
09/19/14JRM
Scale:
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2261-B
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 B-0107 1.42 GPM Spray Valve
2 010476-45 #27 Washer
3 000907-45 Spray Valve Hold Down Ring
4 002987-40 Grip Handle
5 001014-45 Washer, B-0100 Hose Barrel
7
2
8
6 B-0044-H2A
7 000888-45 EasyInstall Overhead Spring
44" Flexible Stainless Steel Hose,
Less Handle
8 000821-40 Spring Body
9 004R Finger Hook
6
10 B-0109-01 6" Wall Bracket
11 000369-40 3/8" NPT x 18" Riser
10
12 001019-45 Coupling Nut Washer
13 00GG 1/2" NPT Female Adjustable Flange
5
9
14 001660-45 Blue Index-CW
15 000922-45 Lever Handle Screw
4
3
11
12
2
13
1
16 001638-45 Lever Handle
17 002711-40
18 012442-40
19 012443-40
20 002712-40
Eterna Cartridge, LTC w/ Spring
Check, Handle, Index & Screw
Eterna Cartridge, LTC w/ Spring
Check
Eterna Cartridge, RTC w/ Spring
Check
Eterna Cartridge, RTC w/ Spring
Check, Handle, Index & Screw
21 001661-45 Red Index-HW
21
14
20
15
19
Product Specifications:
18
17
16
Pre-Rinse Unit: Wall Mount Mixing Faucet, Eterna Cartridges w/ Spring
Checks, Lever Handles, 44" Flexible Stainless Steel Hose, 1.42 GPM Spray
Valve, 6" Wall Bracket & 1/2" NPT Female Adjustable Flange Inlets
DHL
Checked: Date:
JRM
Approved:Drawn:
09/19/14
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
Scale:
NTS
of
2
2Sheet:JHB
