T&S Brass B-2261 Specifications
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2261
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
9 3/16"
233mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

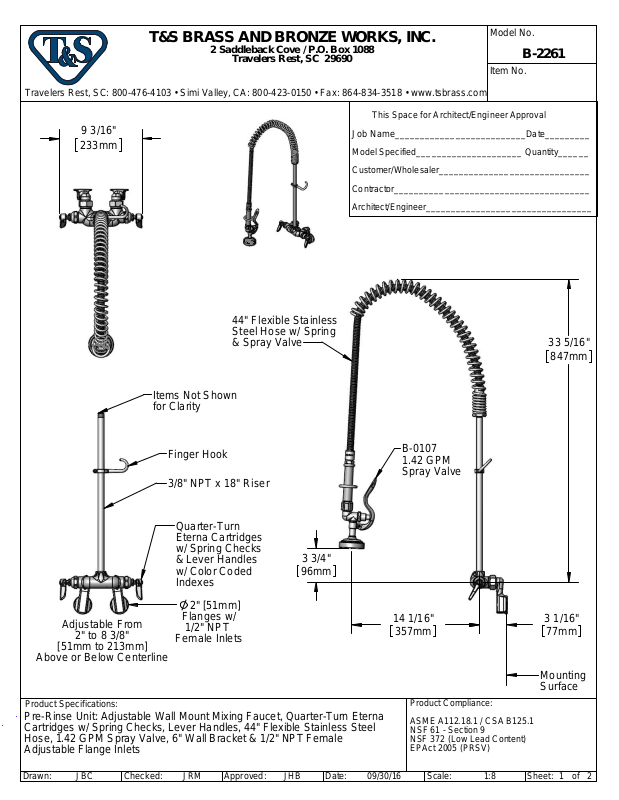

44" Flexible Stainless
Steel Hose w/ Spring
& Spray Valve
33 5/16"
847mm
Items Not Shown
for Clarity
Finger Hook
3/8" NPT x 18" Riser
Quarter-Turn
Eterna Cartridges
w/ Spring Checks
& Lever Handles
w/ Color Coded
3 3/4"
96mm
Indexes
2" [51mm]
Flanges w/
Adjustable From
2" to 8 3/8"
1/2" NPT
Female Inlets
[51mm to 213mm]
Above or Below Centerline
Product Specifications:
Pre-Rinse Unit: Adjustable Wall Mount Mixing Faucet, Quarter-Turn Eterna
Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless Steel
Hose, 1.42 GPM Spray Valve, 6" Wall Bracket & 1/2" NPT Female
Adjustable Flange Inlets
B-0107
1.42 GPM
Spray Valve
14 1/16"
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
3 1/16"
77mm357mm
Mounting
Surface
Drawn:
JBC
Checked:
Approved: 2
JHB
Date:
09/30/16JRM
Scale:
1:8
Sheet: 1
of
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-2261
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 B-0107 1.42 GPM Spray Valve
2 010476-45 #27 Washer
3 000907-45 Spray Valve Hold Down Ring
7
4 002987-40 Grip Handle
5 001014-45 Washer, B-0100 Hose Barrel
6 B-0044-H2A
2
6
8
7 000888-45 EasyInstall Overhead Spring
8 000821-40 Spring Body
44" Flexible Stainless Steel
Hose, Less Handle
9 004R Finger Hook
10 000369-40 3/8" NPT x 18" Riser
11 001019-45 Coupling Nut Washer
12 00GG
5
13 012442-40
9
4
10
14 002711-40
1/2" NPT Female Adjustable
Flange
Quarter-Turn Eterna Cartridge,
LTC w/ Spring Check
Quarter-Turn Eterna Cartridge,
LTC w/ Spring Check, Handle,
Index & Screw
15 001638-45 Lever Handle
16 001660-45 Blue Index-CW
3
2
17 000922-45 Lever Handle Screw
Quarter-Turn Eterna Cartridge,
18 002712-40
RTC w/ Spring Check, Handle,
Index & Screw
19 012443-40
111
12
20 001661-45 Red Index-HW
Quarter-Turn Eterna Cartridge,
RTC w/ Spring Check
20
19
18
13
14
15
16
17
Product Specifications:
Pre-Rinse Unit: Adjustable Wall Mount Mixing Faucet, Quarter-Turn Eterna
Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless Steel
Hose, 1.42 GPM Spray Valve, 6" Wall Bracket & 1/2" NPT Female
Adjustable Flange Inlets
Drawn:
JBC
Checked:
JRM 09/30/16 Scale:
Approved:
Date:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
NTS
of
22Sheet:JHB
