T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2170
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Simi Valley, CA: 800-423-0150
Variations or Applicable Options:
-WH6 6" Wrist Action Handles
-177F Lever Handles
-175F 4-Arm Kitchen Handles
-B-0199-21 2.2 GPM Laminar Flow Outlet
Fax: 864-834-3518
www.tsbrass.com

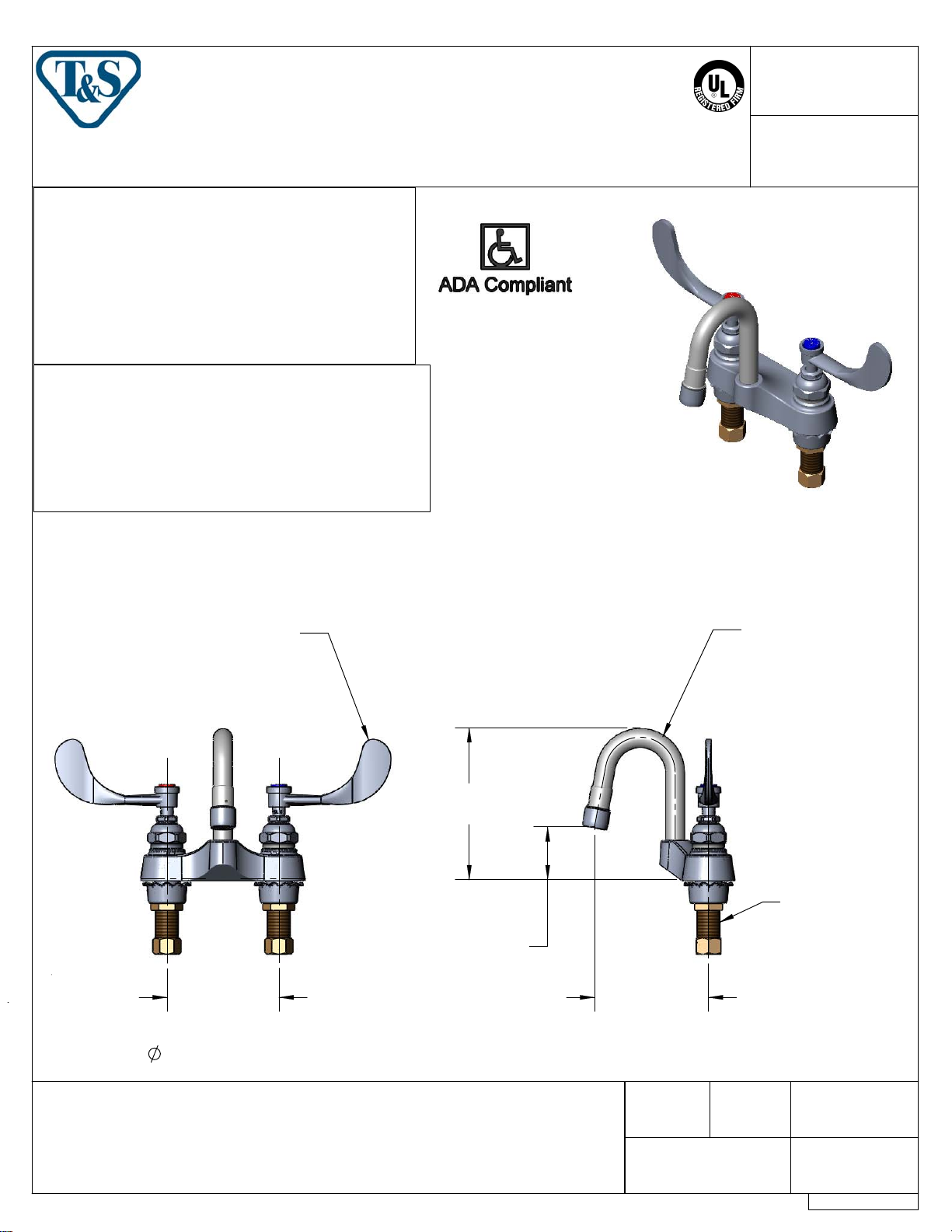

4" Wrist Action
Handles w/
Color Coded
Indexes
4"
(102mm)
Rough-in: 1-1/8" Holes
5 5/16"
(135mm)
1 13/16"
(46mm)
Rigid Gooseneck
w/ 2.2 GPM
Aerator
1/2" NPSM
Male Shanks
w/ Cplg. Nuts
4 1/16"
(103mm)
Product Specifications:
4" Centerset Mixing Faucet w/ 1/2" NPSM Male Shanks,
Eterna Cartridges, 4" Wrist Action Handles, Rigid Gooseneck,
2.2 GPM Aerator,
Scale:
1:4
CheckedDrawn
GEF
Approved
JHBDMH
Date:
10/03/08
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-2170
Item No.
Travelers Rest, SC: 800-476-4103
1
2
3
4
5
9
Simi Valley, CA: 800-423-0150
ITEM
NO.
6
7
8
Fax: 864-834-3518
www.tsbrass.com
SALES NO. DESCRIPTION
1 002669-40 Rigid GN
2 001043-45 Washer
3 044A 3/8" to Aerator Adapter
4 B-0199-01 2.2 GPM Aerator, Female
5 B-0199-02 Aerator, 2.2 GPM, 3/8" NPSM
6 001194-45 Red HW Index
7 001686-45 Blue CW Index
8 000925-45 Lab Handle Screw
9 B-WH4 4" Wrist Action Handle
10 006010-40 Hot Spindle Asm
11 006009-40 Cold Spindle Asm
12 001000-45 Rosette Washer
13 002954-45 Shank Lock Nut
14 000958-20 Coupling Nut
10
11
12
13
14
Product Specifications:
4" Centerset Mixing Faucet w/ 1/2" NPSM Male Shanks,
Eterna Cartridges, 4" Wrist Action Handles, Rigid Gooseneck,
2.2 GPM Aerator,
Drawn
DMH
Scale:
Checked
GEF
1:4
Approved
JHB
Date:
10/03/08
Sheet:
of
2
2
