T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1912-09
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

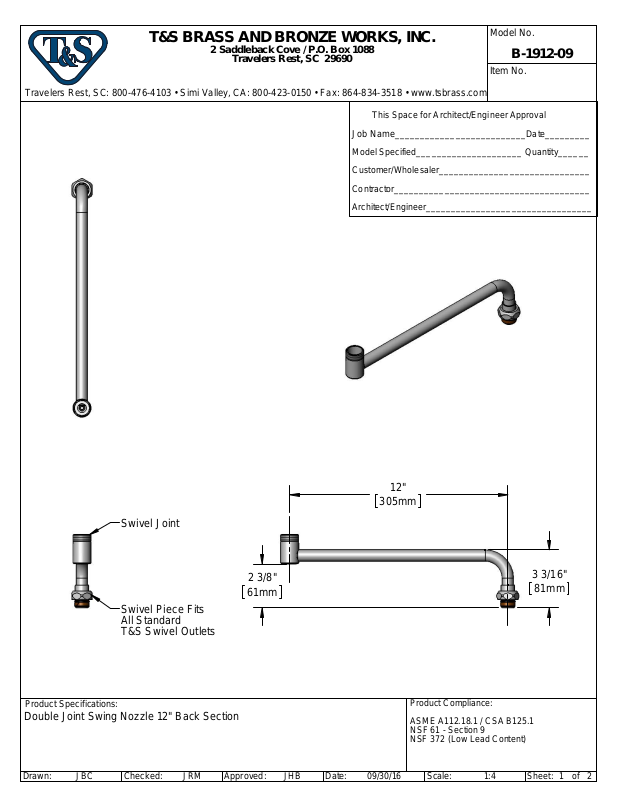

Swivel Joint
2 3/8"
61mm
Swivel Piece Fits
All Standard
T&S Swivel Outlets
Product Specifications:
Double Joint Swing Nozzle 12" Back Section
Drawn: Approved:
JBC
Checked:
JHB
12"
305mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Date: 1:4
09/30/16JRM
Scale:
3 3/16"
81mm
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1912-09
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 001074-45 O-Ring
2 011429-45 Swivel Sleeves (2)
3 009538-45 Swivel Washer
3
2
1
Product Specifications:
Double Joint Swing Nozzle 12" Back Section
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Drawn:
JBC
JRM 09/30/16 Scale:
Approved:
Date:Checked:
NTS
of
2Sheet:JHB
2
