See page 195 for exploded view
of quick connect spray (B-1421)
B-1410
See page 194 for exploded view of
quick connect spray valve (B-1420)
Quick Connect Spray Hose Assembly
1 Asm, Spray, Quick Connect B-1421
2 Asm, Spray Valve, Quick Connect B-1420
3 Asm, Hose, Stainless Steel, 44" B-0044-H
4 Washer 010476-45
5 Adapter, 1/2" Male x 3/4"-14 Male 000547-25
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1420
Valve with Quick Connection Socket
1 Screw, Handle 003199-45
2 Nut, Handle 003198-45
3 Handle, Squeeze Valve 001120-45
4Asm,Bonnet 002856-40
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1421
Quick Connect Spray
1 Screw, Spray Face 000913-45
2 Spray Face 001121-45
3 Spray Head 007861-45
4 Cup, Spray 000019-40
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1550-C
See page 11 for exploded view
of spray valve (B-0107)
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
Hose Reel with Spray Valve
1 Asm, Spray Valve B-0107
2 Asm, Handle 002881-40
B-1716-02
Spray Wash Faucet with Vacuum Breaker
1 Asm, Spray Valve 002857-40
2 Cap 000622-40
3 Spring 000894-45
4 O-Ring, Spindle 001063-45
5Washer, Bonnet 000974-45
6 Stem 000826-20
7 O-Ring, Insert 001062-45
8 Cap, Hex 000623-40
9 Adapter, 3/8" Male x 3/4"-14 Male 000545-25
10 Asm, Angled Stop 006998-40
11 Screw, Handle 000922-45
12 Index, Button, Blue/Cold 001660-45
13 Handle, Kitchen, 4-Arm 002521-45
14 Asm, Spindle, Eterna - Hot 005960-40
15 Flange 000014-40
16 Finger Hook 002309-40
17 Screw, Wall Mount 000915-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1912-07
Double Joint Front Nozzle
1 O-Ring, Swivel 001074-45
2 Sleeve, Swivel 011429-45
3Washer, Swivel 009538-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1912-09
Nozzle Assembly
1Washer, Swivel 009538-45
2 Sleeve 011429-45
3 O-Ring 001074-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1912-10

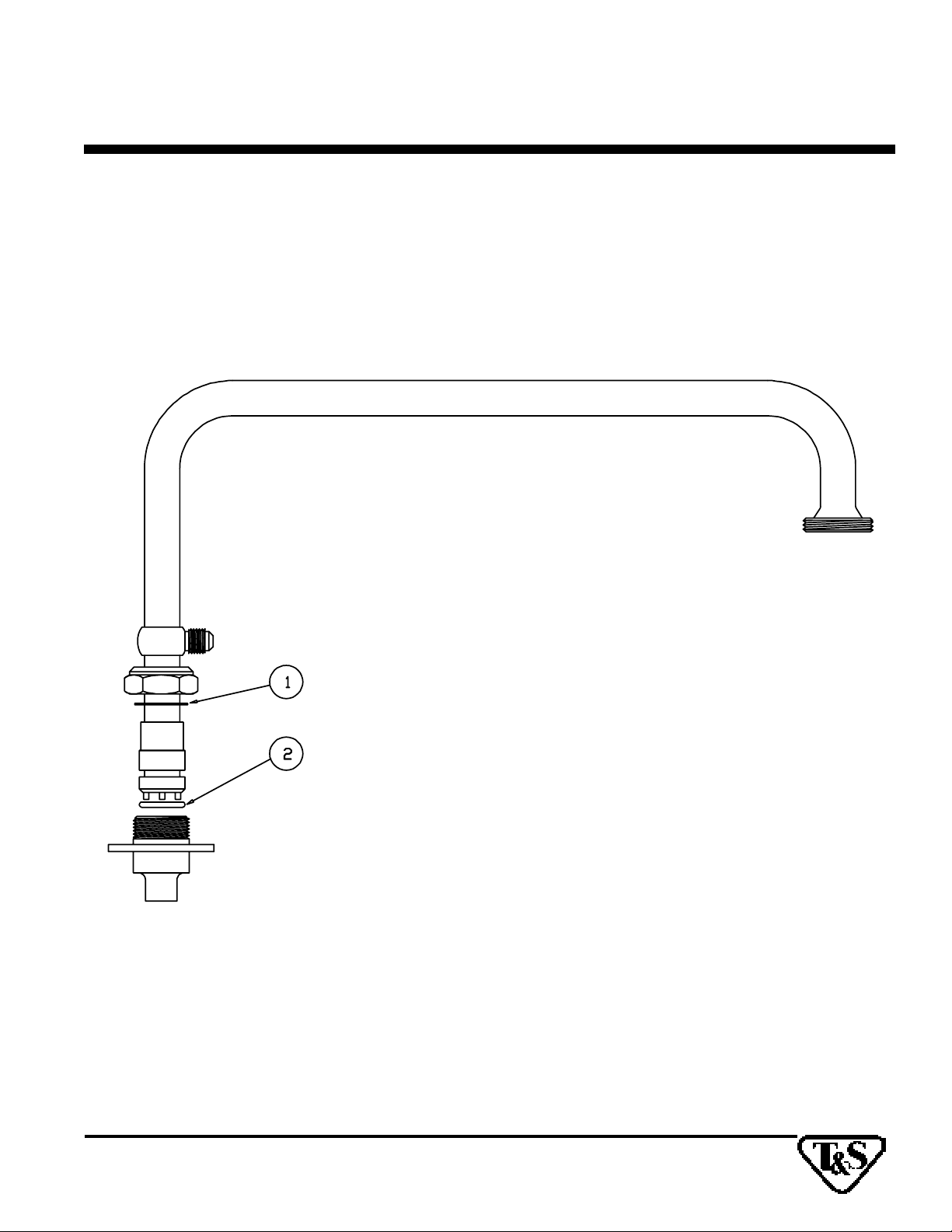

Straight Swivel Extension
1 Nipple, 3/8" X 6" 000362-40
2 Swivel Body 000585-25
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1912-14

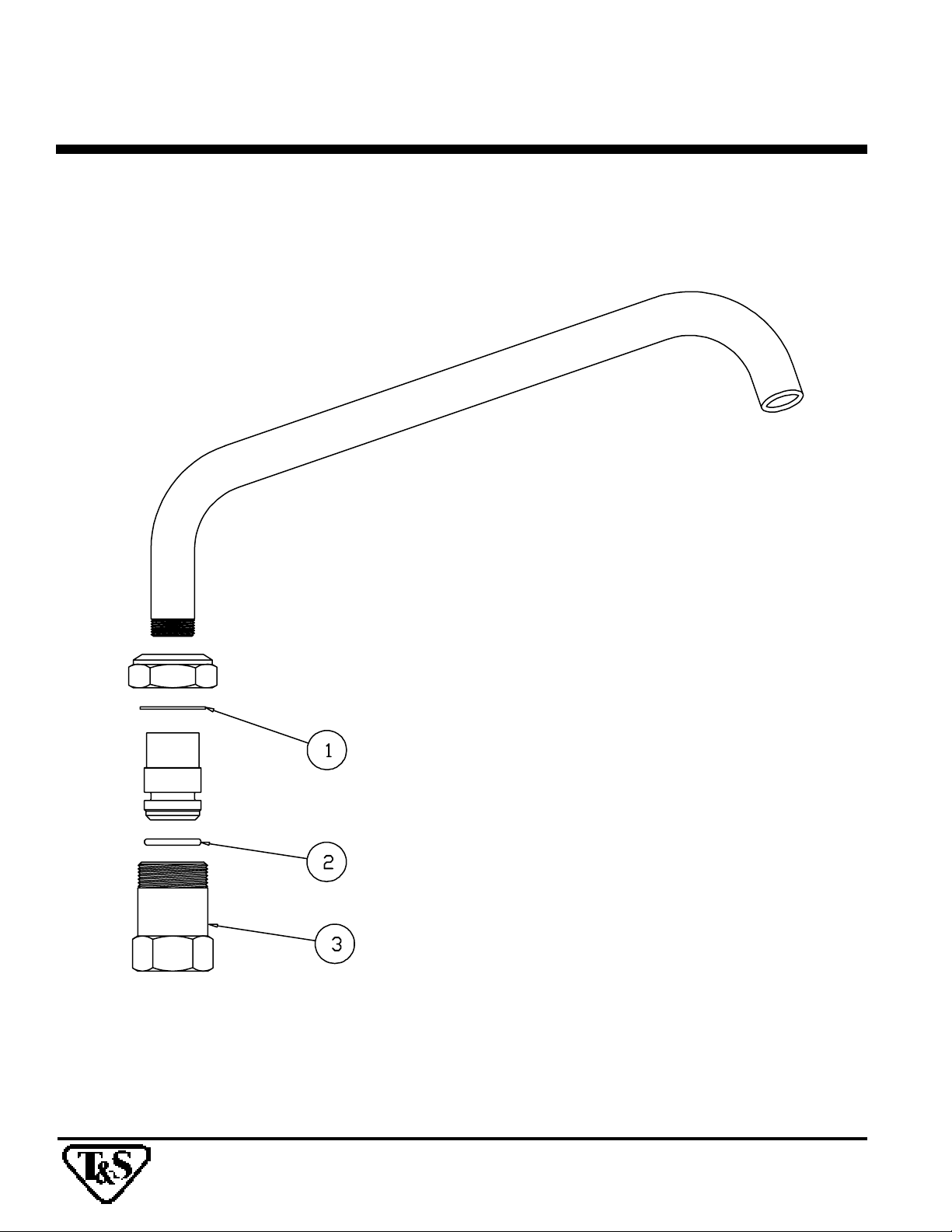

Swing Nozzle, 12"
1Washer, Swivel 009538-45
2 Sleeve 011429-45
3 O-Ring, Nozzle 001074-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-1929
Nozzle with Swivel Body
1 Swivel Washer 009538-45
2 O-Ring 001074-45
3 Body, Swivel 000585-25
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-2045

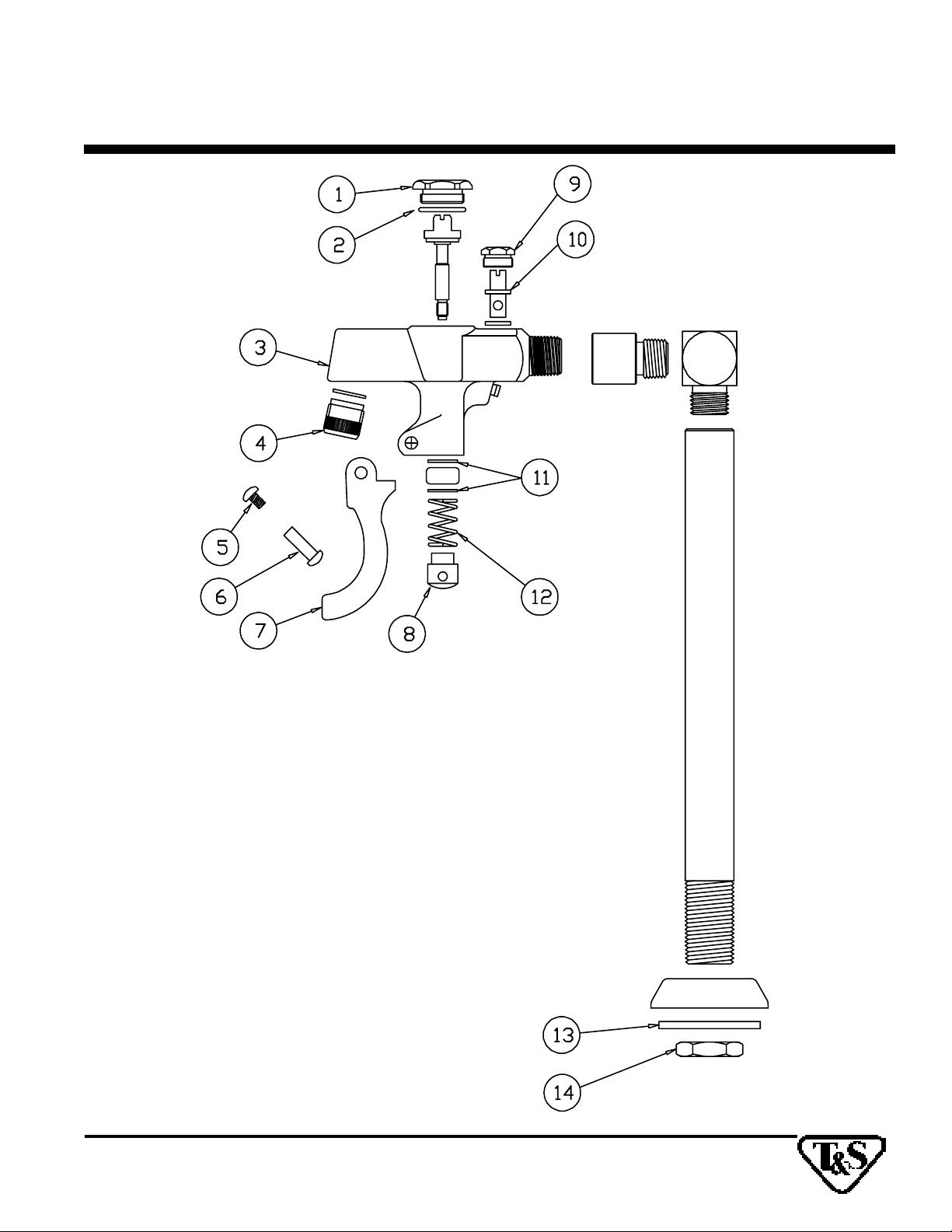

Glass Pitcher Filler
1 Hexcap 000623-40
2 O-Ring 001062-45
3 Tip, Glass Filler 003090-45
4 Screw, Handle 003199-45
5 Nut, Handle 003198-45
6 Lever Arm, Blue Lexan 001145-45
7 Pushbutton 000752-45
8 Nut, Volume Control 000714-25
9Stem, Volume Control 000834-25
10 Washer, Bonnet 000974-45
11 Packing Stem 001100-45
12 Spring 000894-45
13 Washer, Pedestal 001003-45
14 Locknut, Pedestal 002954-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-2076
Nozzle Assembly
1 O-Ring, Nozzle 001074-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-2098
Nozzle Assembly with By-Pass
1Washer, Swivel 009538-45
2 O-Ring, Swivel 001074-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
See page 11 for exploded
view of spray valve (B-
0107)
B-2180
Pre-Rinse with Add-On Faucet
1Asm, Base Faucet 002832-40
2 Asm, Coupling Flange 002893-40
3 Handle, Lever 001638-45
4 Index, Button, Blue/Cold 001660-45
Index, Button, Red/Hot 001661-45
5 Screw, Handle 000922-45
6 Asm, Spindle Eterna - Cold 002711-40
Asm, Spindle Eterna - Hot 002712-40
7 Asm, Add-On Faucet B-0155-LN
8 Handle, Lever 001638-45
9 Screw, Handle 000922-45
10 Asm, Spindle, Quarter Turn 007947-40
11 Nipple, 3/8" x 3" 000358-40
12 Asm, Swing Nozzle, 18" 065X
13 Washer 009538-45
14 Sleeve 011429-45
15 O-Ring 001074-45
16 Nipple, 3/8" x 18" 000369-40
17 Screw, Finger Hook 000916-45
18 Finger Hook 000021-40
19 Spring, Body 000821-40
20 Spring, Overhead 000888-45
21 Asm, Spray Valve B-0107
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-2183
Surgeons Scrub Nozzle Assembly
1 Locknut 002954-45
2 O-Ring, 1.114 X .070 EPDM 006579-45
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
B-2250, B-2250-B
See page 11 for exploded view
for spray valve (B-0107)
Pre-Rinse Unit
1 Spring, Overhead 000888-45
2 Spring, Body 000821-45
3 Finger Hook 000021-40
4 Screw, Finger Hook 000916-45
5 Nipple, 3/8" x 24" 000372-40
6 Asm, Bracket, Wall Mount, 6" (B-2250-BB-0109-01
7 Nipple 000346-40
8 Set Screw 001584-45
9Screw, Wall Mount 000915-45
10 Asm, Hose, Stainless Steel, 44" B-0044-H
11 Asm, Spray Valve B-0107
Model B-2250-B includes wall
mounting bracket (B-0109-01)
T&S Brass and Bronze Works, Inc. • Travelers Rest, South Carolina • 1-800-476-4103
