T&S Brass B-1433-05 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103

This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

B-0963 Continuous
Pressure Type Vacuum
Breaker w/ Integral
Check Valve

HW-4B-36
3/8" NPT x 36"
Flexible Water
Connector To
Hose Reel

Simi Valley, CA: 800-423-0150

Fax: [phone]

EPAct2005 Non-Compliant

B-7222-C01 Enclosed
Hose Reel w/ 30 Ft. Hose

REG. #A2601

ISO #9001

www.tsbrass .com

Model No.

B-1433-05

Item No.

3/8" NPT x 32"
Riser

0RK3
Control Valve

B-0109-07
Bracket (2)

EB-0107 Blue
Spray Valve

002832-40 8" c/c

1/2"

[13mm]

Typ

Faucet w/ Spring

3/8" NPT x 18"
Riser

Checks & Lever
Handles w/ Color

6 7/16"

[164mm]

Coded Indexes

1/2" NPT
Female Inlets

3/4"

[19mm]

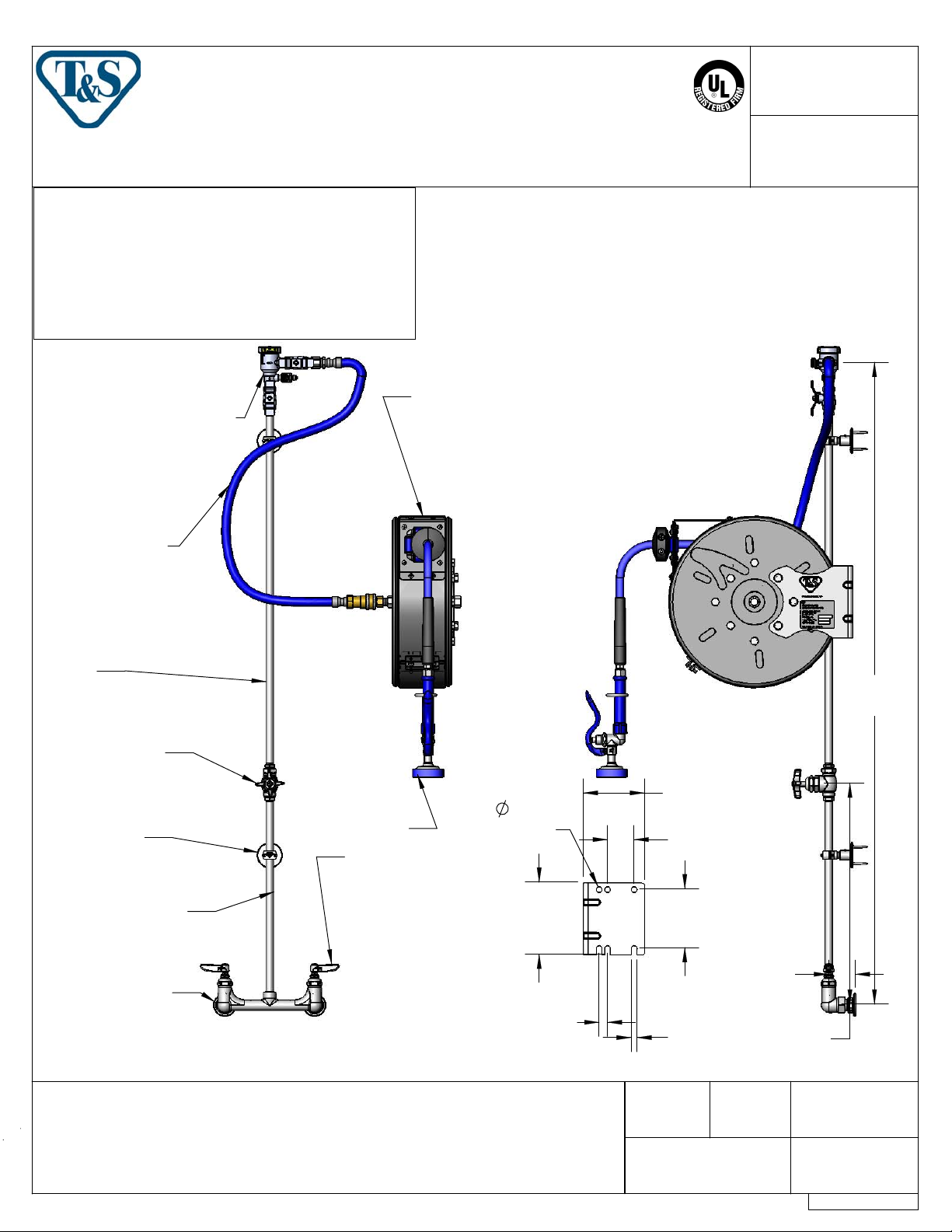

Product Specifications:

Enclosed Hose Reel w/ 30 Ft Hose, Blue Spray Valve,
Vacuum Breaker, 3/8" NPT Flex Water Connector Asm,
8" c/c Wall Mounted Faucet, & Control Valve In Riser

[139mm]

5 1/4"

[133mm]

Scale:

5 1/2"

2 3/8"

[60mm]

1/2"

[13mm]

Typ

CheckedDrawn

NTS

2 3/8"

[61mm]

19 3/4"

[502mm]

DMH

57 5/16"

[1456mm]

Approved

JHBJRM

Date:

7/15/09

Sheet:

of

1

2

T&S BRASS AND BRONZE WORKS, INC.

Travelers Rest, SC: 800-476-4103

5

4

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Simi Valley, CA: 800-423-0150

ITEM

NO.

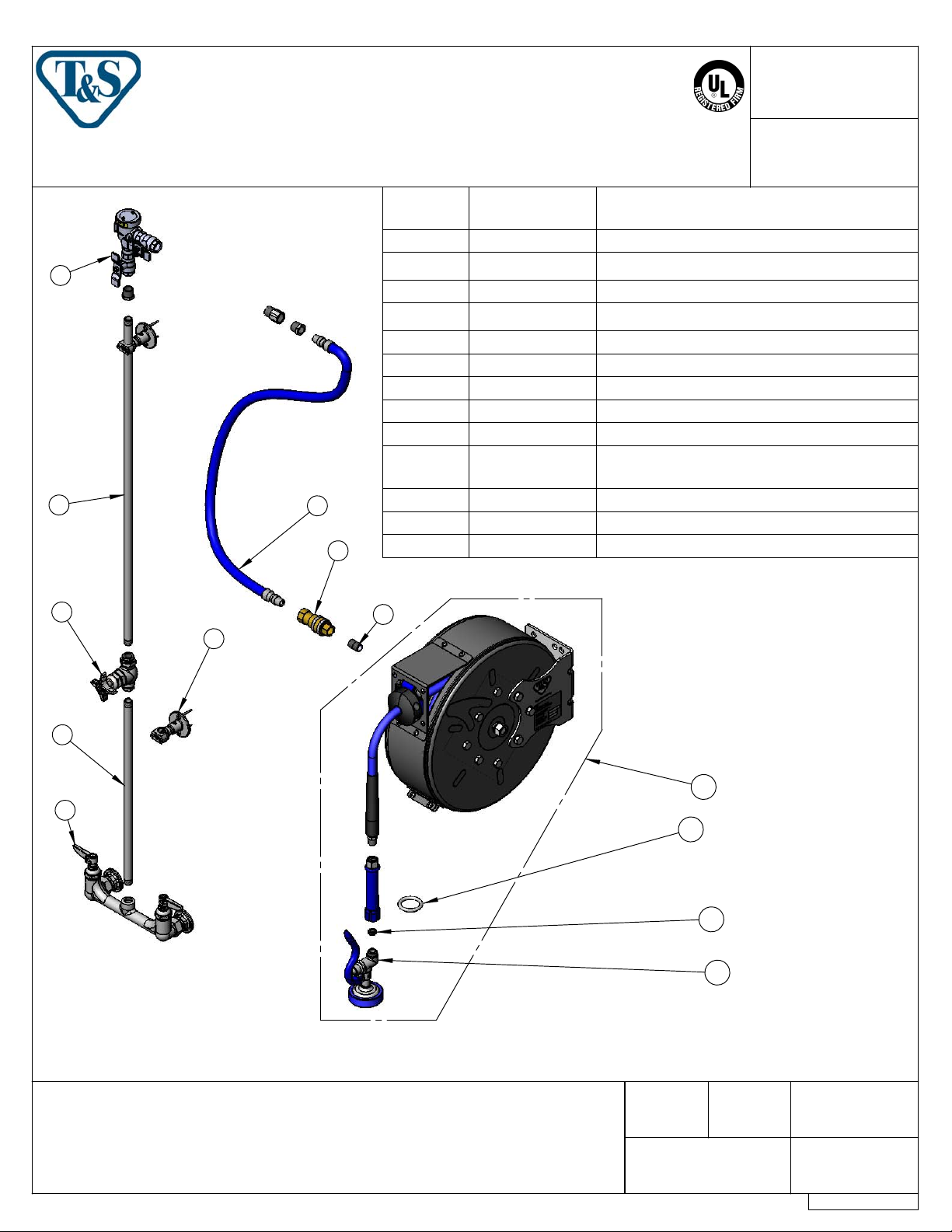

1 002832-40 B-131 Base Faucet
2 000369-40 3/8" NPT x 18" Riser
3 0RK3 Valve Control
4 000376-40 3/8" NPT x 32" Riser
5 B-0963 B-0963 VB

6 HW-2B-36 3/8" NPT x 36" Flex Water Hose
7 B-0109-07 Wall Bracket

8 AW-5B QD Water Socket/Plug 3/8" Brass
9 002535-25 3/8" Close Nipple

10 B-7222-C01

6

11 000907-45 Spray Valve Hold Down Ring
12 010476-45 #27 Washer

8

13 EB-0107 EB-0107 Spray Valve

SALES NO. DESCRIPTION

Fax: [phone]

Enclosed Coated Reel 30' OF 3/8"
Hose

REG. #A2601

ISO #9001

www.tsbrass .com

Model No.

B-1433-05

Item No.

3

7

2

1

9

10

11

12

13

Product Specifications:

Enclosed Hose Reel w/ 30 Ft Hose, Blue Spray Valve,
Vacuum Breaker, 3/8" NPT Flex Water Connector Asm,
8" c/c Wall Mounted Faucet, & Control Valve In Riser

Drawn

JRM

Scale:

Checked

DMH

NTS

Approved

JHB

Date:

7/15/09

Sheet:

of

2

2
