T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1220
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
Torx Wrench
Adjustable
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
3 3/4"
96mm
Flow Outlet
Dark Blue
Lever Arm
8"
203mm
2"
52mm
4 3/4"
[120mm]
3/8" NPT
Female Inlet

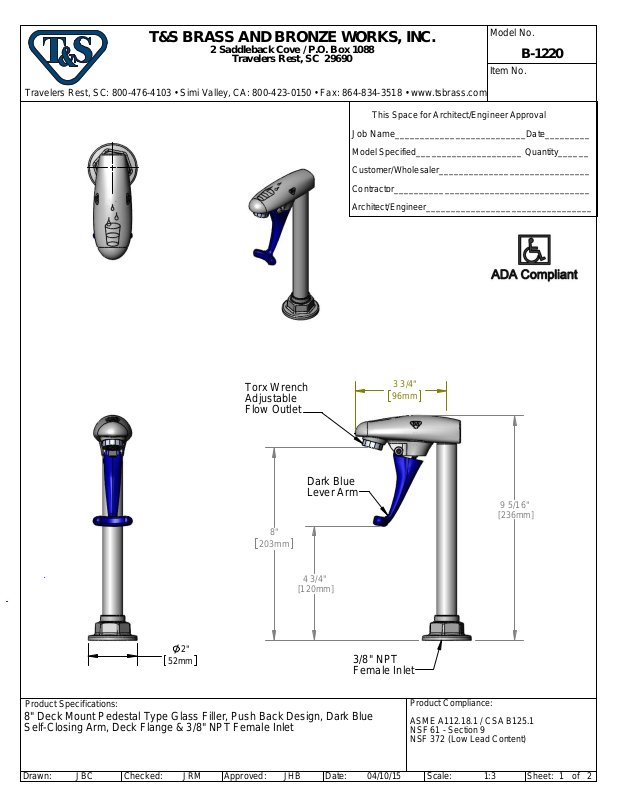

Product Specifications:
8" Deck Mount Pedestal Type Glass Filler, Push Back Design, Dark Blue
Self-Closing Arm, Deck Flange & 3/8" NPT Female Inlet
9 5/16"
[236mm]
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
JBC
Checked:
Approved:Drawn:
JHB
Date:
04/10/15JRM
Scale:
1:3
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1220
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 015588-40 Adjustable Outlet w/ Torx Wrench
2 015589-40 Valve
3 015550-45 Lever Arm Repair Kit
4 015982-40 8" Pedestal & Flange
1
2
3
4
016640-45
T-45 TORX
WRENCH
Product Specifications:
8" Deck Mount Pedestal Type Glass Filler, Push Back Design, Dark Blue
Self-Closing Arm, Deck Flange & 3/8" NPT Female Inlet
JBC
Checked:
JRM Date:
Approved:Drawn:
04/10/15 Scale:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
NTS
of
2
2Sheet:JHB
