T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1205
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

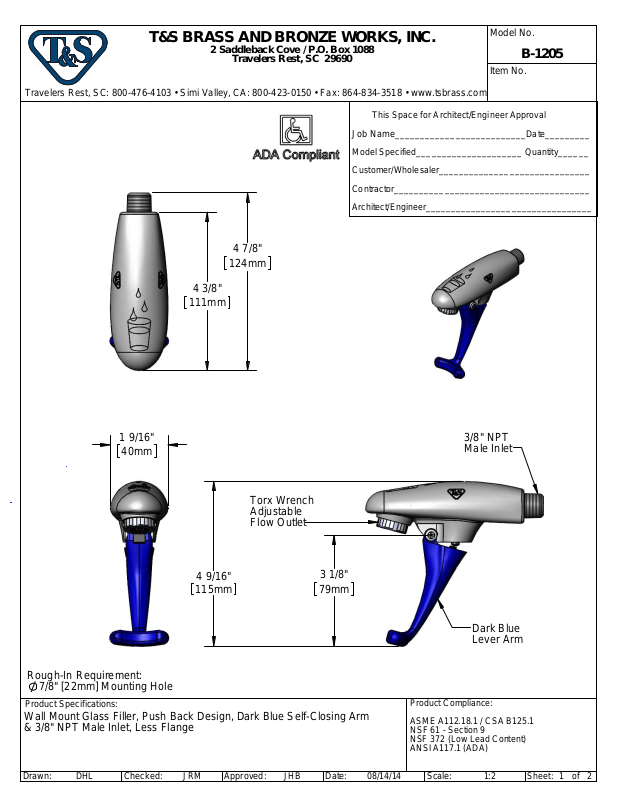

4 7/8"
124mm
4 3/8"
111mm
1 9/16"
40mm
Torx Wrench
Adjustable
Flow Outlet
4 9/16"
115mm
3 1/8"
79mm
Rough-In Requirement:
7/8" [22mm] Mounting Hole
Product Specifications:
Wall Mount Glass Filler, Push Back Design, Dark Blue Self-Closing Arm
& 3/8" NPT Male Inlet, Less Flange
3/8" NPT
Male Inlet
Dark Blue
Lever Arm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
DHL
Checked:
JRM
Approved:
JHB
08/14/14Date:
Scale:
1:2
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1205
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 015588-40 Adjustable Outlet w/ Torx Wrench
2 015589-40 Valve
3 015550-45 Lever Arm Repair Kit
21
3
Product Specifications:
Wall Mount Glass Filler, Push Back Design, Dark Blue Self-Closing Arm
& 3/8" NPT Male Inlet, Less Flange
DHL
Checked: Date:
JRM
Approved:Drawn:
08/14/14
016640-45
T-45 Torx
Wrench
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
NTS
of
2
2Sheet:JHB
