T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1146-02A-WH4
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
4"
25mm
1"
102mm
4" Wrist Action
Handles w/ Color
Coded Indexes
1/2" NPT
Male Shanks
1"
Mounting Surface
25mm
1/4"
6mm
Maximum
Thickness
B-1100-K
Elbow Kit w/
(2) 1/2" NPT Male
90 Elbows
(Sold Separately)
6 13/16"
173mm
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)
Product Specifications:
6 1/2"
165mm
12"
305mm
Swivel Gooseneck w/
2.2 GPM Aerator
Polished Chrome
Plated Escutcheon
2"
51mm
9 9/16"
243mm
4" Wall Mount Workboard Faucet w/ 4" Wrist Action Handles, Swivel
Gooseneck w/ 2.2 GPM Aerator & 1/2" NPT Male Shanks
4 3/8"
111mm
6"
151mm
(2) 150A
Optional Tailpiece & Nut
for 1/4" NPT Connection
(Included)
Drawn
KJG
Scale:
Checked
JRM
1:5
Approved
JHB
Date:
08/27/12
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1146-02A-WH4
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

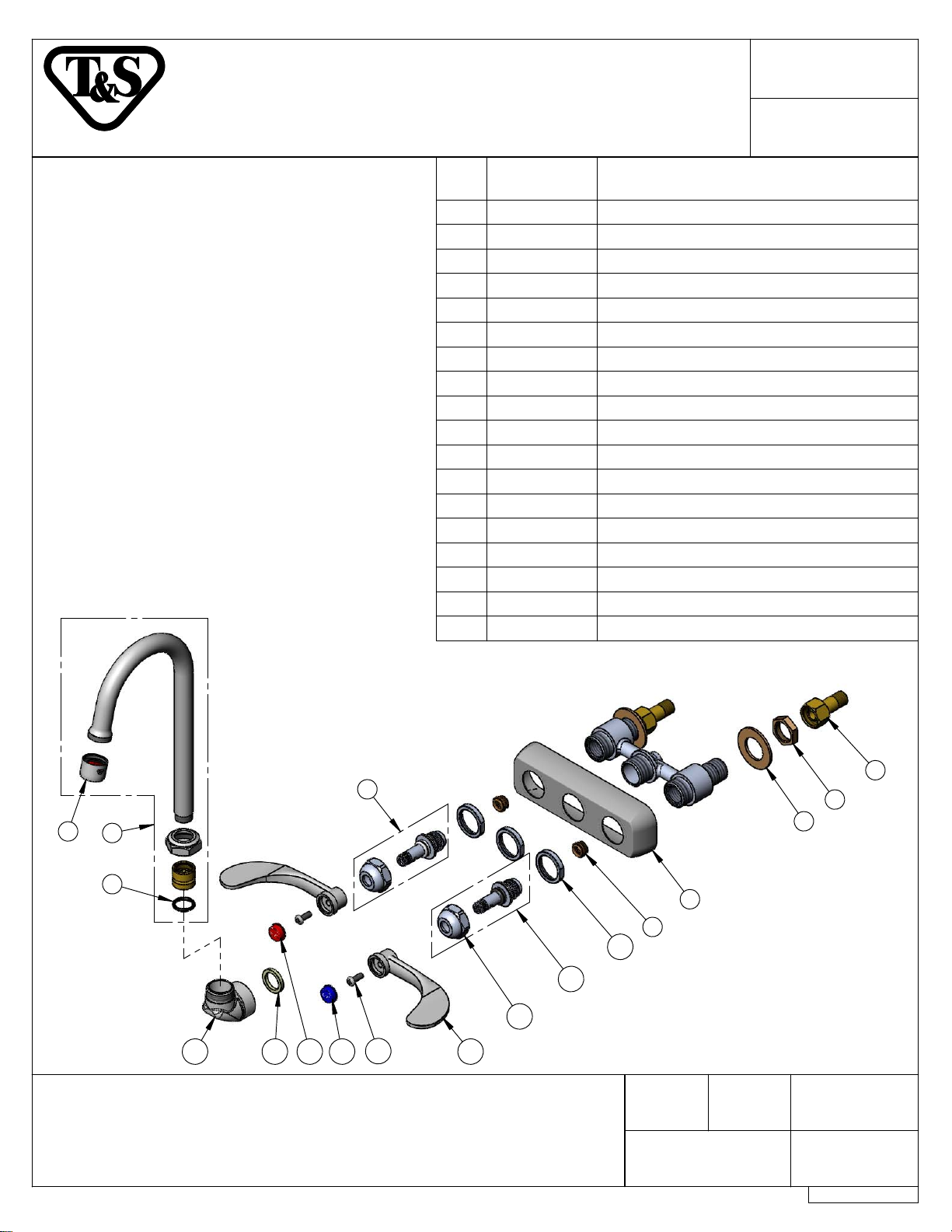

ITEM
NO.
SALES NO. DESCRIPTION
1 B-0199-01 2.2 GPM Aerator, Female
2 017907-40 Swivel Gooseneck Asm
3 001074-45 O-Ring
4 009424-40 B-2346 Spindle Assembly, LTC (Teflon)
5 150A 1/4" NPT Tailpiece & Nut
6 002954-45 Shank Lock Nut
7 000999-45 Brass Lock Washer
8 001258-40 Escutcheon
9 000763-20 Seat
10 000712-25 Escutcheon Lock Nut
11 009423-40 B-2346 Spindle Assembly, RTC (Teflon)
12 009749-25 Bonnet Nut
13 B-WH4 4" Wrist Action Handle
14 000925-45 Lab Handle Screw
15 001686-45 Blue Inde -CW
16 001194-45 Red Index-HW
17 001017-45 Washer
18 000082-40 B-1100 Knob
4
1
2
3
11
12
14
13
Product Specifications:
18
17 16 15
4" Wall Mount Workboard Faucet w/ 4" Wrist Action Handles, Swivel
Gooseneck w/ 2.2 GPM Aerator & 1/2" NPT Male Shanks
7
8
9
10
Drawn
KJG JHB
Scale:
Checked
JRM
NTS
Approved
Date:
08/27/12
5
6
2Sheet:
of
2
