T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1115-XS-F12
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
__________________________Date_________
1/2" NPSM
Extended
Male Inlets
4"
102mm
2 5/8"
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
66mm
1"
26mm
Polished Chrome
Quarter-Turn Eterna
Cartridges w/ Spring Plated Escutcheon
Checks & Lever Handles
w/ Color Coded Indexes
059X-A12
Swivel Joint
Converts to Rigid
w/ 014200-45
Lock Washer
6" Swing Nozzle w/
1.2 GPM Aerator
6"
153mm
(Included)
5 7/16"
138mm
2 5/16"
2"
59mm
51mm
6 1/2"
165mm
8 5/8"
219mm
Mounting Surface
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)

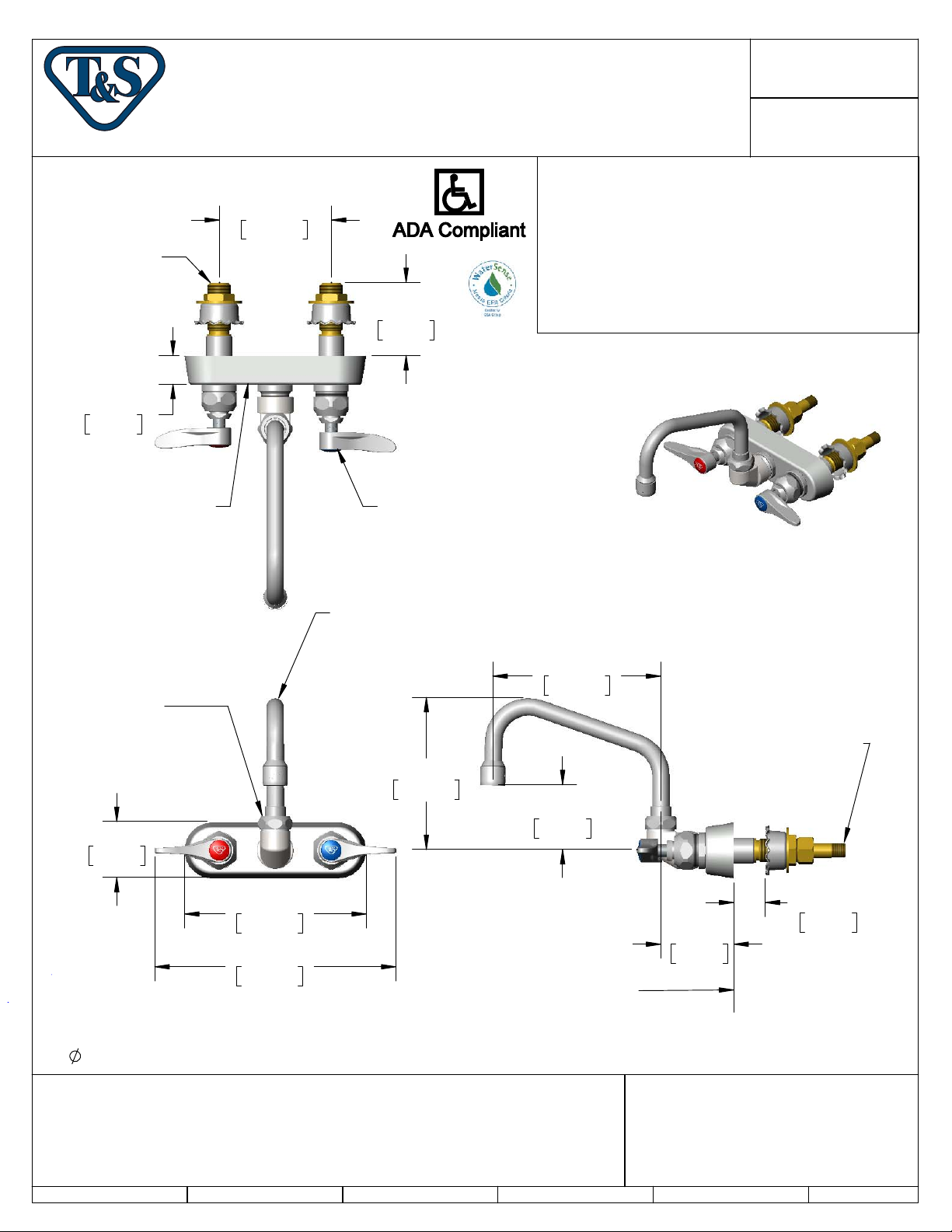

Product Specifications:
4" Wall Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 6" Swing Nozzle, 1.2 GPM Aerator & 1/2" NPSM
Extended Male Inlets
2 5/8"
66mm
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
EPA WaterSense
(2)150A
Optional
Tailpieces
& Nuts For
1/4" NPT
Connection
(Included)
1 1/8"
29mm
Maximum
Thickness
Drawn: Approved:
KJG
Checked:
JHB
Date:
10/10/19MRC
Scale:
1:4
Sheet:
of
2
1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1115-XS-F12
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 059X-A12 6" Swing Nozzle w/ 1.2 GPM Aerator
2 B-0199-01-F12 1.2 GPM Aerator, 55/64-27 UN Female
3 009538-45 Swivel Washer
4 011429-45 Swivel Sleeves (2)
5 001074-45 O-Ring
6 014200-45 Star Washer, Anti-Rotation
7 012442-40NS Quarter-Turn Eterna Cartridge w/ Spring Check, LTC
8 000082-40 B-1100 Knob
9 001040-45 Washer, 3/4 ID x 15/16 OD x 1/8 thick
10 001193-19NS Red Button Index, Press-in
11 018506-19NS Blue Button Index, Press-in
12 000925-45 Lab Handle Screw
13 001638-45NS Lever Handle (New Style)
14 012443-40NS Quarter-Turn Eterna Cartridge w/ Spring Check, RTC
15 019376-40 Escutcheon Lock Nut
16 019374-40 B-1110 Eterna Workboard Escutcheon
17 001000-45 Rosette Washer
18 000999-45 Brass Lock Washer
19 002954-45 Shank Lock Nut
20 150A 1/2" NPT Female Eccentric Flange
21 019638-40
22 019639-40
Quarter-Turn Eterna Cartridge LTC w/ Spring Check,
Handle, Red Index & Screw
Quarter-Turn Eterna Cartridge RTC w/ Spring Check,
Handle, Blue Index & Screw
2
3
4
5
7
1
21
6
14
16
15
22
13
Product Specifications:
10
9
8
12
11
4" Wall Mount Workboard Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 6" Swing Nozzle, 1.2 GPM Aerator & 1/2" NPSM
Extended Male Inlets
Drawn:
KJG
Checked:
MRC
Approved:
Date:
10/10/19 Scale:
20
19
18
17
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
EPA WaterSense
NTS
of
2
2Sheet:JHB
