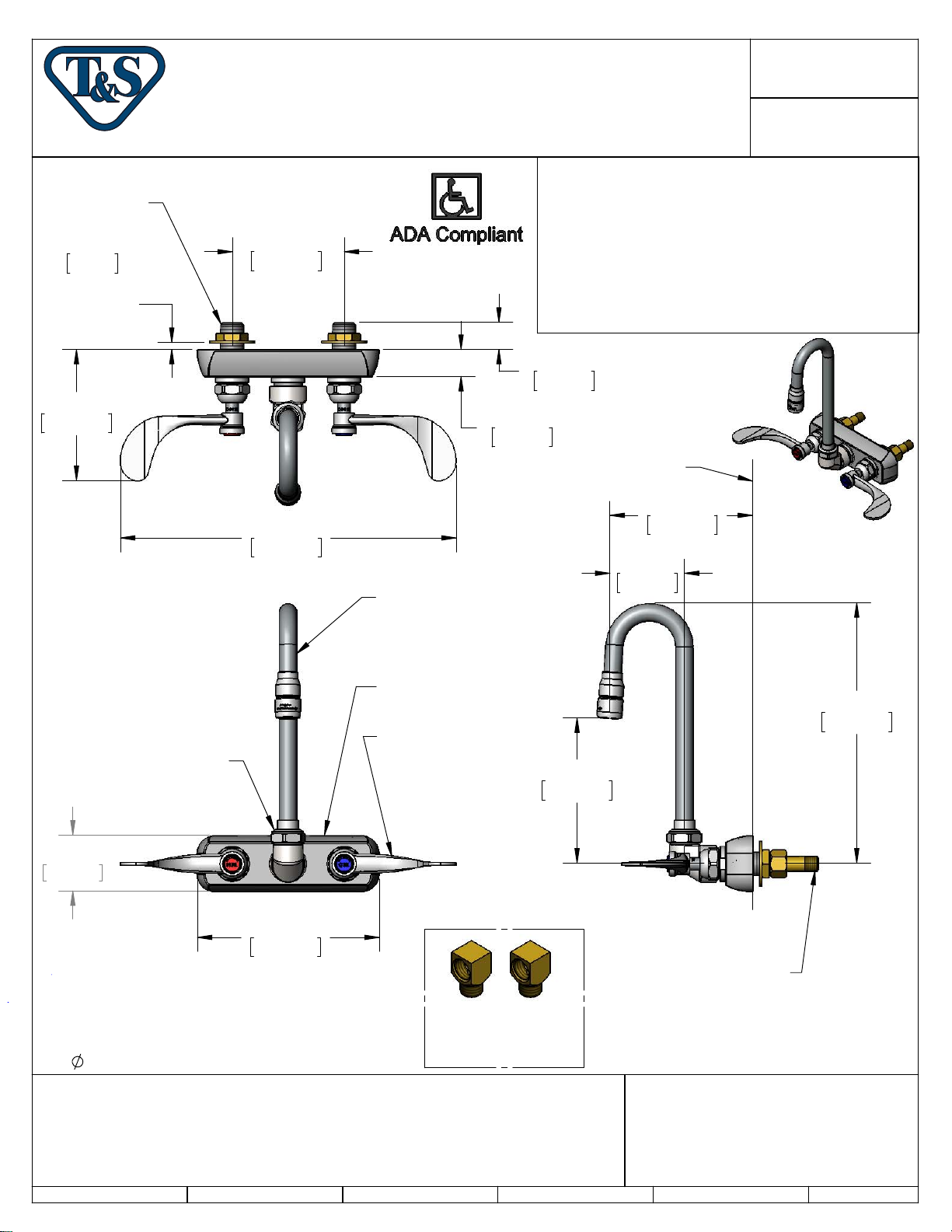

T&S Brass B-1115-132XN5Q4 Parts List

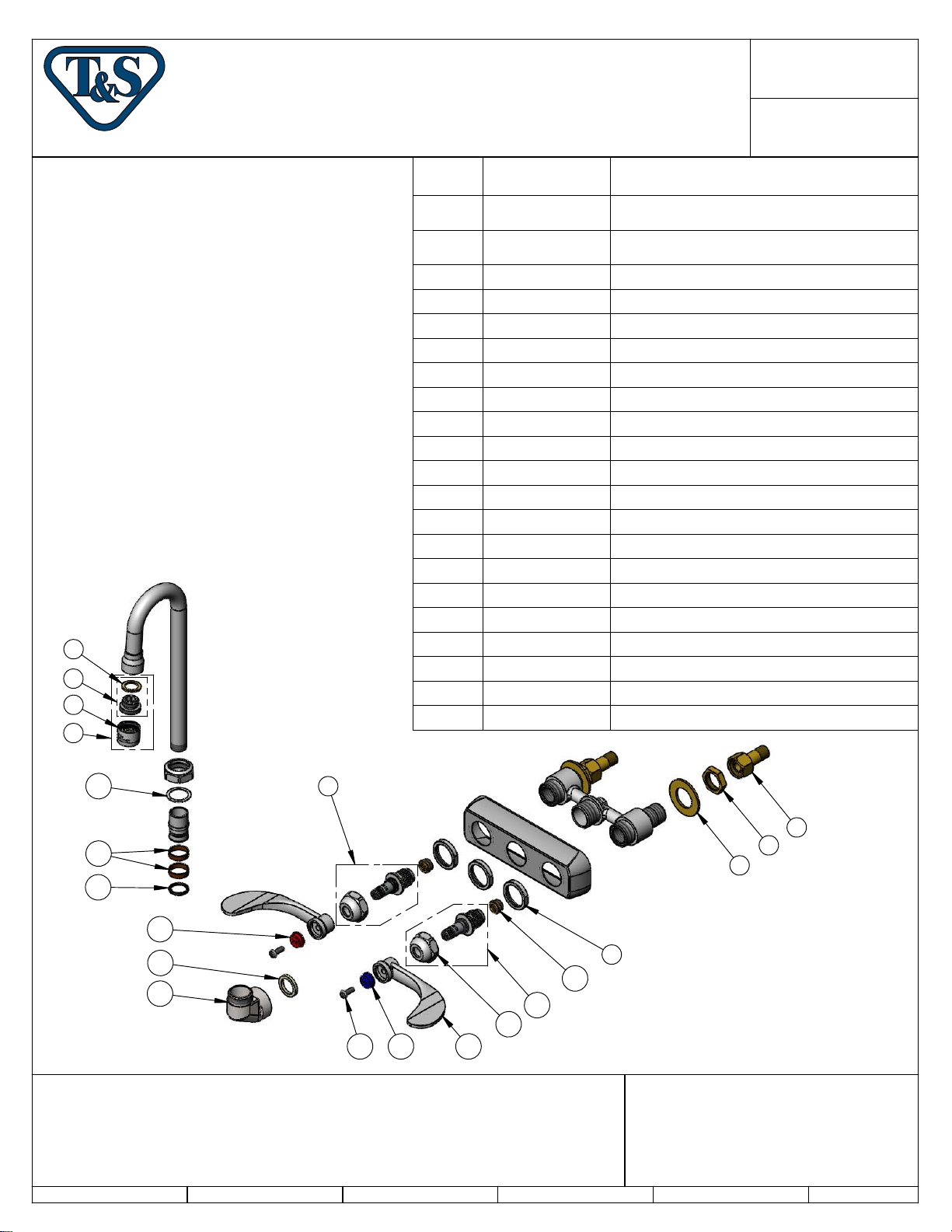

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-1115 -132XN5Q4

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

1/2" NPT
Male Inlets

1/4"

6mm

Maximum

4"

102mm

This Space for Architect/Engineer Approval

Job Name

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________

__________________________Date_________

Thickness

Architect/Engineer_________________________________

1"

25mm

4 11/16"

119mm

1"

25mm

Mounting
Surface

12"

5 1/8"

129mm

305mm

2 11/16"

68mm

3" Swivel Gooseneck w/
B-0199-02-N05

0.5 GPM Non-Aerated
Spray Device

Polished Chrome
Plated Escutcheon

Wrist Action Handles

Swivel Joint

w/ Color Coded
Indexes

5 3/16"

132mm

2"

51mm

6 1/2"

165mm

B-1100-K
Elbow Kit

Rough-In Requirement:

(Sold Separately)

(2) 1" [25mm] Mounting Holes

Product Specifications:

4" Wall Mount Workboard Mixing Faucet, 4" Wrist Action Handles, 3" Swivel
Gooseneck & 1/2" NPT Male Inlets

(2) 150A
Optional Tailpiece
and Nut for 1/4" NPT
Connection (Included)

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

9 5/16"

236mm

KJG

Checked:

DHL

Approved:Drawn:

JHB

12/03/14

Scale:

1:4Date:

of

1Sheet:

2

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-1115 -132XN5Q4

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

ITEM

NO.

1 B-0199-02-N05
2 B-0199-01-N05

SALES NO. DESCRIPTION

0.5 GPM Non-Aerated Spray Device,
3/8" NPSM Male

0.5 GPM Spray Device, 55/64-27 UN
Female

3 044A 3/8" to Aerator Adapter
4 001043-45 Washer

5 009424-40QT B-2346 1/4 Turn Spindle, LTC (Teflon)
6 150A 1/4" NPT Tailpiece & Nut
7 002954-45 Shank Lock Nut
8 000999-45 Brass Lock Washer
9 000712-25 Escutcheon Lock Nut

10 000763-20 Seat
11 009423-40QT B-2346 1/4 Turn Spindle, RTC (Teflon)

12 009749-25 Bonnet Nut
13 B-WH4 4" Wrist Action Handle
14 001686-45 Blue Index - CW
15 000925-45 Lab Handle Screw
16 000082-40 B-1100 Knob

17 001017-45 Washer
4
3

2

18 001194-45 Red Index - HW

19 001074-45 O-Ring

20 011429-45 Swivel Sleeves (2)

21 009538-45 Swivel Washer
1

21

5

20
19

18
17

10

16

11

12

13

Product Specifications:

15

14

4" Wall Mount Workboard Mixing Faucet, 4" Wrist Action Handles, 3" Swivel
Gooseneck & 1/2" NPT Male Inlets

KJG

Checked: Date:

DHL 12/03/14 Scale:

Approved:Drawn:

8

9

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)

NTS

6

7

of

2

2Sheet:JHB
